CPU no.2?

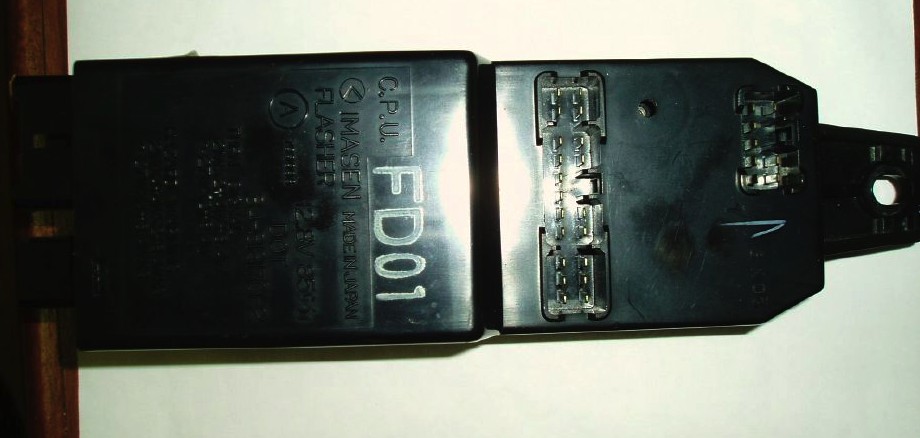

Hi there trying to find my electrical demons in my car at them moment that have come out of the blue. I have seat belt warning light flashing and beeping randomly,,, random working of power windows and the other day i had the key warning beeper goin off all day. Studying the wiring diagram i beleive that maybe CPU no.2 is to blame anyone know where this is in the car and what it looks like because i cant find it anywhere in the service manuals?
02-20-10, 05:06 PM
#3
Tiger 18,
I wouldn't delete it just yet. I think you need to change the title to reflect the problems you are having. It's threads like this where you describe a problem and hopefully wrap it up with a solution. Others might have experienced something similar and already have the answer for you...or down the road others experiencing the same problems can search and find this thread helpful in solving their problem.
My 2 cents.
Steve
I wouldn't delete it just yet. I think you need to change the title to reflect the problems you are having. It's threads like this where you describe a problem and hopefully wrap it up with a solution. Others might have experienced something similar and already have the answer for you...or down the road others experiencing the same problems can search and find this thread helpful in solving their problem.
My 2 cents.
Steve
The following 2 users liked this post by sbnrx7:
b3delta (01-18-21),
Iconoclasm (11-04-23)
The following users liked this post:
Iconoclasm (11-04-23)
02-22-10, 12:59 AM
#8
Full Member
iTrader: (7)
Join Date: Oct 2008
Location: Montreal, QC
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
There are a few post with the same issue than yours (and mine actually) and they seem all related to CPU#2. Everybody's issue seems a bit different though but has the seat belt light in common for sure...
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/cpu-2-function-693012/
My issue is that only the seat belt light goes awol. It goes on + beep if the seat belt is not on and it goes on and no beep of the seat belt is slotted in. The rest is fine.
I have not replaced ECU #2 yet
Good luck and let us know.
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/cpu-2-function-693012/
My issue is that only the seat belt light goes awol. It goes on + beep if the seat belt is not on and it goes on and no beep of the seat belt is slotted in. The rest is fine.
I have not replaced ECU #2 yet
Good luck and let us know.
03-22-13, 03:23 PM
#9
2SoonJr
iTrader: (8)
Join Date: Mar 2008
Location: OrangeCounty-Santa Ana
Posts: 525
Likes: 0
Received 5 Likes
on
4 Posts
experience something similar.
if the alarm trips from CPU #2 will it keep my car turning on?
the link below is mine and have listed all everything that could be
https://www.rx7club.com/3rd-generati...start-1030102/
if the alarm trips from CPU #2 will it keep my car turning on?
the link below is mine and have listed all everything that could be
https://www.rx7club.com/3rd-generati...start-1030102/
03-22-13, 08:23 PM
#11
I have successfully repaired my CPU #2 by replacing the capacitors on the board. Very similar to the common method of repairing the speedo/odometer.
If I remember correctly, my symptoms were a constantly flashing seatbelt light, and also the factory alarm would not arm properly.
If I remember correctly, my symptoms were a constantly flashing seatbelt light, and also the factory alarm would not arm properly.
03-23-13, 02:59 PM
#13
Was easy to repair with basic soldering skills needed. You remove the case, inspect the board and write down all the specifications of the capacitors. There may be 7 or 8 different "sizes". I like to order mine from "Digikey" company on the Internet. I replaced them all even though I could only see damage to a couple of them. The capacitors are cheap so I always buy extras.
The following users liked this post:
cneedelman (07-10-23)
03-24-13, 05:08 AM
#15
I know I still have an extra CPU #2 at work in my toolbox that has not been repaired yet. I've also been down the used part route without success. I know that I still have the extra capacitors from when I repaired my other one. So on Monday ill try to get some photos and a list of the capacitors if that would help.
The following users liked this post:
spanner (11-04-23)
03-26-13, 05:39 PM
#16
2SoonJr
iTrader: (8)
Join Date: Mar 2008
Location: OrangeCounty-Santa Ana
Posts: 525
Likes: 0
Received 5 Likes
on
4 Posts
@ Andre The Giant dude that would be awesome if you can make a write up on that.
and by the way, when you opened up CPU#2, can you totally tell from a visual check that the capacitors were gone bad. or did you have to check it with some sort of multimeter???
and by the way, when you opened up CPU#2, can you totally tell from a visual check that the capacitors were gone bad. or did you have to check it with some sort of multimeter???
03-26-13, 09:43 PM
#17
I could see some electrolyte had leaked out a tiiiny bit on one capacitor lead/ the circuit. But since they literally cost pennies I just replaced all of them. I checked at work today and I still have all my extra capacitors, and the order sheet with part numbers. I opened up my extra CPU#2 and realized that I actually did replace all the caps already and forgot about it.
Side note: when I was first diagnosing my nonstop flashing seatbelt light, I plugged in the CPU with the case removed (bare circuit board) and went to town with my DMM attempting to trace the circuit and narrow down the failed component. Anyone with electrical experience knows this is a terrible idea, including me, but I did it anyways and ended up pulling too much current through something. It wasn't happy, whatever it was, and so in a tiny puff of smoke it burned up. I never did figure out what I damaged. But by that time I already had an extra used CPU with different symptoms so I put that one in. Moral of the story is don't try to use a multi meter to test components on a circuit board, especially while its powered up.
I totally forgot the stuff at work today so ill try to remember to bring it home tomorrow and take pictures etc...
On a positive note, I consider this repair a lot easier than re-soldering the caps on the speedometer/odometer which I've also completed.
Side note: when I was first diagnosing my nonstop flashing seatbelt light, I plugged in the CPU with the case removed (bare circuit board) and went to town with my DMM attempting to trace the circuit and narrow down the failed component. Anyone with electrical experience knows this is a terrible idea, including me, but I did it anyways and ended up pulling too much current through something. It wasn't happy, whatever it was, and so in a tiny puff of smoke it burned up. I never did figure out what I damaged. But by that time I already had an extra used CPU with different symptoms so I put that one in. Moral of the story is don't try to use a multi meter to test components on a circuit board, especially while its powered up.
I totally forgot the stuff at work today so ill try to remember to bring it home tomorrow and take pictures etc...
On a positive note, I consider this repair a lot easier than re-soldering the caps on the speedometer/odometer which I've also completed.
03-29-13, 06:50 AM
#18
Here's the first thread I found that helped me the most with repairing my CPU#2
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/blinking-seat-belt-warning-light-fix-940893/

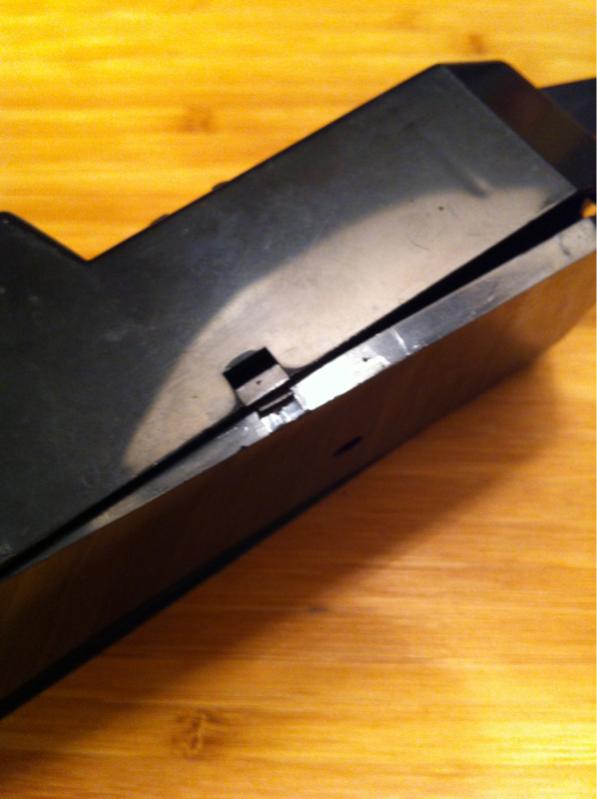

Remove the single screw in the center of the back cover.
Start by prying the top edge of the back cover outward.
Then pry each side to release the tabs.
The back cover should come off now by sliding it upward.
The circuit board should be loose and should come straight out the back of the case. If it is stuck, tap the case on a table and the board should fall right out. You don't want to pry on the board and crack it, or bend the pins for the connector.

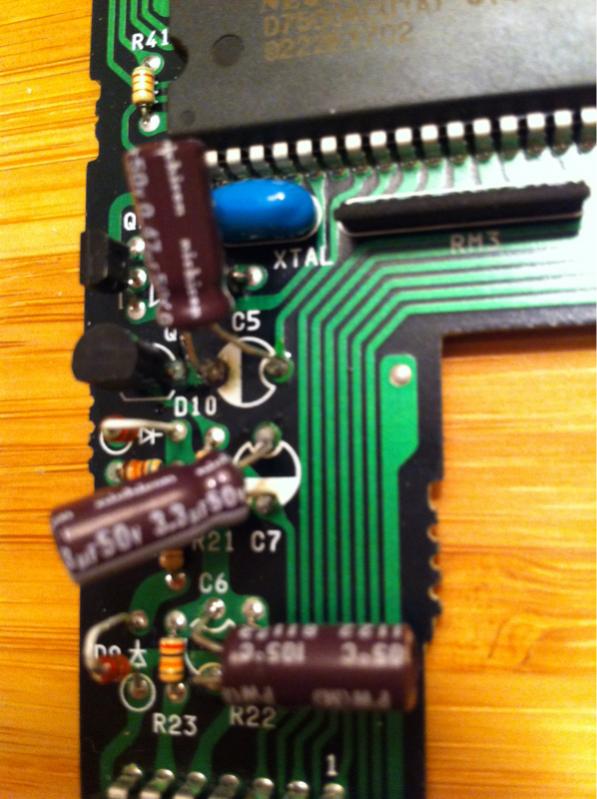

Take a look at your CPU board. The components are labeled. You should inspect capacitors: C1 C2 C3 C5 C6 C7
I found leakage from C5 and C2
Note: my capacitors appear different because they are already replaced.
Here is a list of the values of the replacement capacitors I used, and my Digikey invoice with part numbers. I used all Nichicon caps of the same type for consistency.
C1: 47uF 16V
C2: 10uF 16v
C3: 220uF 16v
C5: 0.47 uF 50v
C6: 22uF 16v
C7: 3.3uF 50v
Practice de-soldering and removing the caps on some old electronics, and then practice re-installing them. The new caps must be installed without overheating them with the soldering iron.
5 out of the 6 caps are polarity sensitive positions. The capacitors have a vertical stripe on the side to designate polarity. It lines up with the printed mark on the board.
Also you can see in one image above that the new caps are folded over to a horizontal position, this is to get them to fit back into the housing. They are larger than the caps they replace.
One of the key points for success is to make sure that you solder the cap lead to BOTH SIDES of the board. There is a contact pad on the top, and the bottom, the bottoms are easier to solder than the top joints.
(More info to come later)
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/blinking-seat-belt-warning-light-fix-940893/
Remove the single screw in the center of the back cover.
Start by prying the top edge of the back cover outward.
Then pry each side to release the tabs.
The back cover should come off now by sliding it upward.
The circuit board should be loose and should come straight out the back of the case. If it is stuck, tap the case on a table and the board should fall right out. You don't want to pry on the board and crack it, or bend the pins for the connector.
Take a look at your CPU board. The components are labeled. You should inspect capacitors: C1 C2 C3 C5 C6 C7
I found leakage from C5 and C2
Note: my capacitors appear different because they are already replaced.
Here is a list of the values of the replacement capacitors I used, and my Digikey invoice with part numbers. I used all Nichicon caps of the same type for consistency.
C1: 47uF 16V
C2: 10uF 16v
C3: 220uF 16v
C5: 0.47 uF 50v
C6: 22uF 16v
C7: 3.3uF 50v
Practice de-soldering and removing the caps on some old electronics, and then practice re-installing them. The new caps must be installed without overheating them with the soldering iron.
5 out of the 6 caps are polarity sensitive positions. The capacitors have a vertical stripe on the side to designate polarity. It lines up with the printed mark on the board.
Also you can see in one image above that the new caps are folded over to a horizontal position, this is to get them to fit back into the housing. They are larger than the caps they replace.
One of the key points for success is to make sure that you solder the cap lead to BOTH SIDES of the board. There is a contact pad on the top, and the bottom, the bottoms are easier to solder than the top joints.
(More info to come later)
Last edited by Andre The Giant; 03-29-13 at 07:01 AM.
09-23-13, 12:45 PM
#20
Hi sir
Join Date: Feb 2001
Location: Modesto/Rancho Cordova CA
Posts: 443
Likes: 0
Received 2 Likes
on
2 Posts
Can the car be run without the #2 box in it. I did some research several years ago while the car was sitting and now I can't remember. Mine is going crazy and I just want to pull everything I possibly can out to prevent future failure.
08-07-14, 06:12 PM
#25
A little bump here:

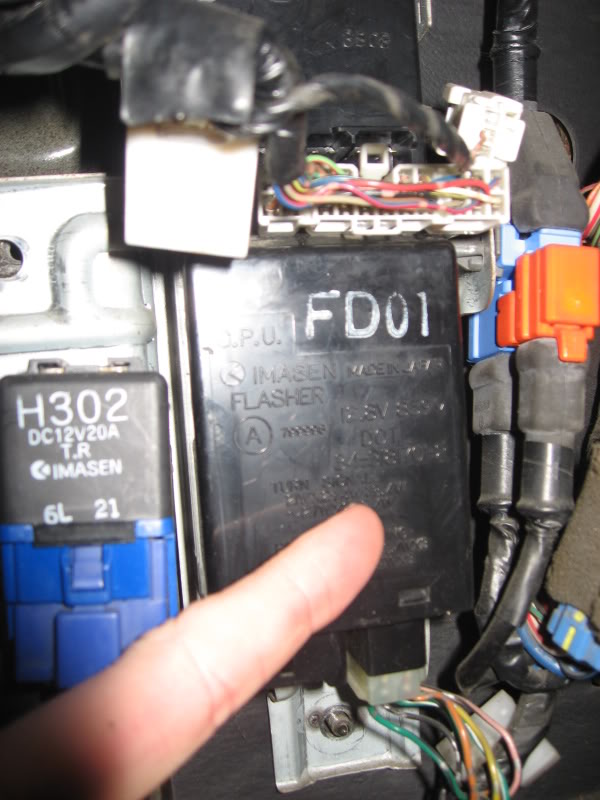

On a manual transmission model, it appears that of the two plugs at the bottom of the CPU, only the right-hand one gets something plugged into it. The left-hand one does not. (Behind the guy's finger in this picture) I'm asking because I took my CPU2 out a while ago and I don't remember.
Is that correct?
Thanks,
David
On a manual transmission model, it appears that of the two plugs at the bottom of the CPU, only the right-hand one gets something plugged into it. The left-hand one does not. (Behind the guy's finger in this picture) I'm asking because I took my CPU2 out a while ago and I don't remember.
Is that correct?
Thanks,
David
