Couple questions, again.
What would happen if you put the leading plugs in the trailing position, or vice versa, or just mixed them all up all together? Also, I hear people say something about the Poor Man's Blow Off Valve which makes the sound louder? How is this done?
07-31-04, 03:34 PM
#2
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Mixing up the plug wires would change the timing on the plugs firing. That could have potentially have very destructive results.....If you are talking about running different plug types, you can run four "trailing type" plugs for all four positions. Many of us with lightly to moderately modded cars do this.
You can vent the stock BOV hose instead of running it back to the stock intake box. This will be much louder, but be prepared for a nice oil mist to be blown all over the inside of your engine bay.
You can vent the stock BOV hose instead of running it back to the stock intake box. This will be much louder, but be prepared for a nice oil mist to be blown all over the inside of your engine bay.
07-31-04, 03:57 PM
#4
Originally Posted by dexmex88
Also, I hear people say something about the Poor Man's Blow Off Valve which makes the sound louder? How is this done?
07-31-04, 04:25 PM
#6
My FD Sucks
Thread Starter
Join Date: Mar 2004
Location: Virginia
Posts: 607
Likes: 0
Received 0 Likes
on
0 Posts

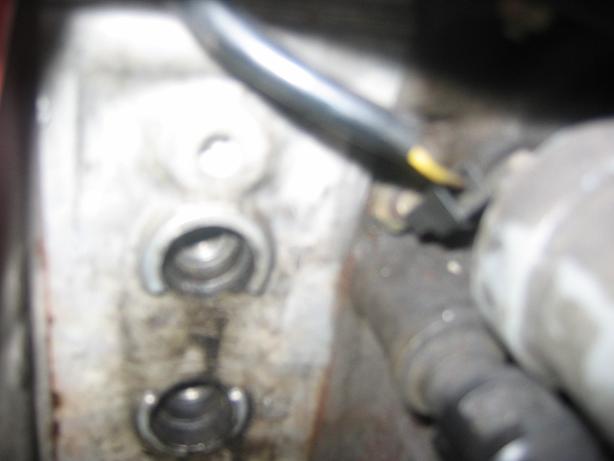

This is so messed up, I have been driving the car like this? I think they are in wrong. The 2 leading plug wires are in the middle correct? The 2 trailing plug wires are on the left and right correct? Well one of my middle wires(Leading?) was hooked to one of the trailing plugs(right side) and one of the trailing wires(left) was hooked to one of the leading plugs(also left). Aren't the wires and plugs supposed to match or are my wires on there wrong? The picture of the plug holes is the right side near the firewall, both were trailing.
07-31-04, 05:02 PM
#7
The Factory Service Manual. Learn it, live it, love it. Download it or buy it. http://www.iluvmyrx7.com
Page G-20.
Page G-20.
Last edited by dgeesaman; 07-31-04 at 05:05 PM.
Trending Topics
07-31-04, 05:05 PM
#8
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Why do people **** with their cars without knowing what they are doing?
There are three ignition coils: two trailing and one leading. The leading is in the center and has the two plug wires together until it splits out and feeds both leading plugs (the bottom two). Each trailing coil has a single wire running to a single trailing plug (the top two).
From the factory, the car uses two 7 heat range plugs in the leading position, and two 9 heat range plugs in the trailing position. Lightly to moderately modded cars typically run 9 heat range plugs for all four.
If your plugs/wires are not as described above, fix it immediately. People have blown engines because of improper wire routing.
There are three ignition coils: two trailing and one leading. The leading is in the center and has the two plug wires together until it splits out and feeds both leading plugs (the bottom two). Each trailing coil has a single wire running to a single trailing plug (the top two).
From the factory, the car uses two 7 heat range plugs in the leading position, and two 9 heat range plugs in the trailing position. Lightly to moderately modded cars typically run 9 heat range plugs for all four.
If your plugs/wires are not as described above, fix it immediately. People have blown engines because of improper wire routing.
07-31-04, 05:09 PM
#9
Full Member
Join Date: Sep 2003
Location: va
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts
Ok think of it like this, L..eading is the L..ower hole T...railing is the T..op hole. This would definatly be the reason your car stalls. The trailing plugs fire 15-20 degrees after the leading plugs, so if the the wires were swapped, it would put the spark at the wrong place at the wrong time. Also, the trailing plugs are buried in a cavity in the rotor housing, which messes up flame propagation, as well as other things. Make sure you have L1 coil run to the L1 plug, L2 to L2, T1 to T1, etc. I've heard the leading fires at the same time on both rotors, but it's always good to have them where ther supposed to go.
-E
-E
07-31-04, 05:12 PM
#10
My FD Sucks
Thread Starter
Join Date: Mar 2004
Location: Virginia
Posts: 607
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rynberg
Why do people **** with their cars without knowing what they are doing?
There are three ignition coils: two trailing and one leading. The leading is in the center and has the two plug wires together until it splits out and feeds both leading plugs (the bottom two). Each trailing coil has a single wire running to a single trailing plug (the top two).
From the factory, the car uses two 7 heat range plugs in the leading position, and two 9 heat range plugs in the trailing position. Lightly to moderately modded cars typically run 9 heat range plugs for all four.
If your plugs/wires are not as described above, fix it immediately. People have blown engines because of improper wire routing.
There are three ignition coils: two trailing and one leading. The leading is in the center and has the two plug wires together until it splits out and feeds both leading plugs (the bottom two). Each trailing coil has a single wire running to a single trailing plug (the top two).
From the factory, the car uses two 7 heat range plugs in the leading position, and two 9 heat range plugs in the trailing position. Lightly to moderately modded cars typically run 9 heat range plugs for all four.
If your plugs/wires are not as described above, fix it immediately. People have blown engines because of improper wire routing.
I am sorry I am not almighty like you and know everything. I was just trying to make sure everything was right. By what you just said, the top 2 are supposed to be the trailing and the bottom the leading, but that isn't the way mine are. My 2 right holes both have trailing plugs in them, and the 2 left holes both have leading plugs. So I have one leading in the top, and one trailing, one leading in the bottom and one trailing. So would that make my car run messed up, because it has been.
07-31-04, 05:15 PM
#11
My FD Sucks
Thread Starter
Join Date: Mar 2004
Location: Virginia
Posts: 607
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by anobii
Ok think of it like this, L..eading is the L..ower hole T...railing is the T..op hole. This would definatly be the reason your car stalls. The trailing plugs fire 15-20 degrees after the leading plugs, so if the the wires were swapped, it would put the spark at the wrong place at the wrong time. Also, the trailing plugs are buried in a cavity in the rotor housing, which messes up flame propagation, as well as other things. Make sure you have L1 coil run to the L1 plug, L2 to L2, T1 to T1, etc. I've heard the leading fires at the same time on both rotors, but it's always good to have them where ther supposed to go.
-E
-E
07-31-04, 05:17 PM
#12
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by dexmex88
I am sorry I am not almighty like you and know everything. I was just trying to make sure everything was right.
You are messing with something very important to the running of the engine and it appears that you spent zero time learning about it first. That's a bad move.
Originally Posted by dexmex88
By what you just said, the top 2 are supposed to be the trailing and the bottom the leading, but that isn't the way mine are. My 2 right holes both have trailing plugs in them, and the 2 left holes both have leading plugs. So I have one leading in the top, and one trailing, one leading in the bottom and one trailing. So would that make my car run messed up, because it has been.
