ClockSpring Troubleshoot

Hey fellow members. How do I check the clockspring to see if the horn is operating from the steering wheel? My cruise control is fine but the horn quit working and I traced all connectivity from horn relay to 15A fuse....

And how do I know if I need a new clockspring?
golson is offline
Old 03-12-14, 02:11 PM
  #2
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,155
Liked 264 Times in 226 Posts
The clock springs are pretty hardy. There's 1 wire for the horn, it just shorts to ground to activate the horn.

Could be the horn relay.

Dale
DaleClark is offline
Old 03-12-14, 02:31 PM
  #3
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2013
Location: Huntsville, Al
Posts: 171
Likes: 0
Liked 0 Times in 0 Posts
I changed the horn relay and the horn still does not work. Could it be the ground on the horn behind the bumper?
golson is offline
Old 03-12-14, 02:34 PM
  #4
Boilermaker!
iTrader: (113)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,376
Liked 17 Times in 16 Posts
Yeah first check the horn relay, if that checked out OK then do a continuously check between the horn button up to the relay trigger, make sure you get a short circuit with the button pressed.

Also check the horn, make sure they work, just jump the relay and see if the horn works.
ZE Power MX6 is offline
Old 03-12-14, 03:12 PM
  #5
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2013
Location: Huntsville, Al
Posts: 171
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ZE Power MX6 View Post
Yeah first check the horn relay, if that checked out OK then do a continuously check between the horn button up to the relay trigger, make sure you get a short circuit with the button pressed.

Also check the horn, make sure they work, just jump the relay and see if the horn works.

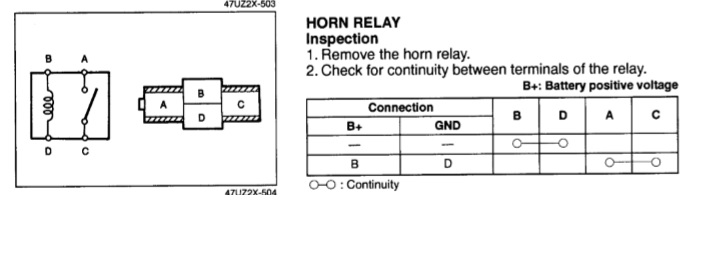

Ok this might be a dumb question. But the two horn buttons on the steering wheel have one wire from both. Are they grounds or does it matter which one I use. And when you jump the relay. Do you just use the pin from the horn relay connector? On the picture do I check from horn switch to "A" on diagram?
Attached Thumbnails ClockSpring Troubleshoot-horn%2520relay.jpg
golson is offline
Old 03-12-14, 04:30 PM
  #6
Boilermaker!
iTrader: (113)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,376
Liked 17 Times in 16 Posts
Jump A and C with a wire, your horns should go off, if not then start with your horns.

The 2 horn buttons both go to the same wire, so doesn't matter which one you use to do the continuous test.
ZE Power MX6 is offline
Old 03-13-14, 07:53 AM
  #7
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2013
Location: Huntsville, Al
Posts: 171
Likes: 0
Liked 0 Times in 0 Posts
thanks
golson is offline
Old 03-13-14, 08:24 AM
  #8
Non Runner
iTrader: (2)

Ceylon's Avatar

Join Date: Mar 2008
Location: Somerset, England
Posts: 1,936
Liked 24 Times in 23 Posts
The horn runs all over the front & dash harness. Its also in the diagnostic box for testing purposes. If you've removed your airbag ecu, this will also kill the horns as it passes through.

This may help:



Good luck with it .
