bypassing TB "coolant"
it's probably been discussed before but ayways. as far as I know, the coolant line through the throttle body is used to keep the butterfly from freezing in winter. So it's actually a throttle body heater.
Is it just me or raising the IAT isnt something that we want? assuming I only drive in summer so I could care less about butterflies freezing, would bypassing the TB help lower the intake air temp at all? it's a pretty cheap and easy mod
Is it just me or raising the IAT isnt something that we want? assuming I only drive in summer so I could care less about butterflies freezing, would bypassing the TB help lower the intake air temp at all? it's a pretty cheap and easy mod
#4
Old Rotary Dog
Not if you end up having to pull the throttle body or UIM off a few times - say to get to vac hoses, fuel injectors, or those annoying coils. It''s nice not having to worry about spilling coolant everywhere. On my next engine, I'm having those two nipples that feed the line removed and capped.
#7
rotorhead
iTrader: (3)
Time out.
When you remove the coolant hose, you disable the mechanical cold idle system! Think about that before you pull it out. I have actually reversed a TB coolant hose delete, I got so annoyed by the unstable idle and keeping my foot on the gas. Another minor issue is that if you ask somebody (family member, a carwash place, wherever) to start your car up they will have no idea what's going on if it stalls or runs rough.

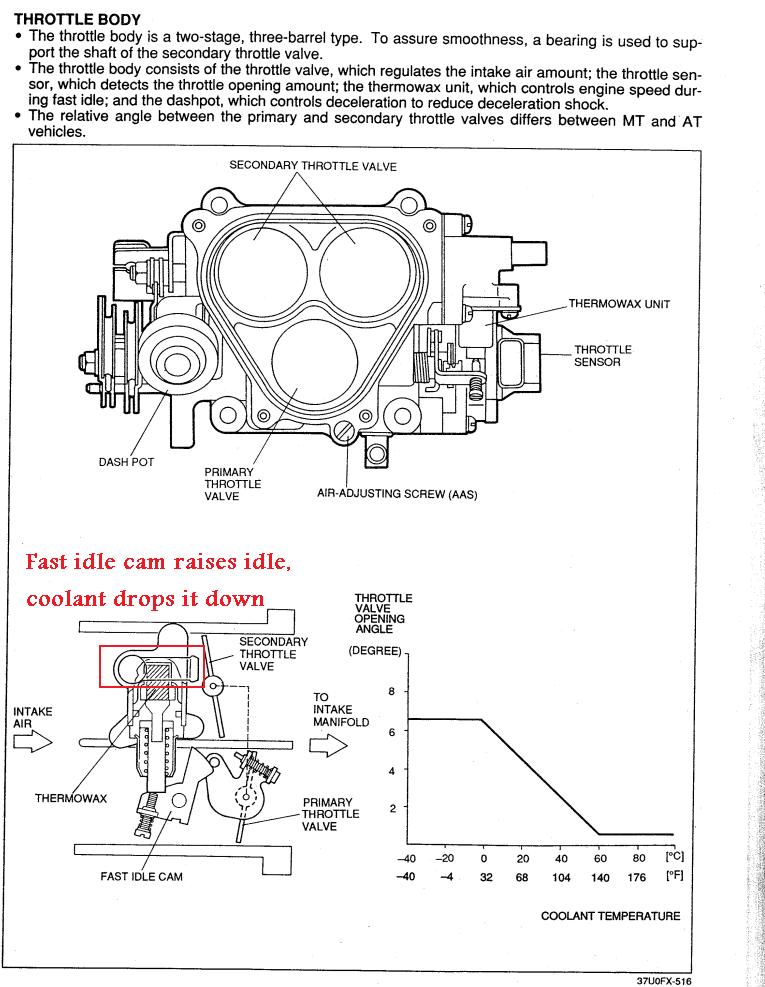

Service highlights document page F-19:
One coolant hose isn't going to conduct a ton of heat into the intake charge. Heat has to conduct from the coolant to the hose and to the TB itself, and then from the TB metal to the intake air. Who detonates because of the factory coolant hose? I run that hose on my single turbo setup and a friend's stock twin setup with no knock or any other problem. And 5 hp? What are you driving, a Civic? You can gain 5 hp just from the ambient temperature dropping a few degrees. Check uncorrected dyno numbers on different days and you'll see what I mean.
Some of those other cars run a similar coolant hose to maintain a relatively fixed temperature to a drive-by-wire actuator (Rx-8 for example) or ISC valve (2nd gen Rx-7, which also has a mechanical fast idle system using TB coolant). These systems use the coolant to maintain longevity of those various air-related solenoid valves and for driveability in more extreme weather conditions. They often have stepper motors controlling idle air and deleting the TB hose doesn't make a difference, like on LSX engines that are not drive-by-wire.
Is one hose that big of a deal? Yeah it's annoying, but when you figure out the trick it's not so bad to remove/install.
When you remove the coolant hose, you disable the mechanical cold idle system! Think about that before you pull it out. I have actually reversed a TB coolant hose delete, I got so annoyed by the unstable idle and keeping my foot on the gas. Another minor issue is that if you ask somebody (family member, a carwash place, wherever) to start your car up they will have no idea what's going on if it stalls or runs rough.
Service highlights document page F-19:
One coolant hose isn't going to conduct a ton of heat into the intake charge. Heat has to conduct from the coolant to the hose and to the TB itself, and then from the TB metal to the intake air. Who detonates because of the factory coolant hose? I run that hose on my single turbo setup and a friend's stock twin setup with no knock or any other problem. And 5 hp? What are you driving, a Civic? You can gain 5 hp just from the ambient temperature dropping a few degrees. Check uncorrected dyno numbers on different days and you'll see what I mean.
Some of those other cars run a similar coolant hose to maintain a relatively fixed temperature to a drive-by-wire actuator (Rx-8 for example) or ISC valve (2nd gen Rx-7, which also has a mechanical fast idle system using TB coolant). These systems use the coolant to maintain longevity of those various air-related solenoid valves and for driveability in more extreme weather conditions. They often have stepper motors controlling idle air and deleting the TB hose doesn't make a difference, like on LSX engines that are not drive-by-wire.
Is one hose that big of a deal? Yeah it's annoying, but when you figure out the trick it's not so bad to remove/install.
Trending Topics
#8
Original Gangster/Rotary!
iTrader: (213)
When I cold start my FD, the idle sits right at 1000 rpm and isn't noticeably rougher than usual. Same thing for the customer cars that we delete the coolant thru the tb. I think it comes down to tuning, as well as having a fresh throttle cable and having all of the tb settings adjusted correctly.
I should say we delete it on most single turbo performance builds, for near stock cars or conservative/older owners we tend to leave the system as-is.
I should say we delete it on most single turbo performance builds, for near stock cars or conservative/older owners we tend to leave the system as-is.
#10
Senior Member
Thread Starter
iTrader: (3)
Join Date: Aug 2007
Location: Monteral, QC
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the answers, I should hav checked robinette before asking
#11
Original Gangster/Rotary!
iTrader: (213)
Yes, we retain ISC on all cars. That is one of the few things I don't like to delete . warm idle speed varies, typically with the street port they're anywhere from 900 to 1000.
#12
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
I already have the fast idle cam removed. I want to do the coolant bypass. If I remove the warm up plunger, is some kind of bop needed to seal it off? Do you just cap off or the gold colored hose barb, or is there a way to actually remove it? What about down on the bock, is that just capped?
The big hole on the bottom left of the single place is for idle, correct? It looks like a passageway that continues on through the extension manifold.
The big hole on the bottom left of the single place is for idle, correct? It looks like a passageway that continues on through the extension manifold.
#13
Turd Ferguson
iTrader: (1)
Join Date: Jul 2006
Location: Sherman Oaks, California
Posts: 2,047
Likes: 0
Received 1 Like
on
1 Post
I think typically people just run it back to the waterpump .. so it'll still come out the back of the block and will connect back up to the 90degree tube on the waterpump housing.
You don't need a BOP for the TB.
You don't need a BOP for the TB.
