3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

Which is the Best Single Turbo Upgrade for the FD3S?

Old 02-16-13, 10:38 AM
  #76
F'n Newbie...
iTrader: (5)

fendamonky's Avatar

Join Date: Sep 2006
Location: Nokesville, Va
Posts: 3,254
Liked 43 Times in 31 Posts
Nice =) I'm honestly leaning towards a TD61 or TDX61 to replace my PT6265 when it dies.
fendamonky is offline
Old 02-16-13, 03:37 PM
  #77
Rotary Enthusiast
iTrader: (19)

Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,168
Likes: 0
Liked 5 Times in 4 Posts
It's hard to say what the best is. For the street I like smaller turbo or some of the medium ones.

For track and racing, perhaps a larger turbo would be better for lower EGT's.....and for more power.

I like the smaller to medium T04e, EFR7670, GT35R, GT3574R sized ones.
lOOkatme is offline
Old 02-16-13, 04:39 PM
  #78
Full Member
iTrader: (1)

VICEdOUT's Avatar

Join Date: Oct 2012
Location: ORLANDO, FL
Posts: 111
Likes: 0
Liked 0 Times in 0 Posts
Post up pics of your work progress, engine bay, etc. mate and enjoy your Fosters!
VICEdOUT is offline
Old 02-16-13, 05:10 PM
  #79
Polishing Fiend
iTrader: (139)

CrispyRX7's Avatar

Join Date: Apr 2001
Location: MD
Posts: 3,295
Liked 5 Times in 5 Posts
I dunno if the OP is even still listening at this point but...

I'll start by saying I'm no turbo expert...period. And can only provide my own data point. My own research and that of a good friend of mine(see here: http://www.reganrotaryracing.com/fel...oselection.htm ) indicated the best *compromise* for my purpose and my goals was the GT35R. And that was: decent power, lower boost, reliability at the track, and ease of maintenance.

For this the GT35R fit the bill. With my other mods: it makes 422rwhp at 15psi on 93 fuel with no WI. I can pound it at the track lap after lap (or at least i used to since I haven't been for a while), and it's plenty fast on the street...wait scratch that...scary fast... bordering on uncontrollable on the street unless it's pointed in a straight line. Anything approaching 500rwhp for street can, and even on the track, comes with significant downsides that IMO outweigh the BIG power numbers, unless you ar just into bragging rights.

if I could do anything differently today it would only be to switch to a T4 divided manifold. Other than that I wouldn't touch a thing.

Refer to my website if you would like more details.

FWIW,
Crispy
CrispyRX7 is offline
Old 02-16-13, 05:35 PM
  #80
Work in Progress

AUS-FD3S's Avatar

Join Date: Feb 2013
Location: Australia
Posts: 129
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by VICEdOUT View Post
Post up pics of your work progress, engine bay, etc. mate and enjoy your Fosters!
Did you seriously just say that.... Fosters..... im insulted.

I will post some pics for sure gonna take a while though for 2 reasons, im a slow worker plus the kit is probably gonna take 5/6 weeks to makes its way to me
AUS-FD3S is offline
Old 02-16-13, 05:43 PM
  #81
Work in Progress

AUS-FD3S's Avatar

Join Date: Feb 2013
Location: Australia
Posts: 129
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by CrispyRX7 View Post
I dunno if the OP is even still listening at this point but...

I'll start by saying I'm no turbo expert...period. And can only provide my own data point. My own research and that of a good friend of mine(see here: GENE FELBER ARCHIVE: SINGLE TURBO SELECTION ) indicated the best *compromise* for my purpose and my goals was the GT35R. And that was: decent power, lower boost, reliability at the track, and ease of maintenance.

For this the GT35R fit the bill. With my other mods: it makes 422rwhp at 15psi on 93 fuel with no WI. I can pound it at the track lap after lap (or at least i used to since I haven't been for a while), and it's plenty fast on the street...wait scratch that...scary fast... bordering on uncontrollable on the street unless it's pointed in a straight line. Anything approaching 500rwhp for street can, and even on the track, comes with significant downsides that IMO outweigh the BIG power numbers, unless you ar just into bragging rights.

if I could do anything differently today it would only be to switch to a T4 divided manifold. Other than that I wouldn't touch a thing.

Refer to my website if you would like more details.

FWIW,
Crispy
Thank you for the info

If it wasn't for the TDX16 i was going to go with the GT35, however for me it is a no brainer between the two, with out meaning to sound rude i cant see why the GT35 is an option? i looked at the spool comparison and there i not much between the two at most 50 rpm, the TDX16 makes more power at less boost and can be setup all the way to 28PSI if you wanted to. The way i see it its a GT35 with more range for growing in the future.
AUS-FD3S is offline
Old 02-16-13, 07:27 PM
  #82
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,867
Liked 21 Times in 19 Posts
The TDX61R also offers lower exhaust manifold back pressure and EGTs compared to a GT35R since it has a larger turbine wheel. This is important for engine and turbo longevity on the track.
Turblown is online now
Old 02-17-13, 04:11 AM
  #83
Work in Progress

AUS-FD3S's Avatar

Join Date: Feb 2013
Location: Australia
Posts: 129
Likes: 0
Liked 0 Times in 0 Posts
Just going through the motion of buying the kit from Turblown, so i started stripping the car today, lucky thing i did! just found a coolant hose from the AST to filler neck nearly worn all the way through, the dump valve had been rubbing on it would have been messy if i didnt spot it, picture below.

Also Turblown sell Turbosmart wastegates, to be honest i only knew of Tial being any good, but i guess i will find out.

Also another side step from the actual thread, sorry, also excuse the stupid question, can you look at the pictures below and confirm if i have twin oil coolers? or is one for power steering fluid?

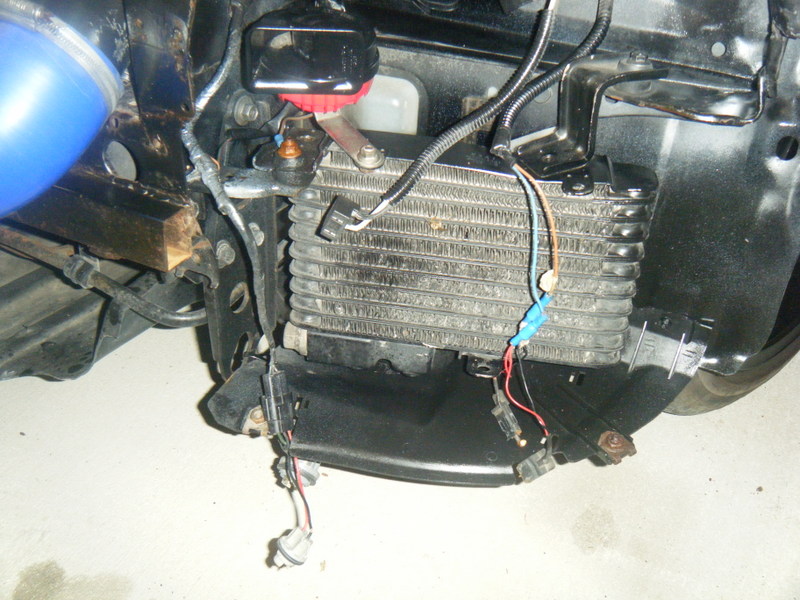

Attached Thumbnails Which is the Best Single Turbo Upgrade for the FD3S?-dscf3168.jpg   Which is the Best Single Turbo Upgrade for the FD3S?-dscf3152.jpg   Which is the Best Single Turbo Upgrade for the FD3S?-dscf3153.jpg
AUS-FD3S is offline
Old 02-17-13, 05:56 AM
  #84
Full Member
iTrader: (19)

Join Date: Apr 2010
Location: Kissimmee
Posts: 84
Likes: 0
Liked 0 Times in 0 Posts
Yes, those are twin oil coolers. The power steering cooler is the small tube thing in front of the AC condenser.
jmm8904 is offline
Old 02-17-13, 06:16 AM
  #85
Work in Progress

AUS-FD3S's Avatar

Join Date: Feb 2013
Location: Australia
Posts: 129
Likes: 0
Liked 0 Times in 0 Posts
Sweet, is that after market thee pipe work looks old. i was told its a 1993 model.
AUS-FD3S is offline
Old 02-17-13, 08:08 AM
  #86
All out Track Freak!
iTrader: (260)

Fritz Flynn's Avatar

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,243
Liked 89 Times in 76 Posts
Originally Posted by AUS-FD3S View Post
Just going through the motion of buying the kit from Turblown, so i started stripping the car today, lucky thing i did! just found a coolant hose from the AST to filler neck nearly worn all the way through, the dump valve had been rubbing on it would have been messy if i didnt spot it, picture below.

Also Turblown sell Turbosmart wastegates, to be honest i only knew of Tial being any good, but i guess i will find out.

Also another side step from the actual thread, sorry, also excuse the stupid question, can you look at the pictures below and confirm if i have twin oil coolers? or is one for power steering fluid?
I like HKS which haven't given me problems. I've lost some diaphragms on the tial wastegates so I wouldn't choose to use one again unless it came with a kit I bought or something. I've heard the turbosmart are equal to Tial but cost less. Again though if I'm putting a kit together I'd just buy an old school HKS 50mm race waste gate which may cost 200 more but it's worth it (handles heat well).
Fritz Flynn is online now
Old 02-18-13, 07:08 AM
  #87
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,581
Liked 70 Times in 57 Posts
The Tial MVR 44 has water cooling capability to prevent diaphragm damage.

Banzai-Racing is offline
Old 02-18-13, 07:37 AM
  #88
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Likes: 0
Liked 1 Time in 1 Post
I water cooled mine and so far no problems, but I only have 1 track day on them so far. I had changed the wastegate springs a few months ago and the diaphragms still looked like new, FWIW.
RENESISFD is offline
Old 02-18-13, 08:02 AM
  #89
All out Track Freak!
iTrader: (260)

Fritz Flynn's Avatar

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,243
Liked 89 Times in 76 Posts
Originally Posted by Banzai-Racing View Post
The Tial MVR 44 has water cooling capability to prevent diaphragm damage.

Smart move hopefully ASPEC will start using these for their kits

Originally Posted by RENESISFD View Post
I water cooled mine and so far no problems, but I only have 1 track day on them so far. I had changed the wastegate springs a few months ago and the diaphragms still looked like new, FWIW.
Did you run hard or soft lines and where did you tee in or is your turbo just oil cooled? Also sounds like you are using two wastegates? I seriously doubt you'll have any issues at all with your setup. Mine wasn't water cooled and it sits about 2mm away from the DP (aspec kit).
Fritz Flynn is online now
Old 02-18-13, 08:30 AM
  #90
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Likes: 0
Liked 1 Time in 1 Post
Hard lines. Stainless steel 316l.

Originally Posted by RENESISFD View Post
I also finished the turbo and wastegate coolant line routing, you can also see in the pic my oil turbo feed line.






RENESISFD is offline
Old 02-18-13, 09:03 AM
  #91
All out Track Freak!
iTrader: (260)

Fritz Flynn's Avatar

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,243
Liked 89 Times in 76 Posts
Originally Posted by RENESISFD View Post
Hard lines. Stainless steel 316l.
Well OKIE DOKIE then one of those rubic cube builds that always leave me . You probably have more time and money in that engine bay then I have in my entire car. Nice work

Just saw your build thread...........and JUST WOW!!!!! can't wait to see that thing at the track sometime.
Fritz Flynn is online now
Old 02-18-13, 09:21 AM
  #92
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Likes: 0
Liked 1 Time in 1 Post
Thanks, there is more than 40 hours of work for me to make those hardlines.

I really want to get to VIR this year.
RENESISFD is offline
Old 02-18-13, 09:22 AM
  #93
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,988
Liked 123 Times in 102 Posts
A-Spec has been offering the MVR and MVS for some time now, although the Precision gates are the 'standard' offering.

Fritz, surprised you didn't know about Wastegate Johnny. He's a bit of a track celebrity around these parts, especially with the Ukrainian contingent
GoodfellaFD3S is offline
Old 02-18-13, 09:32 AM
  #94
All out Track Freak!
iTrader: (260)

Fritz Flynn's Avatar

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,243
Liked 89 Times in 76 Posts
Originally Posted by GoodfellaFD3S View Post
A-Spec has been offering the MVR and MVS for some time now, although the Precision gates are the 'standard' offering.

Fritz, surprised you didn't know about Wastegate Johnny. He's a bit of a track celebrity around these parts, especially with the Ukrainian contingent
Sean keeping me in the dark again (bastard) I have no idea what I'm doing I've never even heard of a water cooled wastegate but if the subject comes up 2 weeks from now it'll probably feel like the 1st time again jk..... sort of

Originally Posted by RENESISFD View Post
Thanks, there is more than 40 hours of work for me to make those hardlines.

I really want to get to VIR this year.
I believe it. I'd have a good 10 hours into it and then the entire kit would be up for sale

Look forward to seeing you THIS YEAR at VIR. Pete and I will be there in March with Zone 2 (or 1st settlers or one of the porsche groups.....see what I'm talking about now if only I could find my medication hehe).
Fritz Flynn is online now
Old 02-18-13, 09:49 AM
  #95
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,581
Liked 70 Times in 57 Posts
The water cooled MVR has been our standard go-to wastegate for most mid frame custom turbo kits that we put together for customers' cars.
Banzai-Racing is offline
Old 02-18-13, 09:56 AM
  #96
All out Track Freak!
iTrader: (260)

Fritz Flynn's Avatar

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,243
Liked 89 Times in 76 Posts
Originally Posted by Banzai-Racing View Post
The water cooled MVR has been our standard go-to wastegate for most mid frame custom turbo kits that we put together for customers' cars.
If you were closer my car would be a fixture at your shop
Fritz Flynn is online now
Old 02-18-13, 10:51 AM
  #97
Just in time to die
10 Year Member
iTrader: (1)

Zero R's Avatar

Join Date: Nov 2001
Location: look behind you
Posts: 4,143
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Fritz Flynn View Post
Smart move hopefully ASPEC will start using these for their kits



Did you run hard or soft lines and where did you tee in or is your turbo just oil cooled? Also sounds like you are using two wastegates? I seriously doubt you'll have any issues at all with your setup. Mine wasn't water cooled and it sits about 2mm away from the DP (aspec kit).
Fritz we've been using these since the day they came out, I recommend the precision gates simply because for awhile the TiAL gates were failing until they water cooled them, now it's basically up to the customer as to which they prefer. If you do not water cool the TiAL gates you do run the risk of failure, it is more a function of the Diaphragm being so close the the valve body than anything else, they were failing on setups with the gate no where near a header or DP.

~S~

Last edited by Zero R; 02-18-13 at 11:13 AM.
Zero R is offline
Old 02-18-13, 03:40 PM
  #98
Work in Progress

AUS-FD3S's Avatar

Join Date: Feb 2013
Location: Australia
Posts: 129
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RENESISFD View Post
Thanks, there is more than 40 hours of work for me to make those hardlines.

I really want to get to VIR this year.
Is this 40 hours of work for you to do it or typically 40 hours for anyone? I think im going to water cooler the twin tials on my kit.
AUS-FD3S is offline
Old 02-18-13, 05:12 PM
  #99
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Likes: 0
Liked 1 Time in 1 Post
It was 40 hours to make the wastegate coolant lines, the turbo coolant lines, the turbo feed line, the turbo oil drain line, and the wastegate boost control lines. Having done it once and I now know the routing, I could probably do it in half the time.

Note: I used stainless line, it is much harder to bend than aluminum tubing.
RENESISFD is offline
Old 02-18-13, 07:53 PM
  #100
Work in Progress

AUS-FD3S's Avatar

Join Date: Feb 2013
Location: Australia
Posts: 129
Likes: 0
Liked 0 Times in 0 Posts
Ok not sure what to do, can you guys give me some suggestions, the DP that comes with the kit is 3.5 my exhaust is only 3, should I get a full 3.5 system or just reduce it at some point in the system, also where could I get this from?
AUS-FD3S is offline
