Best roll cage for the rx-7
#1
Racing Mechanic
Thread Starter
Best roll cage for the rx-7
I have to buy a roll cage for my Rx-7 3 gen , , I have seen only 2 brands , Cusco and autopower . In my opinion , tha problem with the cusco is that it is too weak , and it came only with 6 points , and the auto power with 7 , please let me know a nice roll cage for my car , I dont want to mod the dashborad but I can mod everything else. Please post some pics , if you can find one
#2
Senior Member
Join Date: Dec 2002
Location: Indianapolis, IN
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
I have a 4 point Kirk Racing cage from the group buy here a year or two ago. Do a search and check their stuff out, they have lots of options and configurations, and its a nice solid tube cage, I hate those cusco jointed pieces, I don't trust that kind of design at all. I have a picture of the cage but its on a friends computer, if I get it from him I'll post it. If you're short a 6 point with a halo without cutting the dash will probably be ok, but if you're my size (6'-3") I dont think it would work out...
#6
Rotary Freak
iTrader: (14)
For a bolt in the Kirk is a good product. Mine had a tight (good) fit to ther interior headliner, welds were good quality. Got a cert of manufacture for my racing body. On the heavy side ??? steel weights 0.283 lbs/cubic inch, if the tubing is the right dai and wall thickness for the racing body regulations and base plates are sized to min regulations it will weigt the same as brand X; if Brand X is much lighter then it is not legal.
#7
Senior Member
Join Date: Oct 2005
Location: new zealand
Posts: 559
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BMike
I have a 4 point Kirk Racing cage from the group buy here a year or two ago. Do a search and check their stuff out, they have lots of options and configurations, and its a nice solid tube cage, I hate those cusco jointed pieces, I don't trust that kind of design at all. I have a picture of the cage but its on a friends computer, if I get it from him I'll post it. If you're short a 6 point with a halo without cutting the dash will probably be ok, but if you're my size (6'-3") I dont think it would work out...
Trending Topics
#8
Eats, Sleeps, Dreams Rotary
d1rx7,
thats not the kirk. That the raceshop one. In fact thats from my car and thread:P
https://www.rx7club.com/forum/showth...light=raceshop
The raceshop one is nice as it doesn't require alot of alterations to the interior plastics, still allows full seat movement for driver and passenger (street version), is light (made of chromoly), and has been raced in alot of events.
If you are doing very strict racing and not just DE's or SCCA events, you might want to make sure these are legal. But many people have used the Raceshops bar without a problem.
I think Nuvarli had a custom one welded in as well as Damian. Otherwise the Raceshop one is a very nice alternative.
Here are some other links including one with sidebars that were welded in.
https://www.rx7club.com/forum/showth...light=raceshop
https://www.rx7club.com/forum/showth...light=raceshop
thats not the kirk. That the raceshop one. In fact thats from my car and thread:P
https://www.rx7club.com/forum/showth...light=raceshop
The raceshop one is nice as it doesn't require alot of alterations to the interior plastics, still allows full seat movement for driver and passenger (street version), is light (made of chromoly), and has been raced in alot of events.
If you are doing very strict racing and not just DE's or SCCA events, you might want to make sure these are legal. But many people have used the Raceshops bar without a problem.
I think Nuvarli had a custom one welded in as well as Damian. Otherwise the Raceshop one is a very nice alternative.
Here are some other links including one with sidebars that were welded in.
https://www.rx7club.com/forum/showth...light=raceshop
https://www.rx7club.com/forum/showth...light=raceshop
#13
Racing Mechanic
Thread Starter
Please if you have some pics of the compleate roll cage , I will apreciate if you can post it. I think that that raceshop looks great
#14
Mr. Links
iTrader: (1)

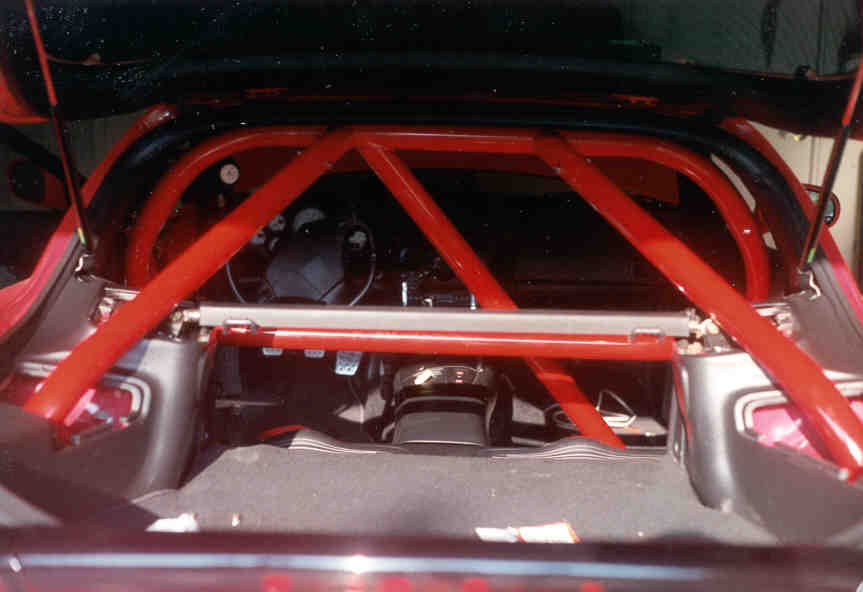

Those are images of the Kirk Racing rollbar. Those aren't my pictures but I do have a Kirk Racing rollbar.
You can contact Larry from the RaceShop for his rollbar here on the forum:
https://www.rx7club.com/group-buy-center-69/gb%3B-raceshop-rollbar-street-version-492432/
#15
Bubblicious DEF.
iTrader: (36)
figured id post here rather then start a new thread...
im looking at the kirk but ive been reading comments about the fitment.. can someone confirm if it was installer error or bad product?
im looking to keep my bins, not cut any plastics, and still have it legal for autox (not sure what class).. what would be the best roll bar for me? or should i just get it custom made and welded? (any est on how much that should cost?)
thanks
-benny
im looking at the kirk but ive been reading comments about the fitment.. can someone confirm if it was installer error or bad product?
im looking to keep my bins, not cut any plastics, and still have it legal for autox (not sure what class).. what would be the best roll bar for me? or should i just get it custom made and welded? (any est on how much that should cost?)
thanks
-benny
#16
Greasy bastards..
Join Date: Mar 2008
Location: bc canada
Posts: 258
Likes: 0
Received 0 Likes
on
0 Posts
probably not the proper place to advertise but i have a brand new autopower 6pt for sale, still in factory wrap, my car is rhd, ordered cage & of course they sent 1 for lhd. easier to sell then send back, pm me if anybody's interested. it's a bolt in, no dash mods needed.
#17
airplane apex seals
Join Date: Mar 2004
Location: either sunnyvale or san jose
Posts: 552
Likes: 0
Received 0 Likes
on
0 Posts
+1 for kirk I just ordered a 4 pt the other week. The reason for my choice is they don't make you give up your speakers and can be made for sunroof touring Fds. Also Ive heard you get a little more seat room over autopower, but Ive hear the M2 is the best for Fds but cost alot and is hard to come by
#21
Racing Mechanic
Thread Starter
#24
14K miles in 2 weeks
iTrader: (2)
It depends what your use case is.
Which roll bar/cage option you select really depends on your use case.
If you want to be SCCA legal, then the race shop bar is not for you. I have this bar, (one of the first 5 sold by M2) and because of the design, though it looks nice enough, is not legal for use in some SCCA classes. You may be classed into a very difficult category simply because the bar size, material and that it appears to stiffen the chassis.
A 4 point bar may also not be suitable for the event you wish to participate. It's OK for a non-competitive track day (but then, so is no bar) but anything that reqires a bar for competition will probably mandate some type of door area protection. For this, the best option is a custom weld in solution. Be advised, such solutions are not just install and go - they need to be checked perodically, they need to be garaged and maintained like a race car.
If you just want it to drive around town, then fine, but unlike the pictures in this list, I recommend that you apply some dense padding to the bar. Doing so will make it more difficult to use the rearview mirror and obstruct the reach back to the bins even more. Using a roll bar in a car with no padding might actually be more dangerous than no bar at all in some conditions.
Good luck.
If you want to be SCCA legal, then the race shop bar is not for you. I have this bar, (one of the first 5 sold by M2) and because of the design, though it looks nice enough, is not legal for use in some SCCA classes. You may be classed into a very difficult category simply because the bar size, material and that it appears to stiffen the chassis.
A 4 point bar may also not be suitable for the event you wish to participate. It's OK for a non-competitive track day (but then, so is no bar) but anything that reqires a bar for competition will probably mandate some type of door area protection. For this, the best option is a custom weld in solution. Be advised, such solutions are not just install and go - they need to be checked perodically, they need to be garaged and maintained like a race car.
If you just want it to drive around town, then fine, but unlike the pictures in this list, I recommend that you apply some dense padding to the bar. Doing so will make it more difficult to use the rearview mirror and obstruct the reach back to the bins even more. Using a roll bar in a car with no padding might actually be more dangerous than no bar at all in some conditions.
Good luck.
