Turbohoe

is there an auxillary harness that i am missing that plugs into the blower motor and hear core etc... i have attached a couple pictures.

I bought the car as a shell without a dash so i never knew which way the wires ran or what i'm missing. take a look at the pics and let me know. thanks





In the one picture you can see that i marked the plugs with stars that i don't have male plug ends for. (thats all photobucket would give me to use as markers)

Gringo Grande

iTrader: (97)

Once you figure it out. I just pulled a dash to ship to Poland and they didn't want the harness that runs down the metal support bar. If that is what you need shoot me a pm and I may be able to help you.

Nice stars by the way, very manly...the IRP guys will love it.

Turbohoe

do you recall having an extra harness that plugged into those plugs? do you have it?

Turbohoe

any help, anyone?

Gringo Grande

iTrader: (97)

I've got an entire dash for sale and if I recall correctly all of those connectors connect to harness on the metal rebar. I have my AC section removed at the moment so I might be able to take some photos.

RSS604

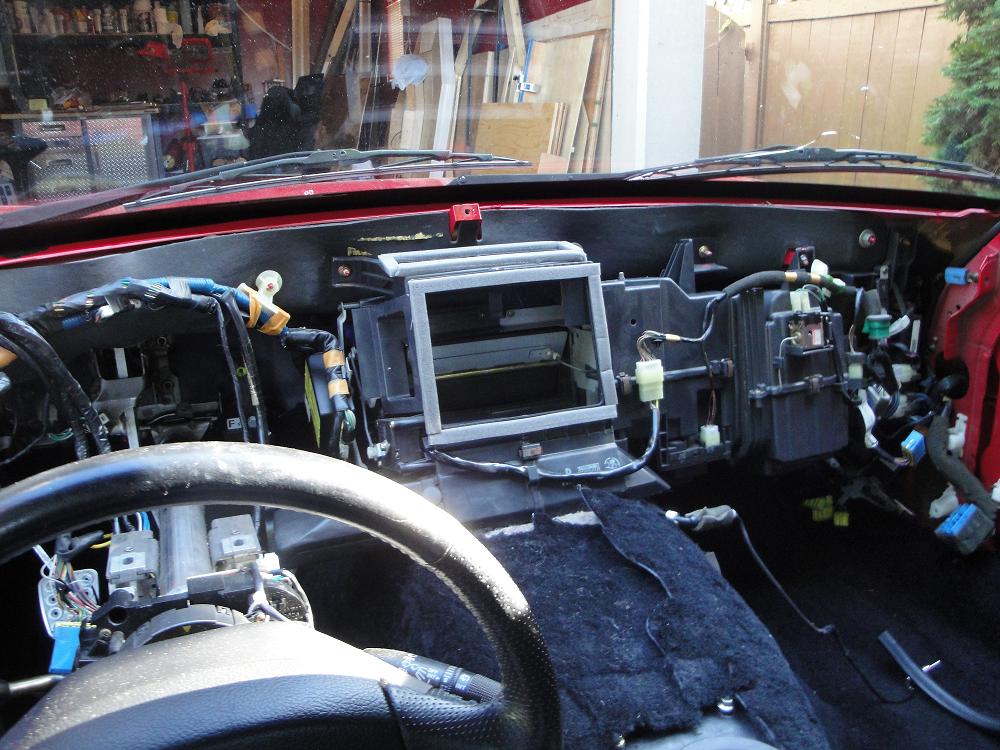

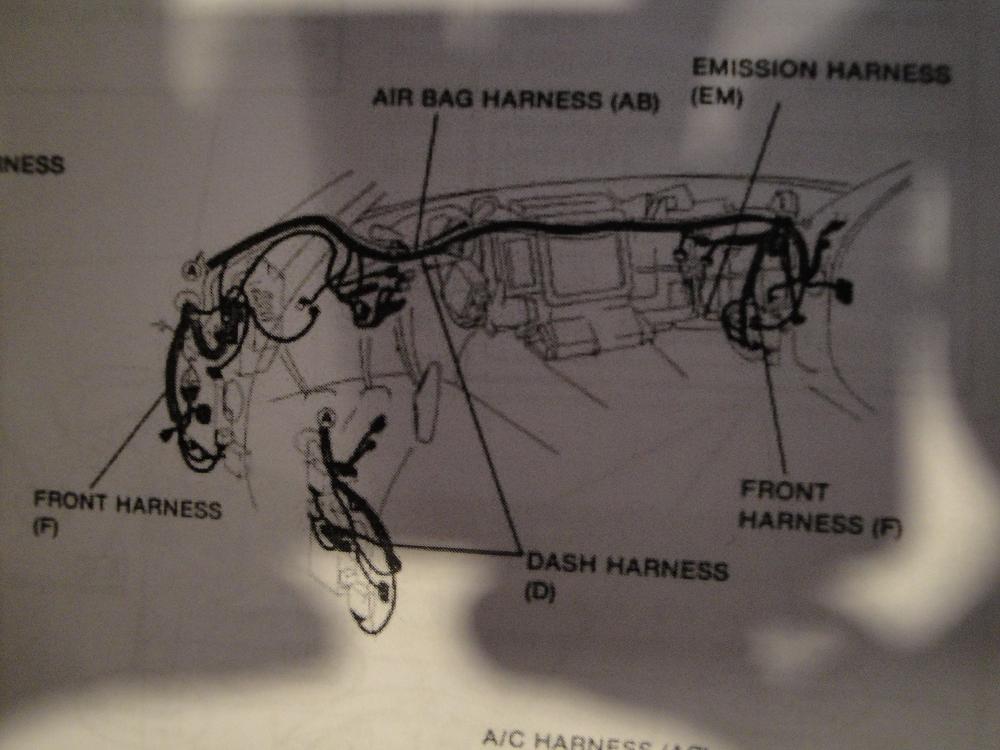

Here are a couple of pics behind my dash. There's a harness missing in your photo. I also attached a picture from the Wiring Diagram manual.

RSS604

HAve a look at page Z-68 of the wiring diagram manual. You can find one online with a google search

Gringo Grande

iTrader: (97)

Looks like he is missing the emissions harness possibly? If so I've got one from my parts car possibly.

Turbohoe

thanks for the pictures. i may have found someone that can help me out with the harness. i'm waiting on a reply to my message
