Am I missing a piece from my front sway bar? [Pictures Inside]

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

Am I missing a piece from my front sway bar? [Pictures Inside]

Old 03-14-14, 07:58 PM
  #1
Full Member
Thread Starter

Join Date: Oct 2013
Location: Houston, Texas
Posts: 67
Likes: 0
Liked 0 Times in 0 Posts
Am I missing a piece from my front sway bar? [Pictures Inside]

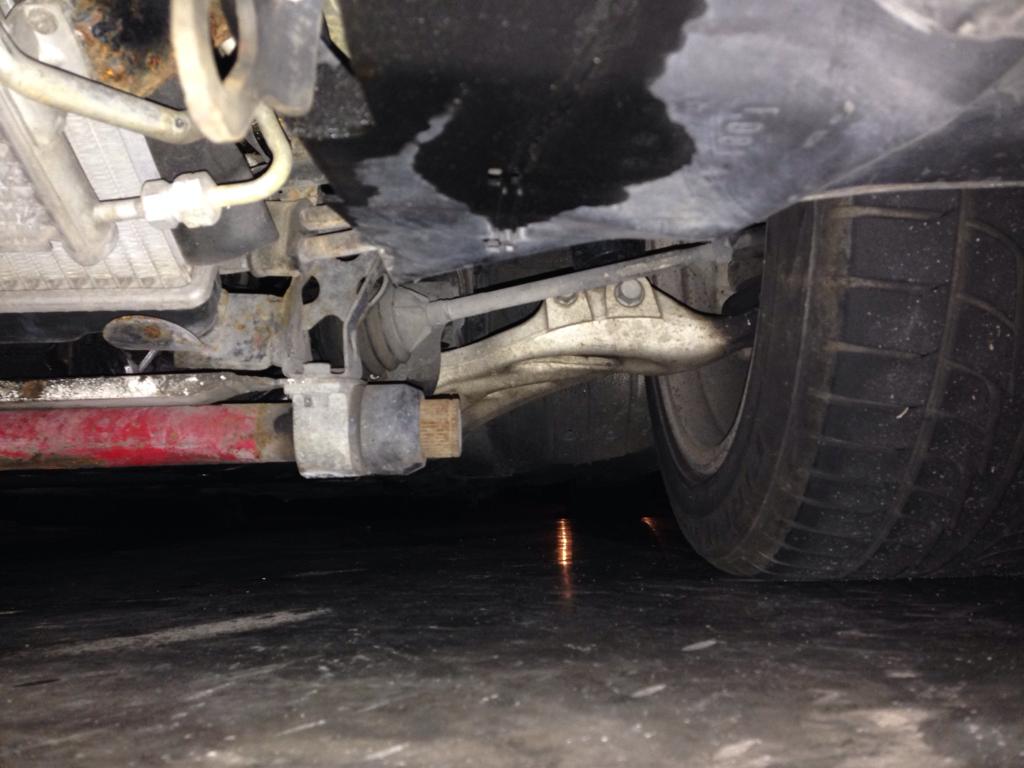

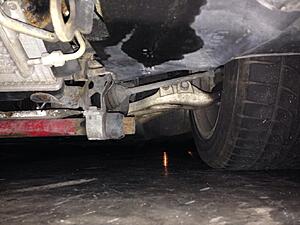

It looked a little strange after I put the car on the lift. Seems like there should be another piece connected to the ends of the front sway Bar. Am I missing anything?

ahmadhasib is offline
Old 03-14-14, 08:09 PM
  #2
BRAP BRAP BRAP...
5 Year Member

Rotors R Cool's Avatar

Join Date: Mar 2008
Location: Plano, Texas
Posts: 424
Likes: 0
Liked 0 Times in 0 Posts
Yes. Everything about that is wrong. The second bolt on the lower control arm next to the bolt attaching the damper is where the end link should attach. You effectively have no roll bar.
Rotors R Cool is offline
Old 03-14-14, 09:20 PM
  #3
FD Addict
iTrader: (14)

Coverhag's Avatar

Join Date: Apr 2011
Location: Alberta, Canada
Posts: 115
Likes: 0
Liked 0 Times in 0 Posts
Sad to say that you are missing the arm and connecting link. To me, the stock mounts look bent, have to think the assembly took an impact.
Coverhag is offline
Old 03-14-14, 09:35 PM
  #4
Senior Member
iTrader: (4)

Join Date: Apr 2011
Location: Bergen, Norway
Posts: 431
Likes: 0
Liked 0 Times in 0 Posts
And that line/mark in your plastic cover leading to the area where parts are missing, looks kind of suspicious? What did you hit?
oyvindjs is offline
Old 03-15-14, 04:12 AM
  #5
Full Member
Thread Starter

Join Date: Oct 2013
Location: Houston, Texas
Posts: 67
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Rotors R Cool View Post
Yes. Everything about that is wrong. The second bolt on the lower control arm next to the bolt attaching the damper is where the end link should attach. You effectively have no roll bar.
Would that explain the sloppy feeling on the highway? I feel like there's a little too much play in the wheel during the first bits of turning. Car tends to slightly waddle also at highway speeds.


Originally Posted by oyvindjs View Post
And that line/mark in your plastic cover leading to the area where parts are missing, looks kind of suspicious? What did you hit?
The previous owner had some very low springs along with some blown shocks. I'm assuming this damage is from the previous owner. I'm to get to fixing!

Thanks for everyone's help!!
ahmadhasib is offline
Old 03-15-14, 07:54 AM
  #6
BRAP BRAP BRAP...
5 Year Member

Rotors R Cool's Avatar

Join Date: Mar 2008
Location: Plano, Texas
Posts: 424
Likes: 0
Liked 0 Times in 0 Posts
I have never paid attention to the angles while the car is on its wheels but the car looks really low to me based solely on the angle of the lower control arm and the tie rods. But I may easily be wrong.

Your car has more roll on the front end than most other cars, I bet. I'd even bet it oversteers like a Formula D car. Everything I see in that pic is fractal incorrectness.

Basically, I guaranty that your car drives like crap. It is in your cars best interest to trickle some, if not just dump, money into everything that keeps the wheels from kicking the bodywork off. The fact that an RX-7, let alone any sports car, has been driving around with a roll bar in that condition serves as a giant red flag as to the attitude of the previous owner. Dismissing this advise would be a red flag in regards to your attitude concerning that car.

Also, tackle that rust before it becomes a real problem.
Rotors R Cool is offline
Old 03-15-14, 08:57 AM
  #7
FD Daily
iTrader: (25)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,283
Likes: 0
Liked 3 Times in 3 Posts
Is the end of the sway bar that's sticking out from the bushing splined?

You are missing the blue part in this pic...
http://www.fd3s.net/anti-sway_bar_mounts_FTL2.jpg

Can you take a picture of the other side or does it look the same?

I also spot a racing beat sway bar reinforcement bar in there..
K-Tune is offline
Old 03-15-14, 09:33 AM
  #8
Senior Member
iTrader: (21)

Andre The Giant's Avatar

Join Date: Sep 2010
Location: Dallas, Tx
Posts: 536
Likes: 0
Liked 5 Times in 4 Posts

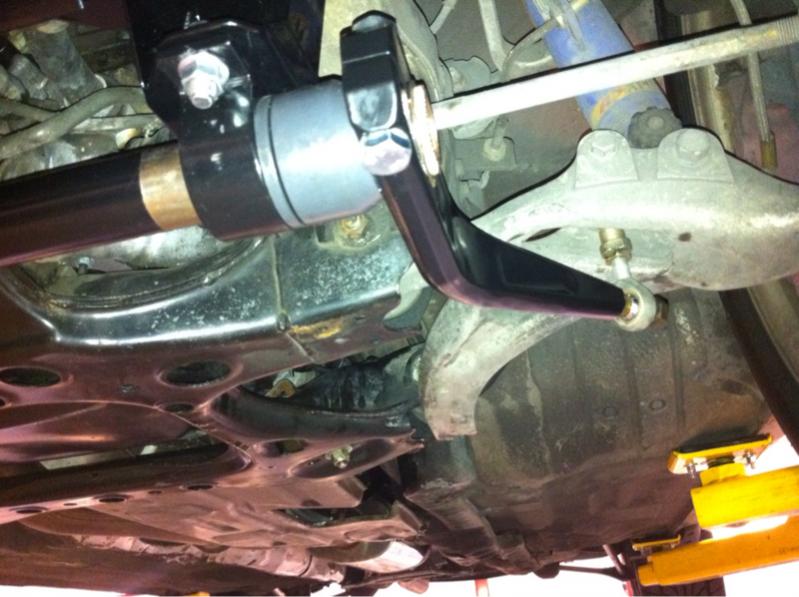

Am I missing a piece from my front sway bar? [Pictures Inside]-image-4029836775.jpg

Another pic to help.
You have what's left of a very old Racing Beat multi piece swaybar. They became well known for breaking the splined part of the "arm". Could be why yours is missing
Andre The Giant is offline
Old 03-15-14, 05:44 PM
  #9
Full Member
Thread Starter

Join Date: Oct 2013
Location: Houston, Texas
Posts: 67
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Rotors R Cool View Post
Yes. Everything about that is wrong. The second bolt on the lower control arm next to the bolt attaching the damper is where the end link should attach. You effectively have no roll bar.
This makes sense now. The previous owner had after market shocks that was held in place by 1 bolt. I assumed the factory shock was held in place by 2 bolts.

What is the name of the part that screws to the 2nd bolt of the control arm? I'm assuming that is that part that connects to the sway bar (if the sway bar was one piece).
ahmadhasib is offline
Old 03-15-14, 07:17 PM
  #10
FD Daily
iTrader: (25)

K-Tune's Avatar

Join Date: Jul 2003
Location: Gulf Breeze, FL
Posts: 3,283
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by ahmadhasib View Post
This makes sense now. The previous owner had after market shocks that was held in place by 1 bolt. I assumed the factory shock was held in place by 2 bolts.

What is the name of the part that screws to the 2nd bolt of the control arm? I'm assuming that is that part that connects to the sway bar (if the sway bar was one piece).
The sway bar end link attaches to the inboard control arm bolt.
K-Tune is offline
Old 03-16-14, 09:16 AM
  #11
***** "Nazi"...lol!

bajaman's Avatar

Join Date: Jul 2001
Location: near Wichita, Kansas
Posts: 4,958
Liked 13 Times in 13 Posts
Lord of Mercy but that is one hosed up front suspension!

One has to wonder what went thru the previous owner's mind? Was it apathy, ignorance...what?
bajaman is offline
Old 03-16-14, 10:40 AM
  #12
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,199
Liked 158 Times in 138 Posts
FWIW, looks like you also have a RB sway-bar mount brace. At one time someone put some care into the front end.
Sgtblue is offline
Old 03-16-14, 12:59 PM
  #13
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Liked 4 Times in 4 Posts
I would recommend breaking out the FSM, and going over all suspension points (front & rear) of this car.
Mahjik is offline
Old 03-17-14, 04:05 AM
  #14
Non Runner
iTrader: (2)

Ceylon's Avatar

Join Date: Mar 2008
Location: Somerset, England
Posts: 1,936
Liked 24 Times in 23 Posts
Is the bit of wood something your jacking on, or do you actually have a piece of wood for a sway bar?

Pic of mine when I fitted new bars, may help you see what its supposed to look like:

Ceylon is offline
