air pump removal?
#1
Full Member
Thread Starter
Join Date: Oct 2001
Location: chattanooga tn
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
air pump removal?
i need to remove the air pump to get the the thermostat can someone give me a detailed description of how to remove the air pump or where i can get a description on the internet i have a manual but of all the things it tells you there's no info on removing the air pump.
#2
Rotary Enthusiast
Airpump removal is easy. However, I think that you could get to the tstat housing (3 bolts) without the airpump being removed. I don't remember 100% as I completely removed mine a while back, so if you really want to remove the air pump:
-. Loosen the Alternator belt tensioner assembly.
-. Remove all hoses and electrical connections to the Air Pump.
-. The Air pump has two bolts that need to be removed. First Loosen the to bolt that is on the block. Then remove the bottom bolt that is on the adjustment bracket. Remove belt from the airpump. Hold the air pump and remove the top bolt.
I believe that's all it should take.
-. Loosen the Alternator belt tensioner assembly.
-. Remove all hoses and electrical connections to the Air Pump.
-. The Air pump has two bolts that need to be removed. First Loosen the to bolt that is on the block. Then remove the bottom bolt that is on the adjustment bracket. Remove belt from the airpump. Hold the air pump and remove the top bolt.
I believe that's all it should take.
Last edited by atihun; 01-13-02 at 01:22 PM.
#4
Full Member
Thread Starter
Join Date: Oct 2001
Location: chattanooga tn
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
thanx atihun
if you can remove the tstat without removing the air pump that would be great but to my knowledge the tstat housing is located under the pump maybe i'm in the wrong place can you see the tstat without removing the pump?
#6
Rotary Enthusiast
Ok, if you remove the bottom bolt on the airpump bracket, and you remove the belt, you can swing the airpump up and tighten the top bolt so it stays in position. This should give you enough room. Probably easier if you just remove the airpump.
Good luck.
Good luck.
#7
Full Member
Thread Starter
Join Date: Oct 2001
Location: chattanooga tn
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
hell yeah!!!!
thats what i've been looking for. i had a post for enginge diagrams but no replies do you have any more pm them to me or just add to post . AWSOME
Trending Topics
#9
Rotary Enthusiast

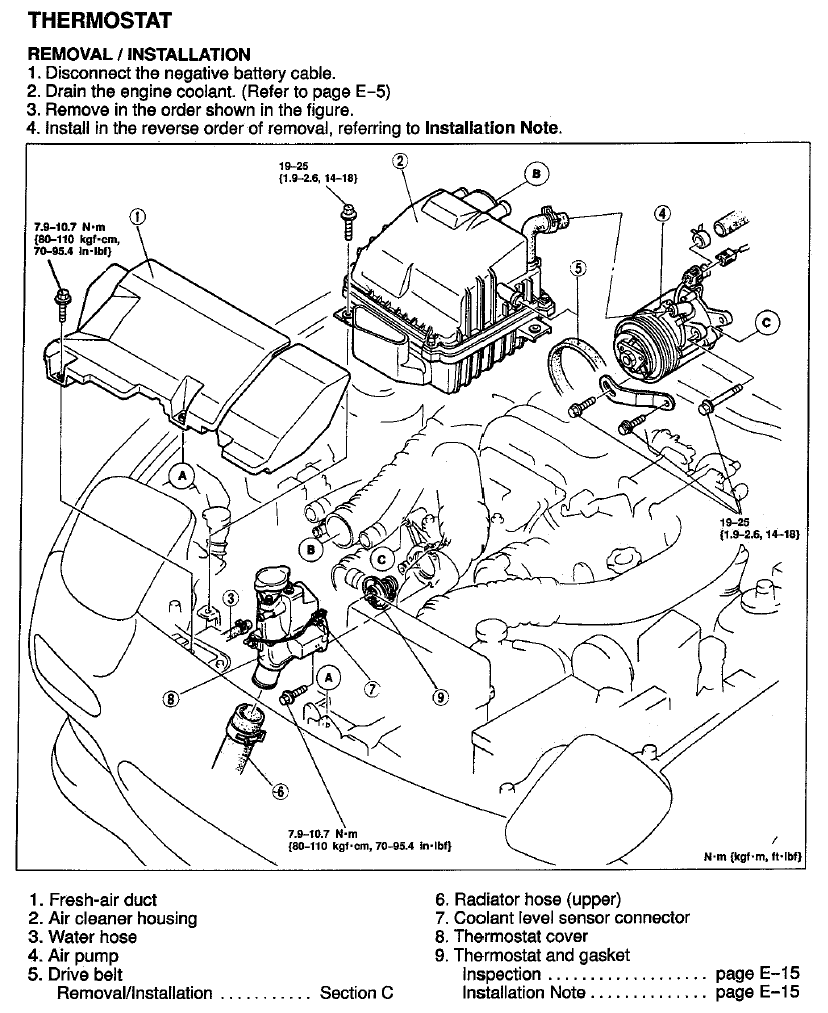

Here you go.
It's nice to have members like this, providing such a service to us all!
http://www.iluvmyrx7.com/Technical_I...ice_manual.htm
It's nice to have members like this, providing such a service to us all!
http://www.iluvmyrx7.com/Technical_I...ice_manual.htm
