Air Pump Relocated to A/C

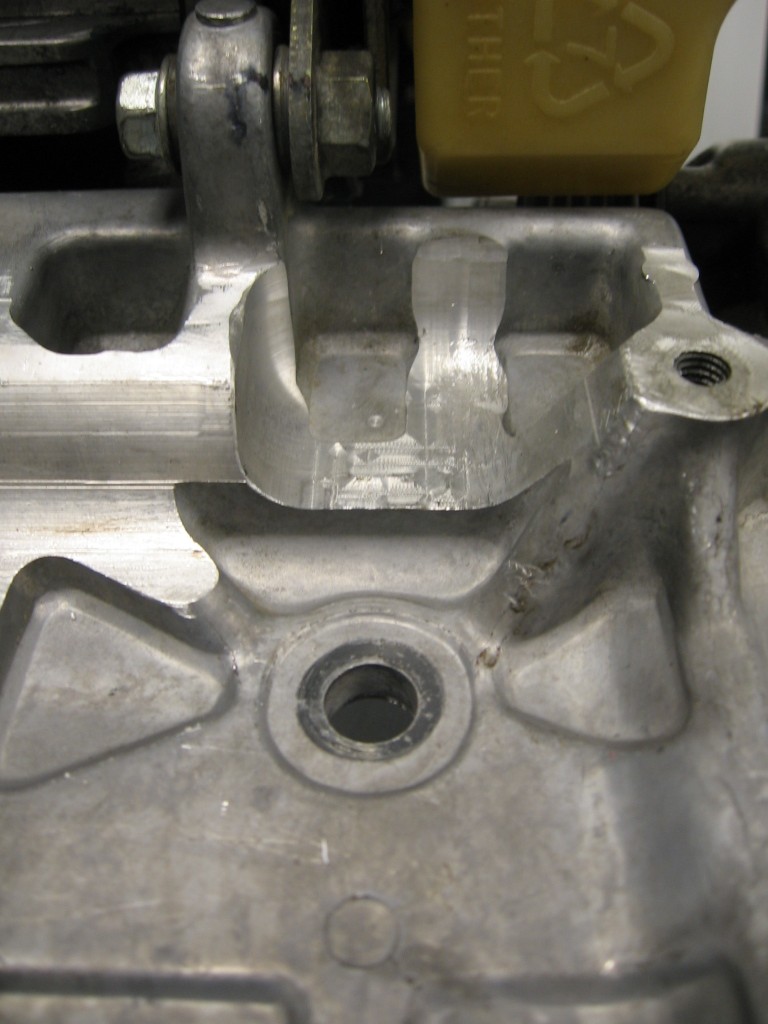

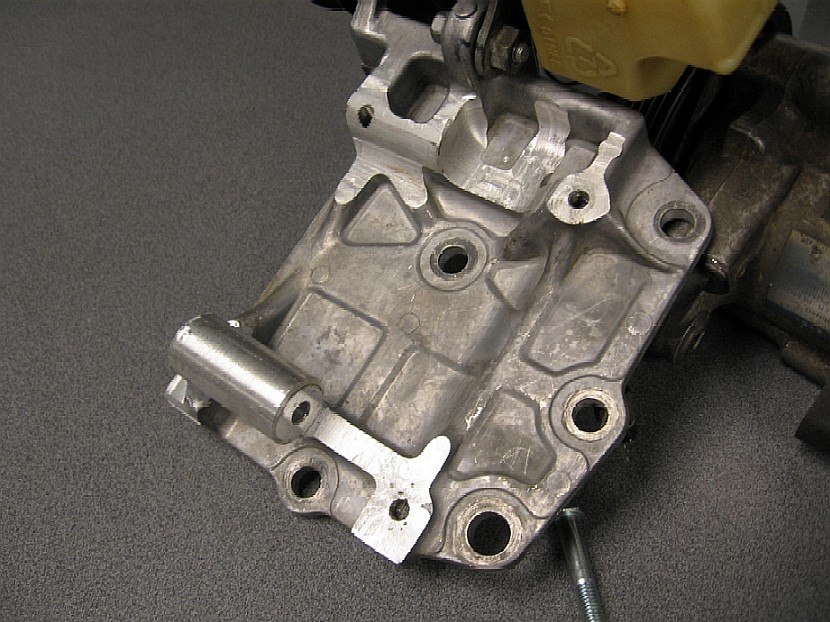

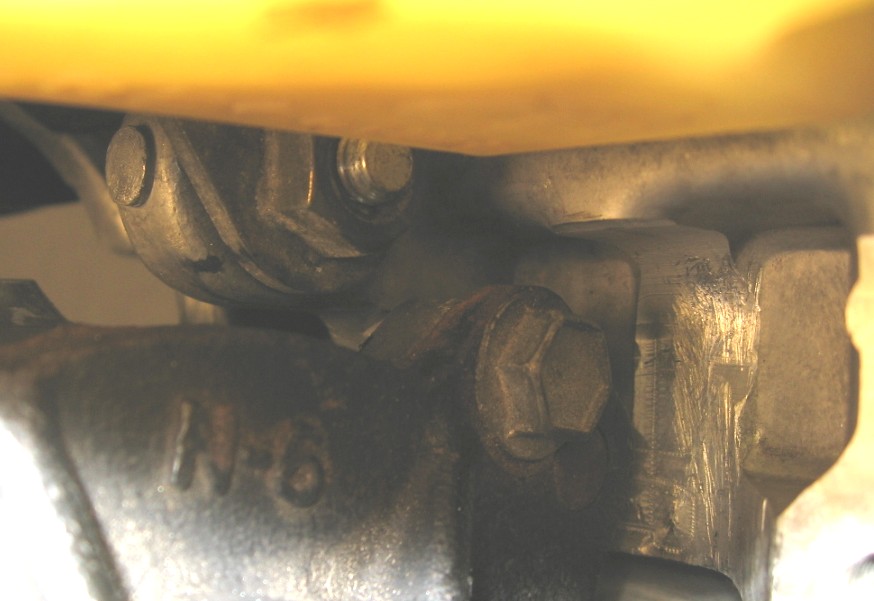

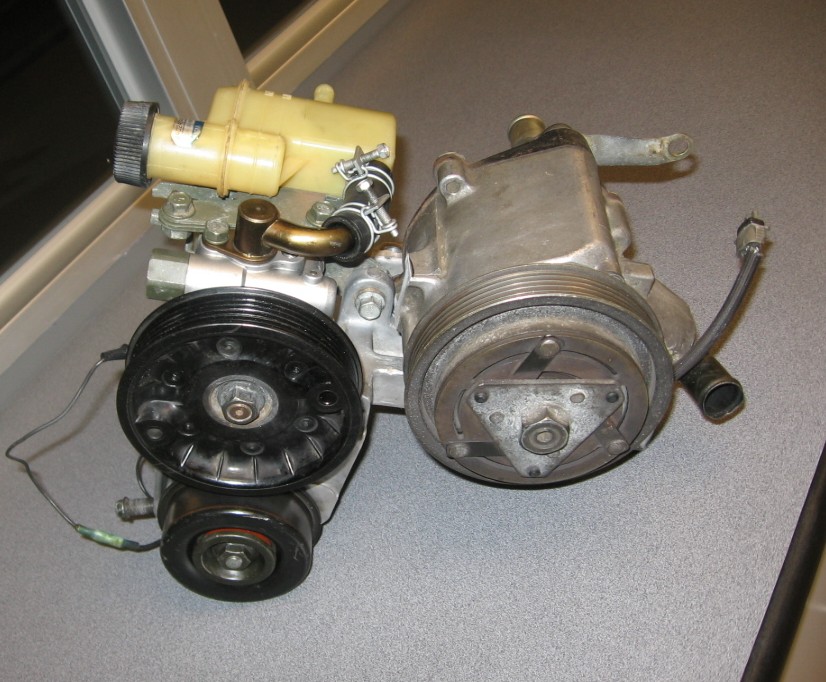

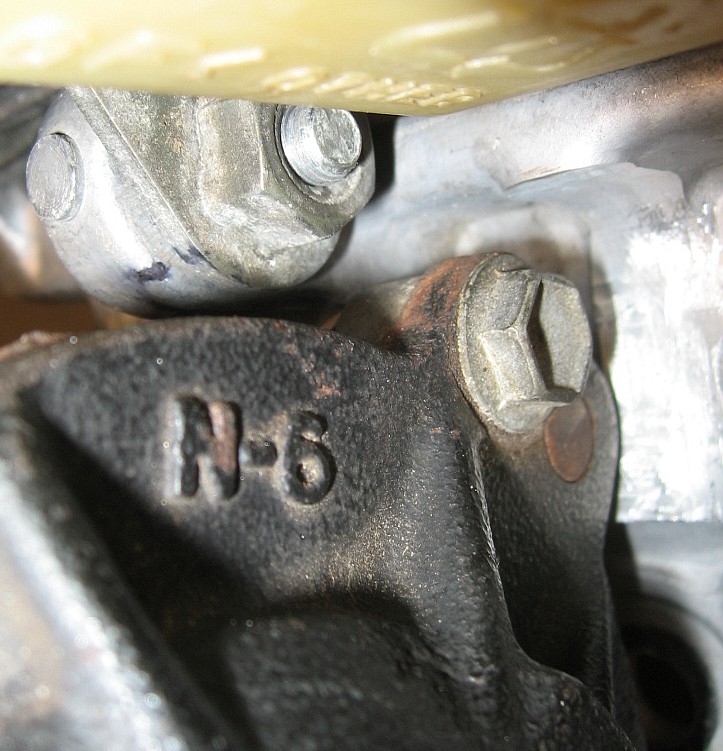

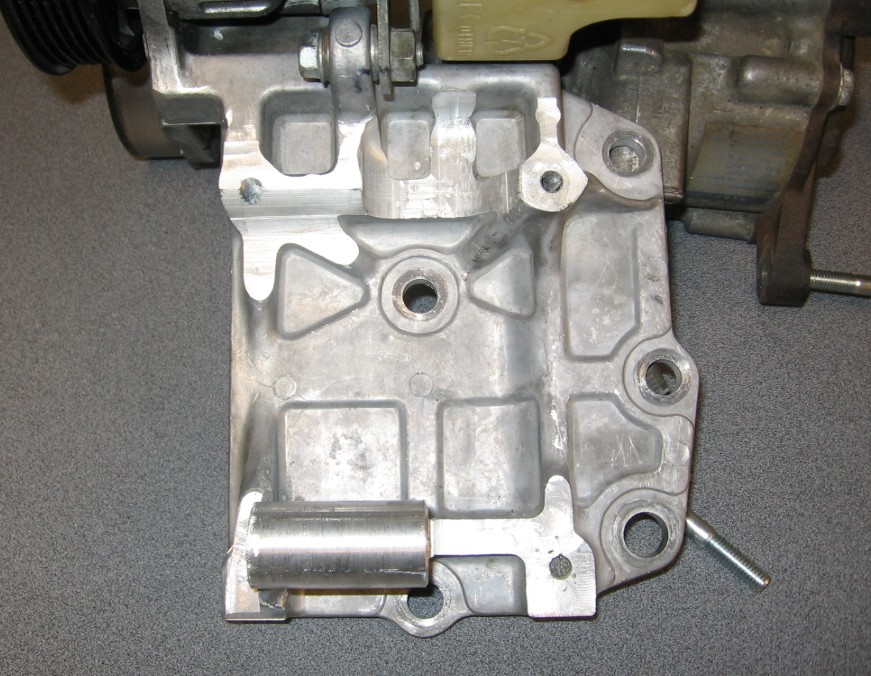

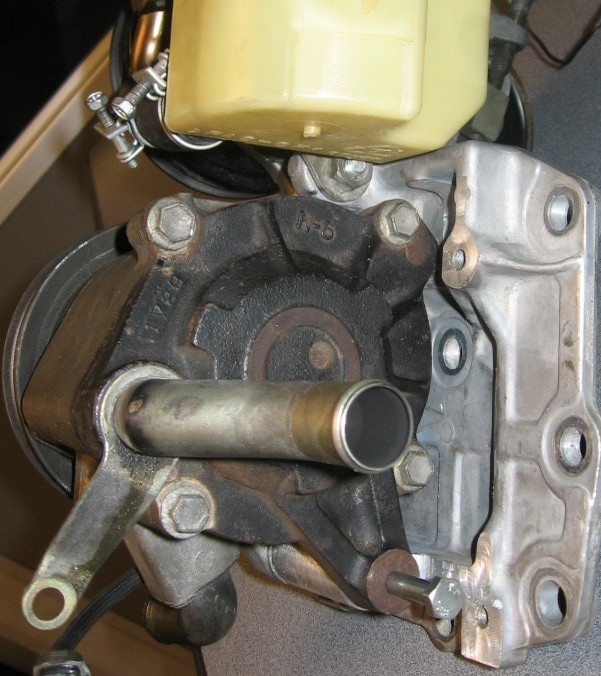

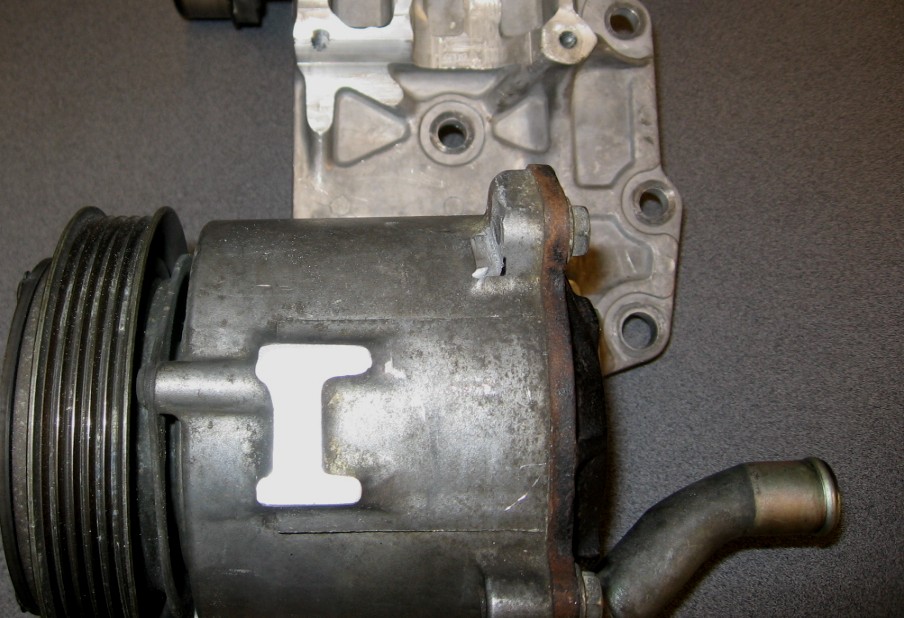

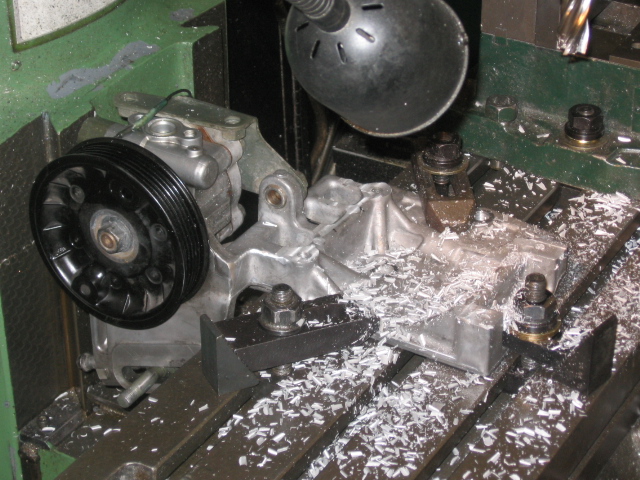

Here some pics of my DIY Air pump relocation to the A/C Pump mounting point. Required a lot of machining and modifying the air pump itself. Check out the Link for the total project.
https://www.rx7club.com/nw-rx-7-forum-33/fd-restoration-%24%24%24%24-damnit-525920/
Not quite finished, but I felt like sharing.
Peace
https://www.rx7club.com/nw-rx-7-forum-33/fd-restoration-%24%24%24%24-damnit-525920/
Not quite finished, but I felt like sharing.
Peace
Last edited by afgmoto1978; Apr 14, 2006 at 07:17 PM.
Thread Starter
Joined: Jul 2005
Posts: 2,913
Likes: 4
From: Kingman, AZ
Back of engine, going to make a set of custom hard tubes for it. The air pump will have it's own seperate K&N filter.
Same with the air bypass, I going to make a custom hard pipe and reroute it into the second turbo's intake tracked. Plus with the DIY V-mount and ducting this thing is going to look ****.
Peace
Same with the air bypass, I going to make a custom hard pipe and reroute it into the second turbo's intake tracked. Plus with the DIY V-mount and ducting this thing is going to look ****.
Peace
