after air pump

i just removed the air pump and moved the AST tank to take its place, i did a search and a few members mentioned that when you remove the air pump you have a chance of the water pump pulley sliping so i just wanted to know if that has actually happened to anyone, kinda dont want put it back because thats the only place the AST fits had it stuck between the frame and IC end tank.

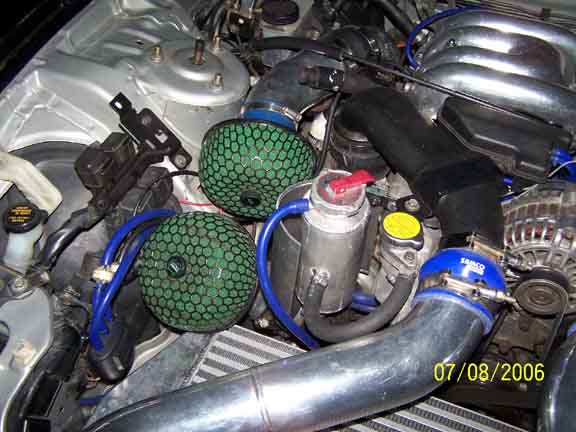

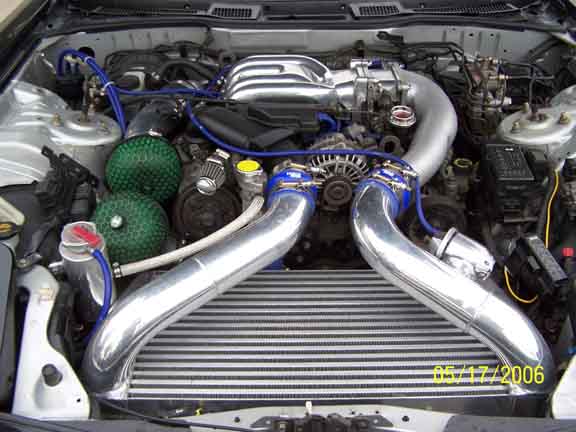

Attached Thumbnails after air pump-before.jpg   after air pump-after.jpg
Old 07-08-06, 09:12 AM
  #2
Bann3d. I got OWNED!!!

iTrader: (22)

RX7 RAGE's Avatar

Join Date: Feb 2001
Location: San Diego, CA
Posts: 5,014
Received 63 Likes on 22 Posts
Did you use a greddy pully kit when you removed your airpump Hugo? That's what I did and I haven't had any problems.
Old 07-08-06, 09:33 AM
  #3
Rotary Enthusiast

iTrader: (1)

tiger18's Avatar

Join Date: Feb 2004
Location: UK
Posts: 899
Likes: 0
Received 0 Likes on 0 Posts
i did same,,,,bought the gredddy kit cheap and easy to install,,,has much more belt coverage and the water pump pulley has small teeth to stop belt slip (cant really see it slipping) ad bolted the AST on the airpump mount just like youu,,works perfect!
Old 07-08-06, 09:37 AM
  #4
development


dubulup's Avatar

Join Date: Aug 2002
Location: Lafayette, LA
Posts: 5,714
Likes: 0
Received 6 Likes on 5 Posts
shouldn't use silcon for coolant lines.

remove the hard air pump lines...make the engine bay look cleaner. (weight savings too)
Old 07-08-06, 02:57 PM
  #5
almost done

Thread Starter

KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
i didnt know that info on the greedy pulley kit thanks, gonna take off the silicone coolant lines had few problems with them recently and just make a block off plate so i can remove the air pump lines.

RX7 RAGE when are you going back to fusion.
Old 07-09-06, 02:05 PM
  #6
Rotary Enthusiast


DrunkenBowler's Avatar

Join Date: Mar 2003
Location: STL Area
Posts: 931
Likes: 0
Received 0 Likes on 0 Posts
I just pulled off my air pump yesterday too. As for pulley sizes and changes, I don't think you need to change them. Just get a belt that fits.

I ran my belt on the outside of the water pump pulley rather than the inside. I didn't know if I would have enough contact area if I ran a belt on the inside. Better safe than sorry.

Take a look, and so far, there are no problems.

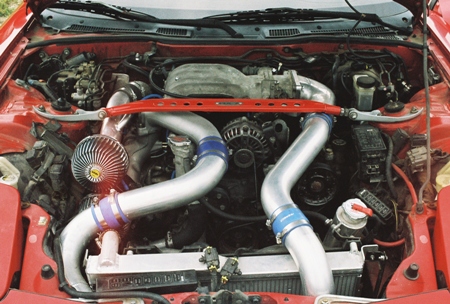

Attached Thumbnails after air pump-7-9-2006-02.jpg
Old 07-10-06, 12:16 PM
  #7
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts
DrunkenBowler,

You might check to see if you reversed the flow of the waterpump. Take a look at the fins on a water pump (from the forsale section):

http://vehisold.com/forsale/misc1.JPG

You probably aren't getting the proper coolant flow if it's running the pump backwards.
Old 07-10-06, 12:39 PM
  #8
almost done

Thread Starter

KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
greddy pulley set $115.00 shipped
http://www.gofastperformance.com/pro...oducts_id=2658
Old 07-10-06, 02:32 PM
  #9
Rotary Enthusiast


DrunkenBowler's Avatar

Join Date: Mar 2003
Location: STL Area
Posts: 931
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mahjik
DrunkenBowler,

You might check to see if you reversed the flow of the waterpump. Take a look at the fins on a water pump (from the forsale section):

http://vehisold.com/forsale/misc1.JPG

You probably aren't getting the proper coolant flow if it's running the pump backwards.

Thanks Mahjik. Come to think of it, it runs hotter than it did before. Well, city driving is the same, but there's a noticable difference on the highway.
