94' Touring DYNO PLOT
Yesterday I hooked up the 7.
got 3 runs in, but the first one had a bad ground the plot read awkward.

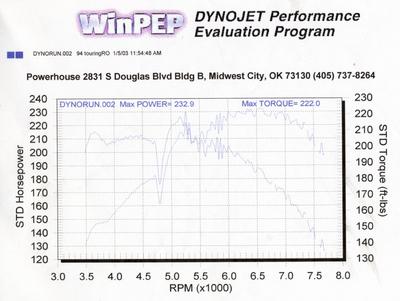

*2nd pull in 4th gear is posted top
I only have Intake and N1 exhaust.
(close to stock boost 11-8-10..then drops slowly to 6psi)
** last pull a little hotter and A/F is read on this one. Thinking Im safe enough to install a DP.
-please let me know if pics dont show.
got 3 runs in, but the first one had a bad ground the plot read awkward.
*2nd pull in 4th gear is posted top
I only have Intake and N1 exhaust.
(close to stock boost 11-8-10..then drops slowly to 6psi)
** last pull a little hotter and A/F is read on this one. Thinking Im safe enough to install a DP.
-please let me know if pics dont show.
#3
Hi Powr FD's
Thread Starter
Join Date: Oct 2002
Location: OKC
Posts: 806
Likes: 0
Received 0 Likes
on
0 Posts
crap. yahoo.photos sucks.
233HP & 222 TQ
with a A/F ratio that never goes above 11.5
http://photos.yahoo.com/bc/exhibit76...iew=t&.hires=t
233HP & 222 TQ
with a A/F ratio that never goes above 11.5
http://photos.yahoo.com/bc/exhibit76...iew=t&.hires=t
Trending Topics
#8
Hi Powr FD's
Thread Starter
Join Date: Oct 2002
Location: OKC
Posts: 806
Likes: 0
Received 0 Likes
on
0 Posts
Im stock except for the intake and exhaust
you think thats lean? well the fuel filter does need to be changed.
I just ordered some new plugs (my gas mileage sucks too) but Im gonna try 9's all away around.. and round 2 was to have the filter replaced.. Im thinking of having the dealership change the fuel filter (unless its easier than it looks). thanks for the insight
you think thats lean? well the fuel filter does need to be changed.
I just ordered some new plugs (my gas mileage sucks too) but Im gonna try 9's all away around.. and round 2 was to have the filter replaced.. Im thinking of having the dealership change the fuel filter (unless its easier than it looks). thanks for the insight
#9
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Turbojeff is right, you are running lean for those mods (unless the A/F sniffer isn't very accurate). My dyno with a downpipe and cat-back showed an A/F of 10:1 or less from 4500-7500 rpm. This is typical from what I have seen. Replace your fuel filter. I would stick with 7s on the leading plugs, there's no reason to go to 9s with your mods.
If you install a downpipe, watch your boost to make sure you are not spiking or overboosting. For what it's worth, my boost used to drop to 7 psi at 6000 rpm and hold constant until redline. With my new Greddy ProfecB boost controller, it's holding 9 all the way to redline (with a quicker transition to boot).
If you install a downpipe, watch your boost to make sure you are not spiking or overboosting. For what it's worth, my boost used to drop to 7 psi at 6000 rpm and hold constant until redline. With my new Greddy ProfecB boost controller, it's holding 9 all the way to redline (with a quicker transition to boot).
#10
Hi Powr FD's
Thread Starter
Join Date: Oct 2002
Location: OKC
Posts: 806
Likes: 0
Received 0 Likes
on
0 Posts
lean huh that sux. Ok, I will take the necessary precautions then.. and get the Fuel Filter changed. Mazda wants a crap load for it though! I already ordered the 9's and will try them o see how it runs.
I appreciate it fellas
I appreciate it fellas
#12
Rear Admiral
iTrader: (3)
Join Date: Jul 2002
Location: St. Louis, MO
Posts: 1,685
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BoOsTin FD
i thought stock Fd comes with 255 hp. How come you got 233 with intake and Exhaust?
i thought stock Fd comes with 255 hp. How come you got 233 with intake and Exhaust?
#14
Rotary Enthusiast
Join Date: Mar 2001
Location: Mechanicsburg, PA USA
Posts: 1,392
Likes: 0
Received 0 Likes
on
0 Posts
Most FDs seem to put down 210-225 rwhp stock so those numbers are pretty close to normal - Mazda might screw your car up..unless they have a RX7 or 2 in the bay (i.e. if they work on them alot which is doubtful), take your car to a noteable rotary mechanic. It's well worth it with these cars
#15
Hi Powr FD's
Thread Starter
Join Date: Oct 2002
Location: OKC
Posts: 806
Likes: 0
Received 0 Likes
on
0 Posts
[quote]i thought stock Fd comes with 255 hp. How come you got 233 with intake and Exhaust?[quote] Youve got all those mods and dont know that!? *must have bought yours like that...
#16
Powered by** Rotary
I never took mine to the dyno, and i'm not planing on going soon. So i don't know how much hp's do i have. SO I didn't know that, and also i didn't know that dyno only tells rwhp.
[QUOTE]Originally posted by HeatTreated
[quote]i thought stock Fd comes with 255 hp. How come you got 233 with intake and Exhaust?
[QUOTE]Originally posted by HeatTreated
[quote]i thought stock Fd comes with 255 hp. How come you got 233 with intake and Exhaust?
Youve got all those mods and dont know that!? *must have bought yours like that...
#17
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by BoOsTin FD
I never took mine to the dyno, and i'm not planing on going soon. So i don't know how much hp's do i have. SO I didn't know that, and also i didn't know that dyno only tells rwhp.
I never took mine to the dyno, and i'm not planing on going soon. So i don't know how much hp's do i have. SO I didn't know that, and also i didn't know that dyno only tells rwhp.
#19
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by BoOsTin FD
As long as i'm not lean, I'm fine.
As long as i'm not lean, I'm fine.
#20
Senior Member
iTrader: (1)
Join Date: Feb 2001
Location: Charleston, WV
Posts: 610
Likes: 0
Received 0 Likes
on
0 Posts
Sometimes a cat converter before the a:f meter will throw off the readings, usually it will read leaner than actual. I wouldn't sweat the indicated a:f ratio unless you install the probe before any converters.
Wade
