hello, and have a nice weekend, who can tell me what the letters (f) and (EM) correspond to on a connector diagram X05 rx7 fd 1993
thank you in advance
F front
EM ???.
sorry for my english



F: Front Harness
EM: Emission Harness
The "X" connectors are where the harnesses connect together.



Thank very much ,,,,,super cool



On the diagrams the connectors are seen from the front or from the back



From the back of the connector, the side where the wires go into it.

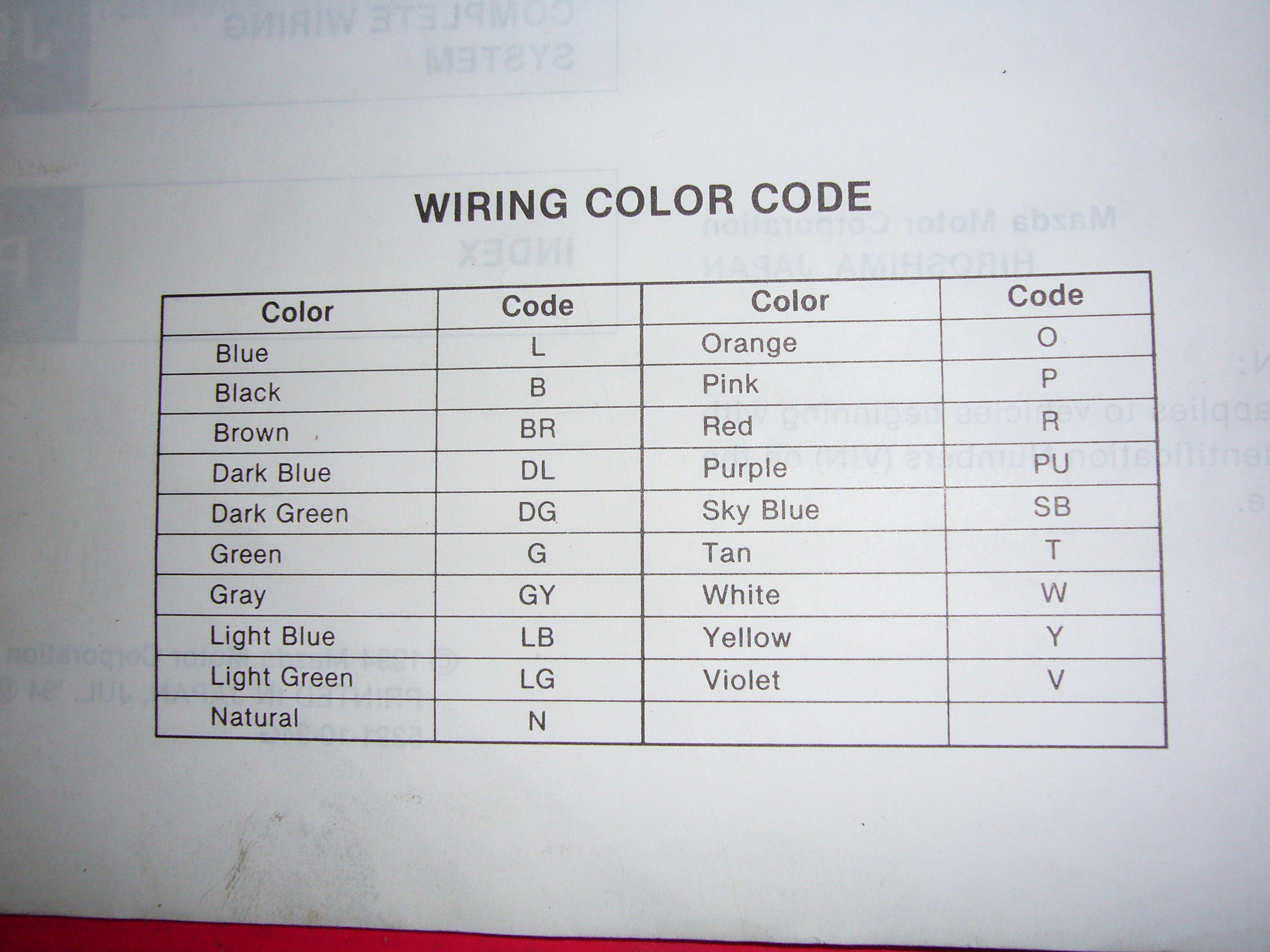

so on this diagram the G (F) with the B/L (EM)



sorry for my english



Probably better than my multi decade ago schoolboy french! If you're asking what the colour abbreviations are - vert and noir/bleu.



ok and thank you very much, because on the interior wiring, I no longer have a connector
stephane



Hello, I hope everyone is doing well.
what is the best place to place an additional water temperature sensor on rx7 fd??
thank you and good week end
stephane



Best place would be the hottest part of the engine - rear plate - where the stock display sensor lives. Might find that a difficult, crowded area though!

You could use a barbed tee fitting in the water line on the top of that plate......or drill and tap the back of the water pump housing. Some use the "wrong" side of the thermostat, using the bung just below the filler neck......which will also be the first place to lose water level if you have a leak and give a reassuring falling needle indication as you cook the engine.

Be aware, most of the aftermarket stuff is NPT (at least here) and BSP is the only pipe thread on the engine, you can kludge it for some of the smaller threads, but as some would say, it's a crime against nature!



i used the style that goes in the radiator hose, https://www.shopgreddy.com/collectio...related?page=2
the FD is 38mm. as a bonus the thing is metric.

my friend put something in the throttle body hose and that worked surprisingly well too



thanks you very much......



Hello, and happy Sunday, can you tell me if this broken water sensor is original? thanks you very much



yep! N3A1-15-610A and the seal is 8553-15-611



ok merci et celui avec la tresse en acier au-dessus à quoi ça sert ??



avec température de l'eau Greddy, https://www.shopgreddy.com/collectio...ducts/16401942



thanks you very much

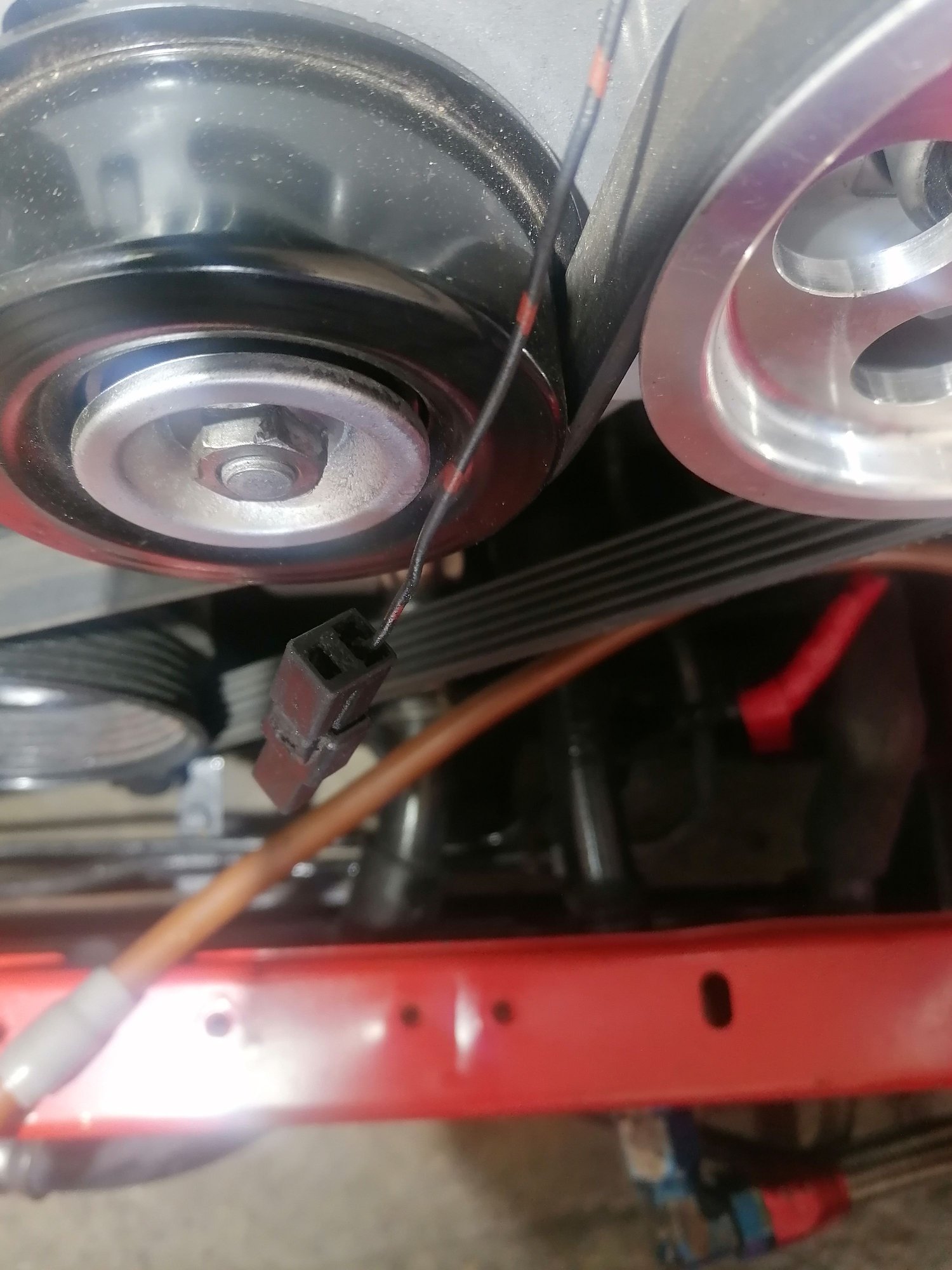

Bonjour, je ne vois pas où va ce câble. il est noir avec des cercles rouges, c’était sur le câblage OMP, merci beaucoup



on dirait que le niveau de refroidissement se déconnecte, ce câble doit aller où
