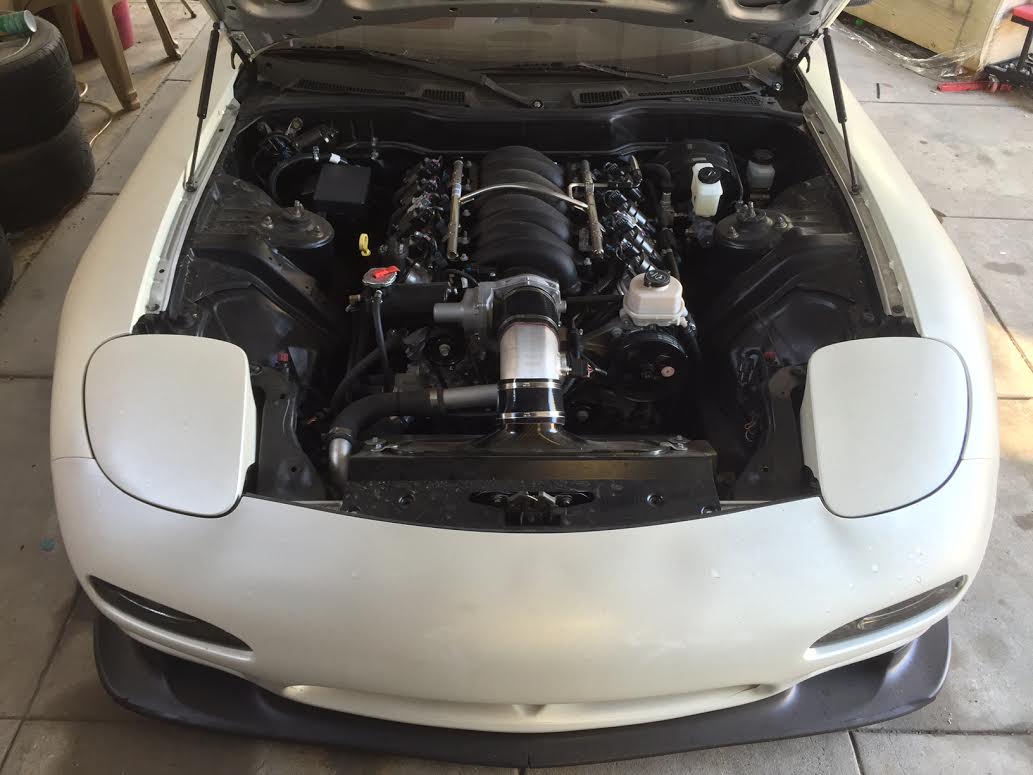

its not a rotary but.....



Before


After



So many gorgeous engine bays here!

Here is mine. Nothing exceptional.



Very hard to find correct position for Apexi twins with medium SMIC



2018 update:
before:
​

After:



2018 update



A recent one of mine.





Jacob. Really nice. Lots of black wrinkle finish paint and polished aluminum. I'd find some way to get rid of the chromed plastic "cage" over the filters, personally, but its all personal preferences.



Just finished conversion series 5 Turbo in an RX8



And another one done before xmas . Mazda 1000 pickup with 13b bridge port with 48 ida

webber





What turbo is on this? I am about to start a project upgrading from a PT6266 v-band inlet/outlet to a T4 divided hotside. Am planning for a shorty manifold that will fit with the air pump. clearly it would fit here.





It was a Garrett GT 35R I believe. Great turbo but before the Borg Warner EFR turbos came into being.



Other Shakitto plate will be installed after I figure out how to uninstall the stupid line-lock that is in the way.

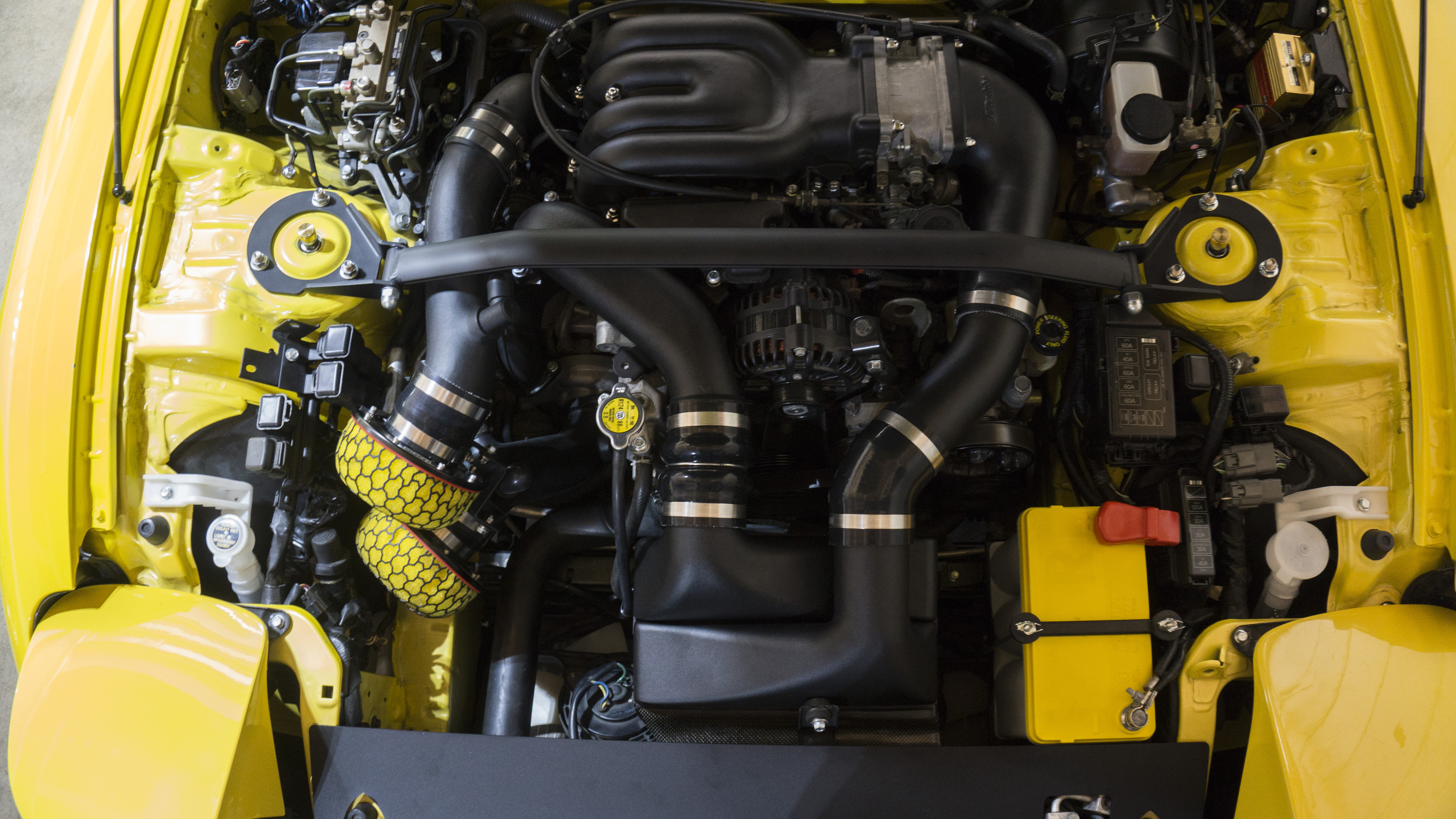

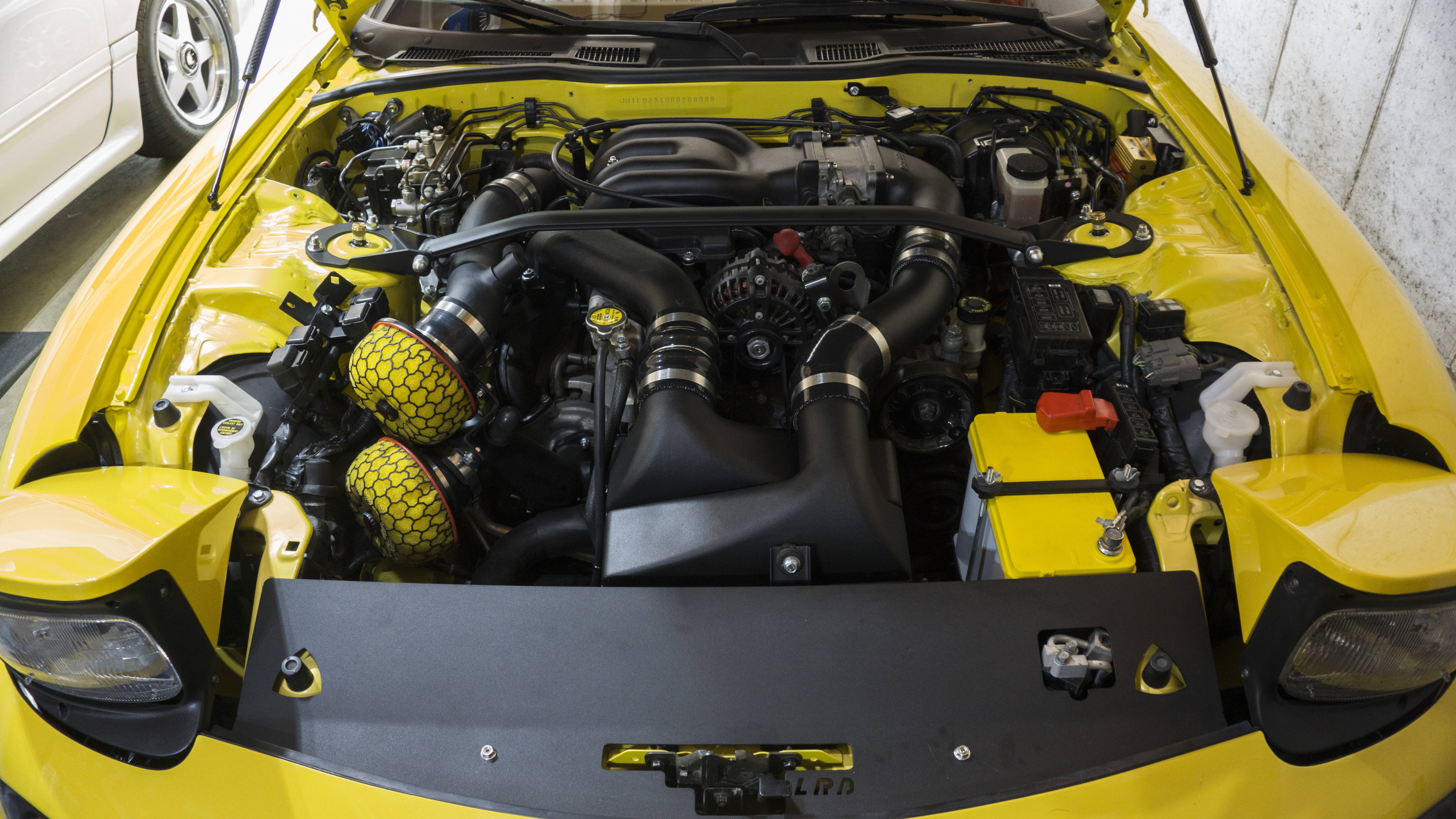

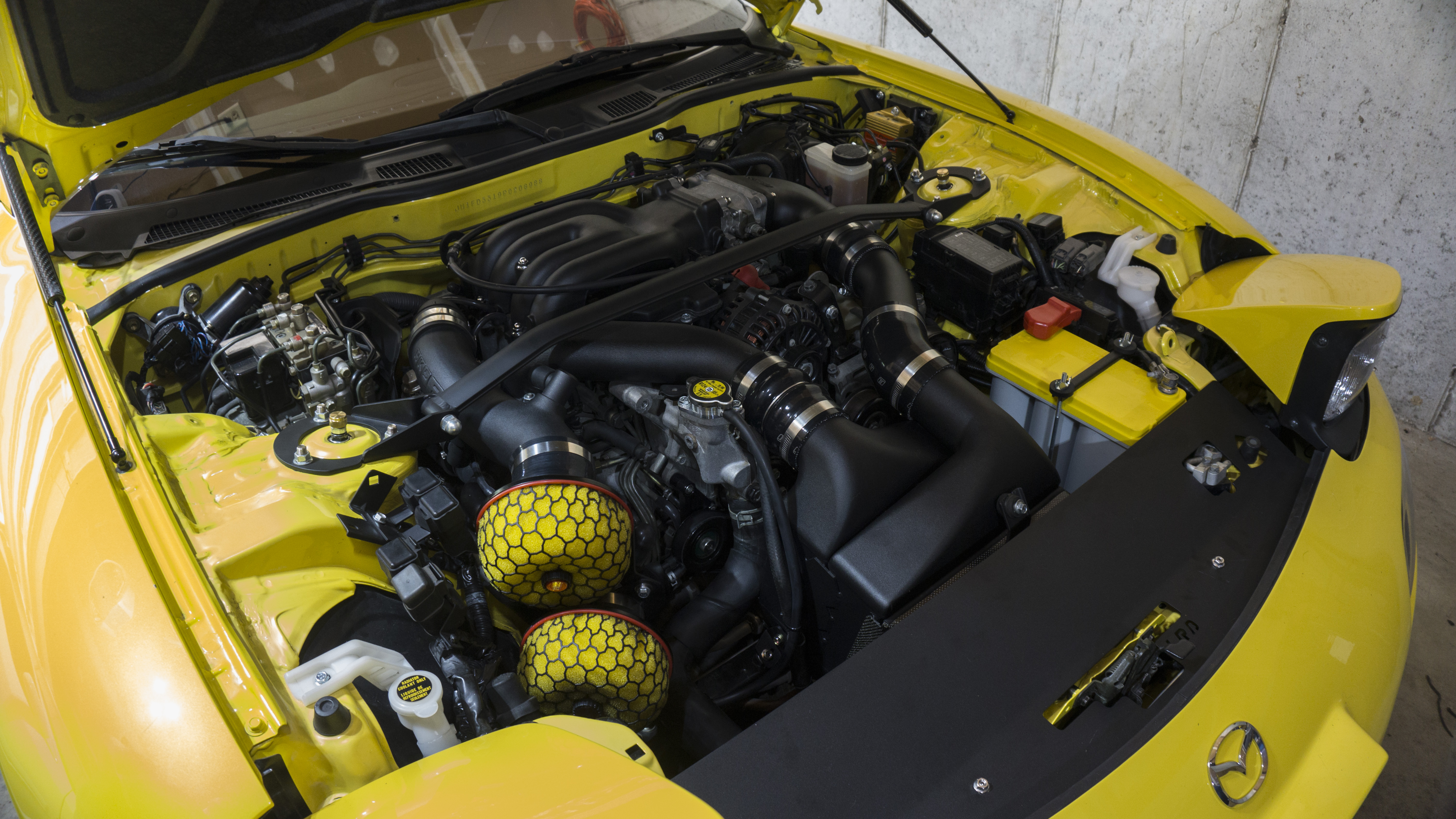

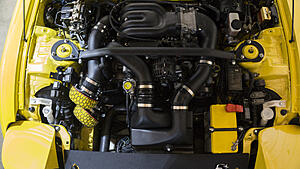

Here's mine currently. Couple more things to do (like powder TB).



Love the tiny little details of yellow, filters, battery, radiator cap. Good to see it's still got the twins too!



@Akomix What kind of intercooler is this? Beautiful engine bay!



Thank you! I really like the twins.

Thank you! It's a U-Type made by FD Motorsports out of Australia. They have a new kit coming out soon and it's going to be much better than this one!



Evolution of engine compartment continues. Waiting for the coil pack and fuel system (fuel rails, injectors, regulator) from IR Performance. At that time will add AEM fuel pressure and oil temp gauges and the upgraded oil spray lines.



finally got the last few parts finished in purple, right before I sold the car!



Feed Afflux... Where did you finally sell it and if you're okay with disclosing the price, how much did it eventually achieve? BaT was wrong not to auction it.

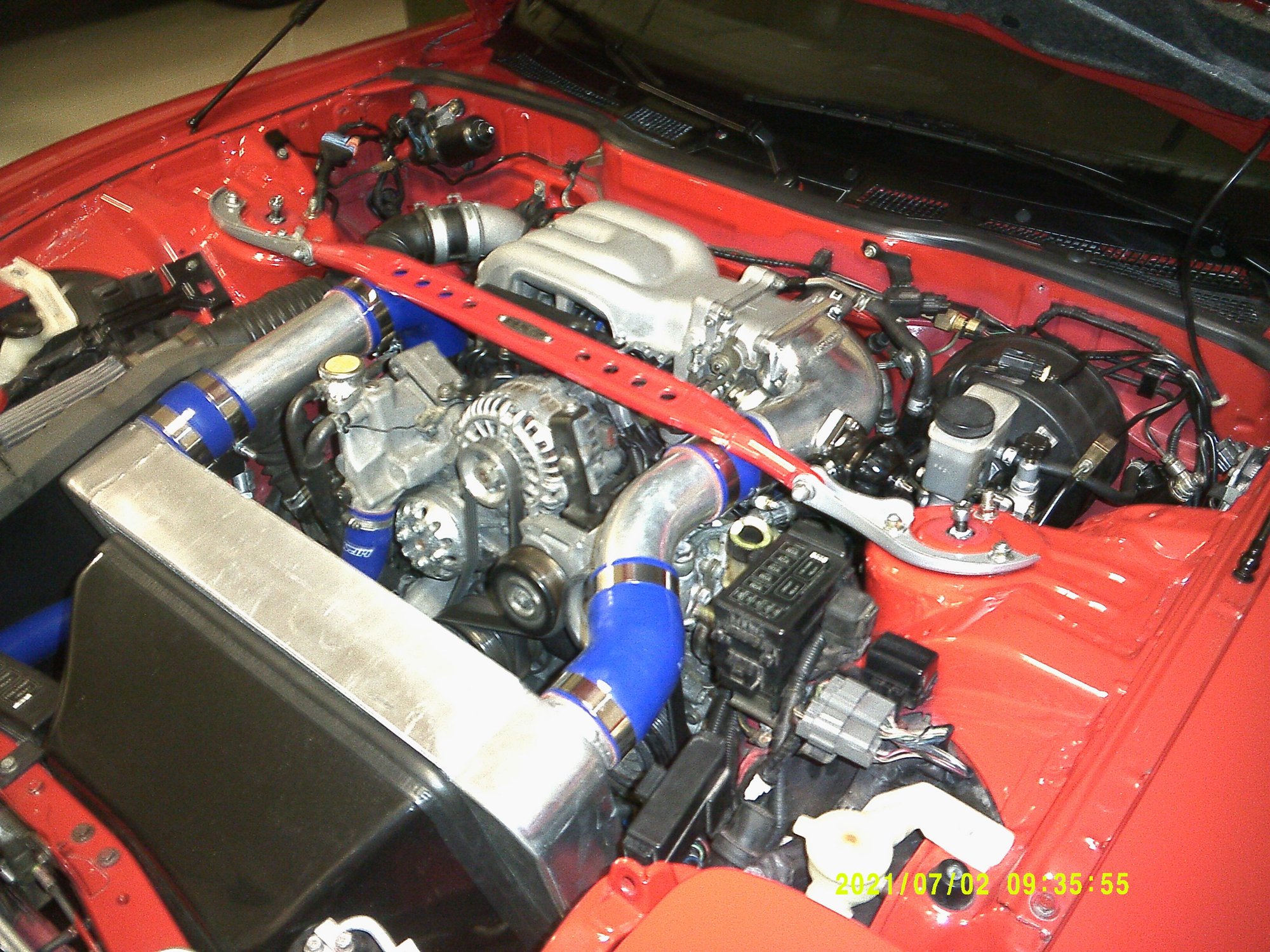

Here is my latest 2021 engine bay pic.





^ I'd rather not... that's like an automotive goatse imo...
