my suggestion for check valve replacements





Old 12-18-02, 06:38 PM
  #1
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
Thumbs up my suggestion for check valve replacements

From McMastercarr, these are pretty heavy duty, viton seals so they can take temps up to 400° F.

• Maximum Pressure: 1000 psi
• Cracking Pressure: 0.3 psi
• Maximum Temperature: Viton: 400° F

- Brass Spring-Loaded $8.86 EA
Poppet Check Valve 1/8" Male X
Male Nptf Dryseal Thrds, Viton O-Ring
Part number: 7775K61

http://www.mcmaster.com/cgi/enter.cgi?partnum=7775k61


I ordered 5 of these along with a pack of brass nipples to make a complete new check valve set, nice to instal while doing the hose job.

- Brass Hose Nipple, 1/8" Hose Id, 1/8" Female Nptf (dryseal) Threads - pack of 10
Part number: 5346K81

http://www.mcmaster.com/cgi/enter.cgi?partnum=5346K81
damian is offline
Old 12-19-02, 02:08 PM
  #2
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts

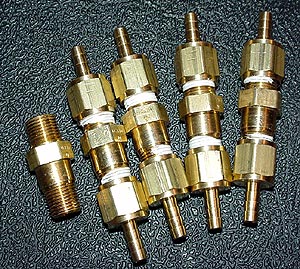

a picture of the check valves

damian is offline
Old 12-19-02, 02:17 PM
  #3
don't race, don't need to
5 Year Member

Join Date: Oct 2002
Location: Tri-Cities, WA
Posts: 1,292
Likes: 0
Received 1 Like on 1 Post
YAHOO!! Starting to look like a Kenworth under there. Maybe the Shuttle??

Cool sheet mon. Now my post whoring *** says adieu...
spurvo is offline
Old 12-19-02, 02:20 PM
  #4
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
:-) thanks, yeah ...they might be overkill, but I don't want to ever deal with a wack check valve again :-)
damian is offline
Old 12-19-02, 02:24 PM
  #5
Lives on the Forum

rynberg's Avatar

Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,717
Likes: 0
Received 2 Likes on 2 Posts
Holy @$#@! Now that's what I call hard core. And to think Mazda charges $35 for the plastic OEM ones.....
rynberg is offline
Old 12-19-02, 02:25 PM
  #6
Rotary Enthusiast
10 Year Member

MakoDHardie's Avatar

Join Date: Mar 2002
Location: DE, Taiwan
Posts: 751
Likes: 0
Received 0 Likes on 0 Posts
Hey, good idea for a post man. I replaced a check valve a couple months ago, but I got a lighter level of utility for it. Viton diaphram and all. It was this skinny little clear plastic one but it had the highest heat and cold tolerances and good pressure capability. I'm looking to replace the hole arrangement of them over winter when I do my hose job. I love the idea of using indestructable overkill parts.
MakoDHardie is offline
Old 12-19-02, 02:38 PM
  #7
jr
Senior Member
10 Year Member

jr's Avatar

Join Date: Feb 2001
Location: Queens, NY
Posts: 741
Likes: 0
Received 1 Like on 1 Post
I've heard of people using metal check valves from gas RC aircraft engines. Like the one's here - http://www2.towerhobbies.com/cgi-bin...ve&FVPROFIL=++
jr is offline
Old 12-19-02, 02:46 PM
  #8
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
hey JR, I purchased some of the Perry Check Valves a while back and didn't like the way they worked out, they are smaller than you think and even though they look cool, they don't fit on the hose very well becasue the barbs are so small.

not to mention that our cars generate much stronger vacuum/pressure forces than RC aircraft and they don't list the max pressure they can take, so its a gamble that they will hold up, especially if you are running higher boost levels

Last edited by damian; 12-19-02 at 02:49 PM.
damian is offline
Old 12-19-02, 02:58 PM
  #9
Senior Member
10 Year Member

FDjunkie's Avatar

Join Date: Oct 2002
Location: Bartlesville, OK.
Posts: 394
Likes: 0
Received 0 Likes on 0 Posts
Looks like a great idea for long-term performance and a cost savings to boot. When will you have them installed so that you can give us a report on how well they work?

Also, since these are so much larger/heavier than OEM’s are you planning to 'mount' them in some way to keep them from moving around; cable ties or???
FDjunkie is offline
Old 12-19-02, 03:07 PM
  #10
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
FDJunkie, my car is in storage until winter is over (i am in MN) so in might be a while before I can really test them. However, I will have them installed soon and if there is no snow on the ground will be 'test' driving around, but not pushing hard (too cold and on storage insurace)

Aslo, I do plan on mounting them somehow (zipties, whatever) so that they don't 'clank' around in there.
damian is offline
Old 12-19-02, 04:25 PM
  #11
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Likes: 0
Received 0 Likes on 0 Posts
Hey damian I love the intro to your site; very slick. It being a montego blue doesn't hurt either

When you going to have the rest finished?
DamonB is offline
Old 12-19-02, 05:21 PM
  #12
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
thanks DamonB, I appreciate it

I work on it when i have free time and I will try to get it finished over winter
damian is offline
