Wideband AFR and Dual EGT Gauge Pod
10-07-09, 11:28 PM
#5
BDC Motorsports
Thread Starter

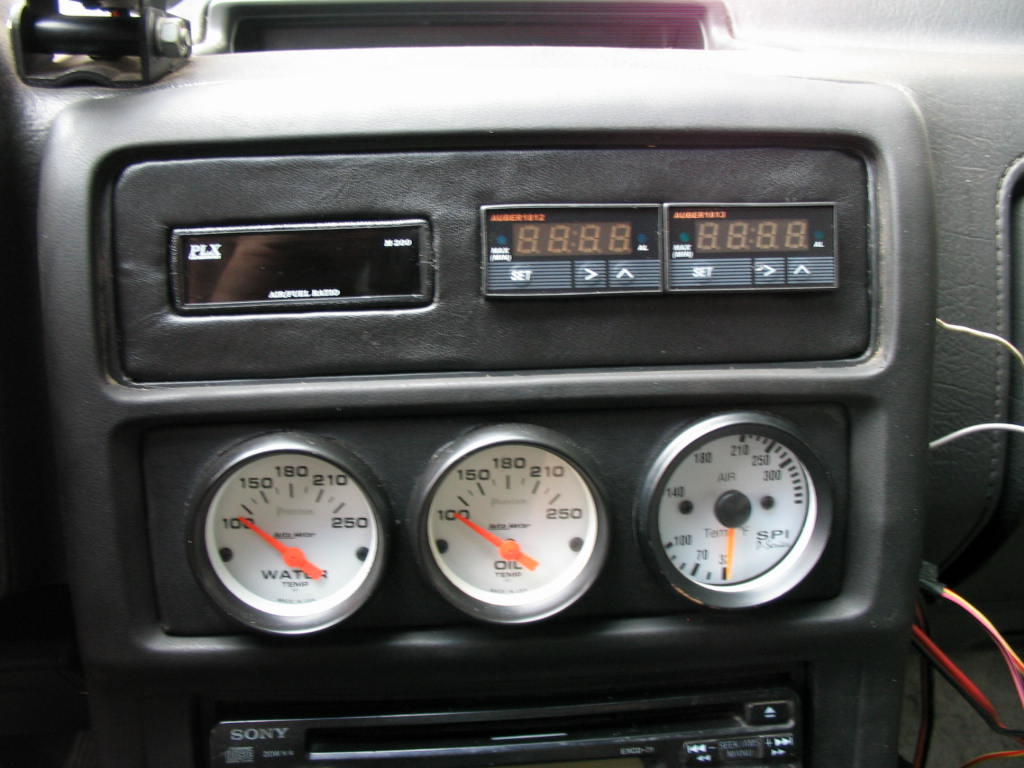

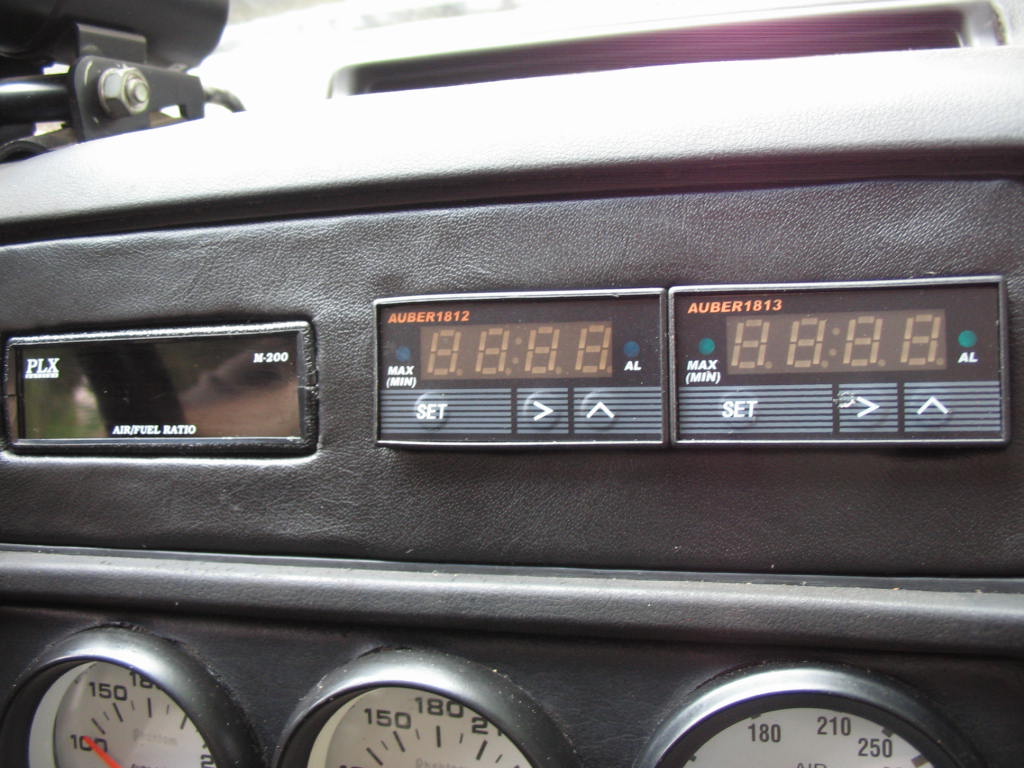

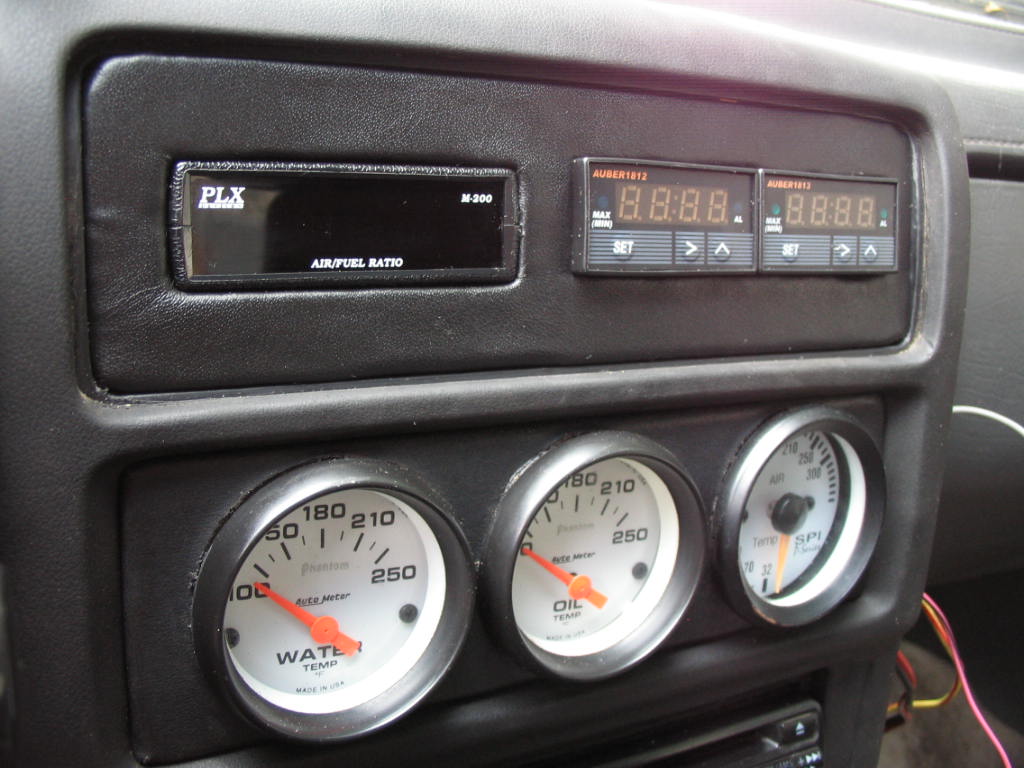

It's made out of wood with a sheet of black leather wrapped around it. I neglected to take photos of the construction process but it was fairly easy to do. It just required a jigsaw, grinding stones, and some hand files to make the two cut-out squares for the three gauges. From there, I cut the leather w/ an exacto knife on a cutting board (leaving enough leather to wrap around the edges to make the gauge pod appear "natural") and then cut "x" patterns in the centers of the two cut-outs for the gauges. Glue holds the leather on to the wood. Total cost was about $10 with the leather being about $8 of that. Pretty easy and fun. Made me feel like I was in middle school art class.
B
B
10-07-09, 11:56 PM
#7
BDC Motorsports
Thread Starter
You'd have to have a good reason for running 9 additional gauges in your cockpit.
I do. I'm a data and numbers freak. Plus, I use my car as an experimental test-bed for some of the things that eventually work their way down to customer cars.
B
I do. I'm a data and numbers freak. Plus, I use my car as an experimental test-bed for some of the things that eventually work their way down to customer cars.B
