Wheres the starter relay??
#3
Why am I here ?
Join Date: May 2002
Location: Boston, MA
Posts: 671
Likes: 0
Received 0 Likes
on
0 Posts
starter schematics for 89-92

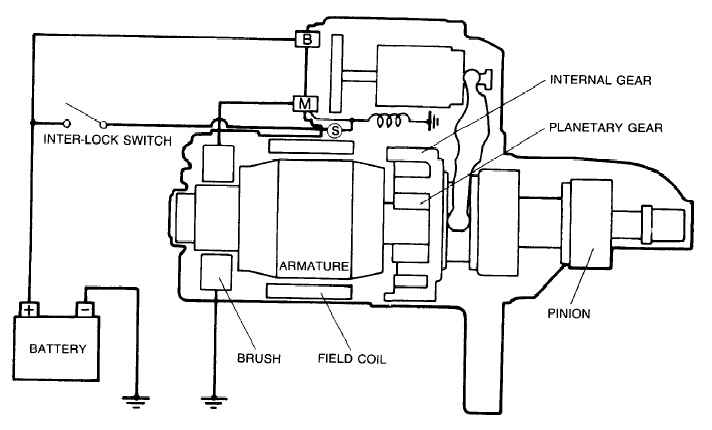

It's pretty straightforward to see the setup in the car from this diagram (just follow the big wires from the batt)
no starter relay, sorry
hugues -
It's pretty straightforward to see the setup in the car from this diagram (just follow the big wires from the batt)
no starter relay, sorry
hugues -
