Where does this wire go?
I was installing the mazdatrix strut tower brace with firewall mounts and engine brace, when I found a wire that was not connected to something. What is this, and where should it go?
05-15-09, 06:47 PM
#7
Junior Member
Thread Starter
Join Date: Mar 2006
Location: Bay Area, Cali
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
... or does it not even really matter?
Trending Topics
05-15-09, 08:41 PM
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
It's a bonding strap b/t the chassis and the engine/transmission. Goes to one of the bolts that holds the transmission and engine together. Offer it up to the nearest one. I've driven several yrs without that one being attached. But recommend attaching it to one of the bolts mentioned.
05-15-09, 09:17 PM
#9

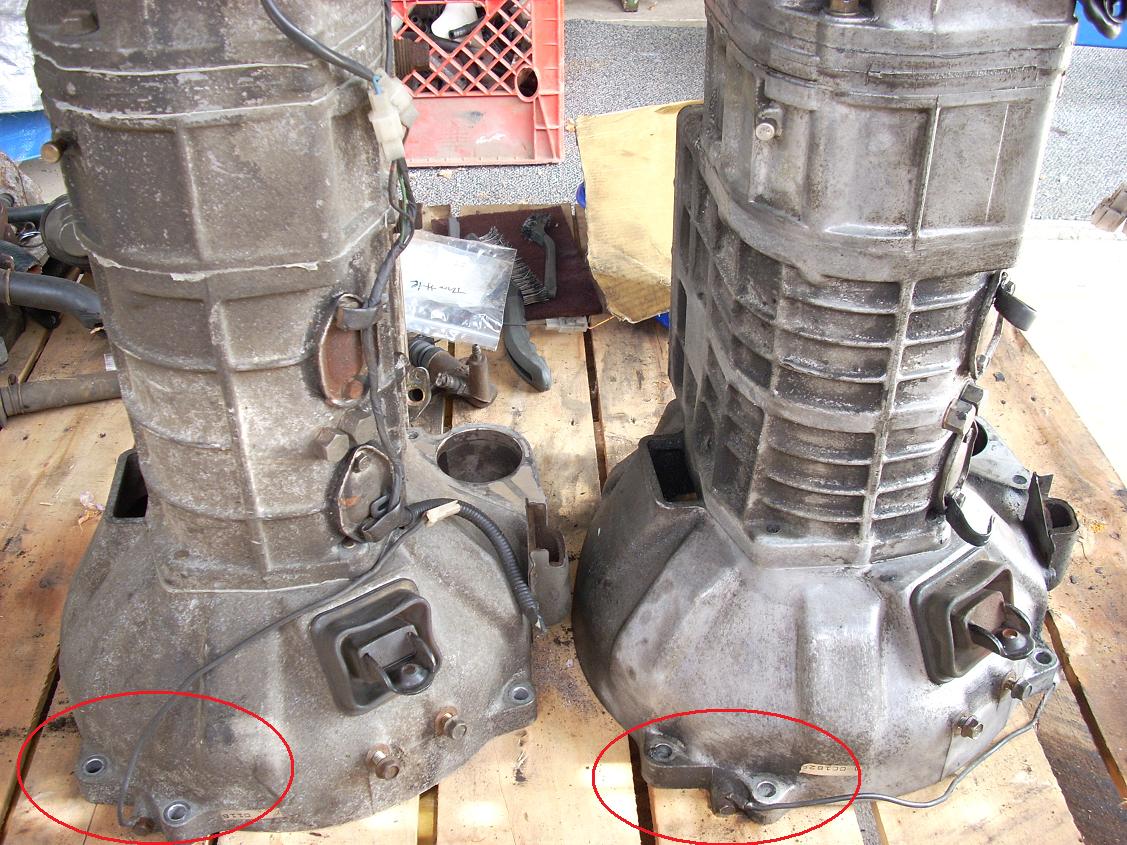

Not sure why people are saying it goes onto one of the main transmission bolts. It would never fit on one of those bolts, unless you modify it. I've attached a picture of my pair of TII transmissions. You can see both ground straps are attached to their own 10mm bolt. NA transmissions have the same thing in a slightly different spot. It doesn't matter where it goes on the block/bell housing, but there's no sense making it more difficult that it has to be.
05-15-09, 11:11 PM
#11
mmm doritos
iTrader: (4)
Join Date: Apr 2006
Location: lancaster PA
Posts: 2,107
Likes: 0
Received 0 Likes
on
0 Posts
follow the pics that rotaryrocket put up..on top of the tranny there is a specific 8mm hole where a 10mm head bolt will secure it too the tranny thru the ring connector in your first pic..if you dont figure it out by tomorrow ill take a pic of it with the tranny in the car if that makes it easier for you to locate..depending on weather you still have all your emissions and extra crap on your motor it may be more difficult to locate. but in reality you can ground it anywhere to the motor.
05-16-09, 12:34 PM
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
Not sure why people are saying it goes onto one of the main transmission bolts. It would never fit on one of those bolts, unless you modify it. I've attached a picture of my pair of TII transmissions. You can see both ground straps are attached to their own 10mm bolt. NA transmissions have the same thing in a slightly different spot. It doesn't matter where it goes on the block/bell housing, but there's no sense making it more difficult that it has to be.
"cause I forgot where it really goes and was tooooo lazzzzy to go look at a car.
