what is this and what does it do?

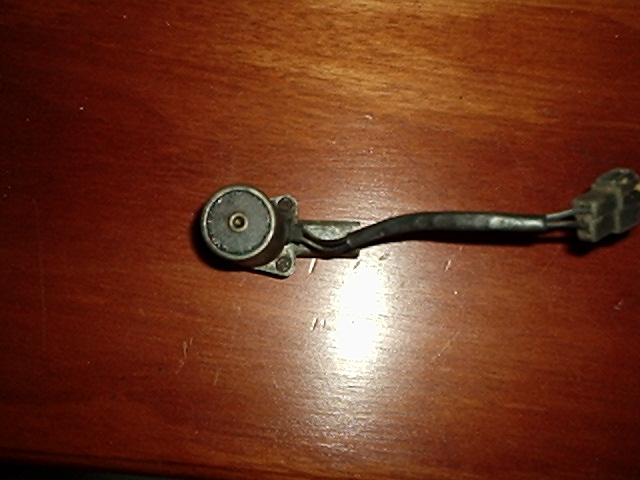

here i have attached some pics of a kind of solenoid that does who knows what...i would like to know what it is, what it does, and if its necessary for the operation of the car. thanks.
12-27-04, 08:37 AM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
It's the Air Supply Valve on a turboii. It injects air into the maifold during power steering inputs on a series four turboii.
The Air Bypass Valve is the one that works in conjunction with the bac and is located on top of the intake manifold. That Air Supply Valve is out of site, out of mind on the back of the manifold, opposite the firewall.
The Air Bypass Valve is the one that works in conjunction with the bac and is located on top of the intake manifold. That Air Supply Valve is out of site, out of mind on the back of the manifold, opposite the firewall.
12-27-04, 11:25 AM
#7
Full Member
Thread Starter
Join Date: Jun 2004
Location: Panama City, Panama
Posts: 215
Likes: 0
Received 0 Likes
on
0 Posts
power steering inputs? i dont have ps. ehm i found this behind the UIM and i dunno what it does, well from what you guys are telling me i can assume but is this necessary. I´m eliminating the ac from the car as well.
Trending Topics
12-27-04, 01:47 PM
#8
I live in an igloo
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
Like I said, its for the BAC, it lets air into the BAC via the selenoid. If you don't want your BAC, then you don't need that part.
*edit*
Actually it looks like the part that I was thinking about for the NA, but I realize now that you have a TII
I think hailers is right
*edit*
Actually it looks like the part that I was thinking about for the NA, but I realize now that you have a TII
I think hailers is right
Last edited by BlaCkPlaGUE; 12-27-04 at 01:50 PM.
12-27-04, 04:00 PM
#9
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
It's not for the BAC valve. It has nothing to do with the BAC valve. It opens to increase idle speed when the PS pump is operating (i.e. you're turning the wheel) or the hot-start assist system is operating.
12-27-04, 07:00 PM
#10
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Yep. On a series four TurboII, it's mounted on the back of the upper intake manifold. I don't have power steering either. I took mine off and put a dab of sealant over the hole that it feeds. I took off the EGR valve back there also. It does not seem to matter if the EGR is there or not during my emissions checks.
Someone, maybe SureShot uses the Air Supply Valve to boost his idle speed during certain situations. He has it rigged to something to actuate it. Not a bad idea.
You won't miss it if you don't have pwr steering. But plug the small hole that it fed on the back of the upper intake manifold. OR! Maybe I can sell you mine? Say.....fifty bucks? We can negotiate if that seems too cheap. (humor)
Someone, maybe SureShot uses the Air Supply Valve to boost his idle speed during certain situations. He has it rigged to something to actuate it. Not a bad idea.
You won't miss it if you don't have pwr steering. But plug the small hole that it fed on the back of the upper intake manifold. OR! Maybe I can sell you mine? Say.....fifty bucks? We can negotiate if that seems too cheap. (humor)
12-27-04, 09:40 PM
#12
Full Member
Thread Starter
Join Date: Jun 2004
Location: Panama City, Panama
Posts: 215
Likes: 0
Received 0 Likes
on
0 Posts
lol thanks guys...well i wont seem to be needing it then...a dab of sealant you say? might just have to do that. what is a dikfore? lol someone should start a thread about it :P
12-31-04, 12:10 AM
#14
Resident autoglass pro
iTrader: (1)
Join Date: Jul 2003
Location: edinburg PA
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Parastie
Oh why not...
What's a dikfore?
What's a dikfore?
If I was Batman, and you were Savington, I would probably be more than willing to show you
But alas, I am heterosexual. However, I have considered labeling this useless blue toggle in my car "dikfore" to see how many girls ask...
