what voltage should the ignition voltage rail have??

I measured mine to be 10.5 volts. Is it supposed to be that much lower than the battery voltage?

Reply
Old Jun 20, 2021 | 06:45 AM
  #2
mazdaverx713b's Avatar
Have RX-7, will restore
Veteran: Army
Tenured Member: 20 Years
Loved
Community Favorite
iTrader: (91)

Joined: Oct 2003
Posts: 22,577
Likes: 1,273
From: Ohio

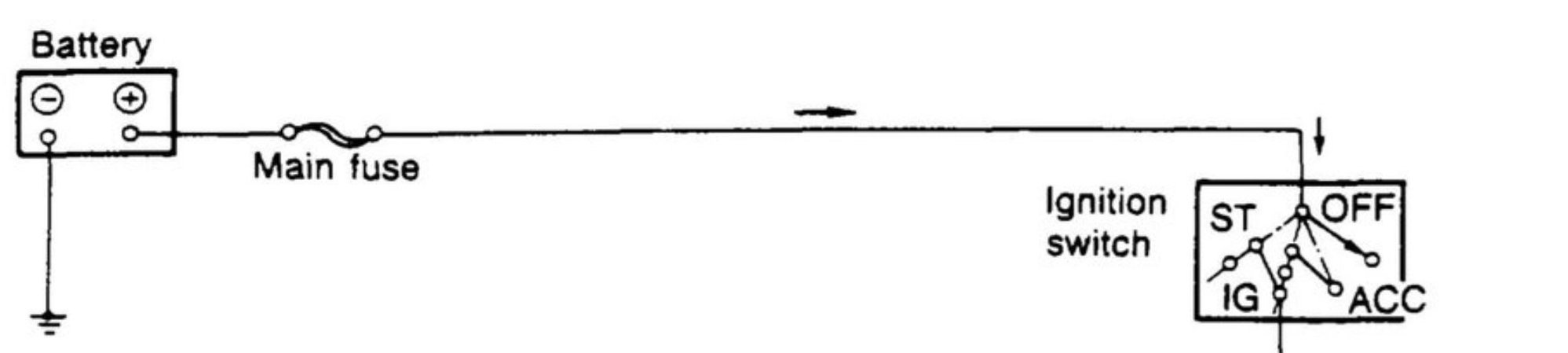

At the ignition switch you should see source voltage. So if your battery is 12.6V, you should see really close to that at the switch. Check your battery's voltage. It may be sitting at 10.5V. If not then you have a resistance issue in the wiring. Either corrosion, partially cut or frayed wiring or wiring that is pinched somewhere.
Reply
Old Jun 21, 2021 | 04:53 AM
  #3
gorge's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Jul 2009
Posts: 186
Likes: 4
From: Australia
turned out to be the latter. i think the previous owner wired the turbo timer in series with the ignition voltage rail and so there was a voltage divider
