What kind of halfshafts / axles / drive shafts are these?
11-04-08, 04:07 PM
#1
the EMULSIFIER
Thread Starter
iTrader: (14)
Join Date: Nov 2007
Location: Ottawa
Posts: 524
Likes: 0
Received 0 Likes
on
0 Posts
What kind of halfshafts / axles / drive shafts are these?
I am trying to figure out what kind of shafts I have in this donor car im taking apart. I took out the diff, and it appears to be LSD. But I do not know whether it is turbo or NA lsd, so I chose to investigate the shafts that came with it.
Attached you will find a pic.

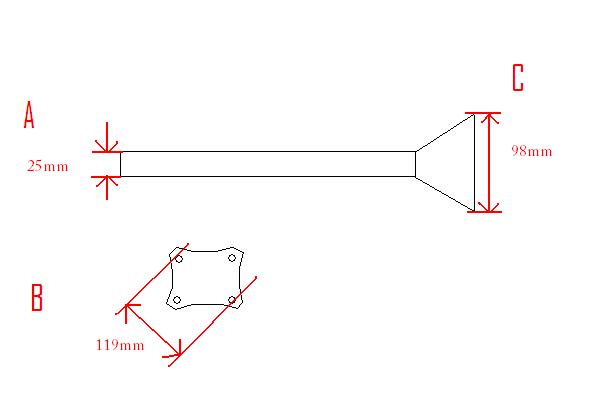

Measurement A is the diameter of the shaft itself
Measurement B is HORIZONTAL distance between either two holes on the shaft mating surface, or two bolts on the diff mating surface. Note that the measurement was taken from the OUTERmost portion of each of the two holes.
Measurement C is the outer diameter of the DIFF mating surface Boot. (not the same as the wheel-mating boot)
If someone could compare these pics to their shafts/diff or to their knowledge and let me know, that would be great!
Attached you will find a pic.
Measurement A is the diameter of the shaft itself
Measurement B is HORIZONTAL distance between either two holes on the shaft mating surface, or two bolts on the diff mating surface. Note that the measurement was taken from the OUTERmost portion of each of the two holes.
Measurement C is the outer diameter of the DIFF mating surface Boot. (not the same as the wheel-mating boot)
If someone could compare these pics to their shafts/diff or to their knowledge and let me know, that would be great!
