What the hell is it
#1
Full Member
Thread Starter
Join Date: Jul 2005
Location: derry nh
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
What the hell is it

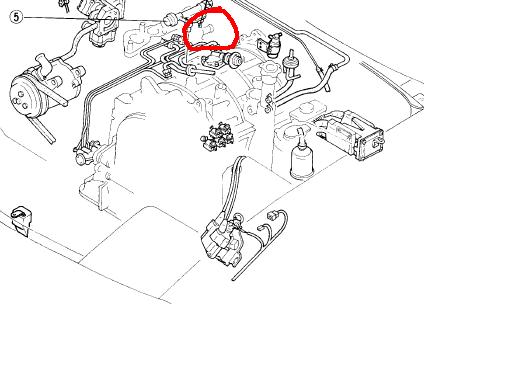

Could someone please tell me what this is. Im putting in my rebuilt motor and dont know what connects there or if i can just block it off or not. It is on the backside of the lim. Thanks
#5
Passing life by
Originally Posted by NeCr0mStR
what year and is it on the engine or what I don't know what the LIM is sorry
There should be nothing on the LIM. The only thing it could be is as posted split air pipe from the ACV.
Trending Topics
#10
Full Member
Thread Starter
Join Date: Jul 2005
Location: derry nh
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Its an s5 engine with an s4 intake and by back side i meant the side facing the fire wall. i dont have any extra hoses to hook up to it so i dont know if the previous owner just took it off and kept it that way
#12
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Jeez this thread is frustrating. I don’t have an NA so I'm not sure what it is but I can tell you that it is on the LIM (you can see it clearly in several FSM pictures) and it is not a heater hose (their connections are nowhere near the LIM). My guess would be brake booster, but surely someone with an NA can just go out to their car and look? How hard is that?
#14
Passing life by
Originally Posted by NZConvertible
Jeez this thread is frustrating. I don’t have an NA so I'm not sure what it is but I can tell you that it is on the LIM (you can see it clearly in several FSM pictures) and it is not a heater hose (their connections are nowhere near the LIM). My guess would be brake booster, but surely someone with an NA can just go out to their car and look? How hard is that?
I assume the photo is showing the pipe from the ACV.
#16
I wish I was driving!
Originally Posted by NZConvertible
Jeez this thread is frustrating. I don’t have an NA so I'm not sure what it is but I can tell you that it is on the LIM (you can see it clearly in several FSM pictures) and it is not a heater hose (their connections are nowhere near the LIM). My guess would be brake booster, but surely someone with an NA can just go out to their car and look? How hard is that?
Its not the brake booster line.
Its not the coolant line.
We know its an S4 N/A... look at the EGR valve located on the center iron.
Look at the ACV valve... Hose going into the ACV from the air pump, but no hose coming out of the ACV.
On the S4 turbo models, the air also travels through the LIM, but there is no nipple. In its place is a flange mounted pipe, mounted on the back edge of the runners. The EGR valve on the turbos is located where this pipe is shown.
Answer: Its the split air pipe which connects to the catalytic convertor on an S4 N/A only.
#17
I wish I was driving!
Originally Posted by iceblue
The only thing I remember on the lim was the ACV same as turbo and the 6pt.
There are 3 different S4 ACV's.
The N/A manual trans, the N/A auto trans, and the turbo.
To go even further, the turbo ACV's have a different bolt pattern than the N/A ones.
They are completely different units.
You are right, though, that this is a pipe from the ACV... its just not connected to the ACV. Its connected to the LIM.
#19
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by scathcart
We know its an S4 N/A... look at the EGR valve located on the center iron.
Great to see and answer finally!
#21
Full Member
Thread Starter
Join Date: Jul 2005
Location: derry nh
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Im asuming that this was responsible for supplying the actuators with the back pressure needed. But i dont have the auxilary system set up so is this just gonna create a vacuum leak if it is not pluged up
Or i could be completly wrong about what its for.... i just need to know whether or not its gonna create problems with starting up the engine
Or i could be completly wrong about what its for.... i just need to know whether or not its gonna create problems with starting up the engine
Last edited by dirttracker64; 01-19-06 at 09:07 AM.
#22
Boost in..Apex seals out.
Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes
on
0 Posts
It WILL NOT create problems when starting up the car. I ran without it for a long while. It DOES create a vac leak, but it's only about 90-125 RPM worth of a vac leak.
Go to Advance Auto or NAPA, and look for a normally *very* small display of "HELP" brand products. Get the biggest cap they sell, called the "Bypass Cap" --- It is a perfect fit. Little bit of RTV on the nipple, cap on, and a clamp.
Go to Advance Auto or NAPA, and look for a normally *very* small display of "HELP" brand products. Get the biggest cap they sell, called the "Bypass Cap" --- It is a perfect fit. Little bit of RTV on the nipple, cap on, and a clamp.
#23
Passing life by
Originally Posted by dirttracker64
Im asuming that this was responsible for supplying the actuators with the back pressure needed. But i dont have the auxilary system set up so is this just gonna create a vacuum leak if it is not pluged up
Or i could be completly wrong about what its for.... i just need to know whether or not its gonna create problems with starting up the engine
Or i could be completly wrong about what its for.... i just need to know whether or not its gonna create problems with starting up the engine
After the thread is awnserd we get this useless post.
Originally Posted by DriftingB26RX7
looks like the ABS thing
#25
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by HAILERS
Bunch of dummiies. It's where you connect the brake booster feed. Different than a turbo feed tube. Noooooobies all.
