What does this valve do?
05-31-05, 12:27 AM
#1
Passing life by
Thread Starter
What does this valve do?

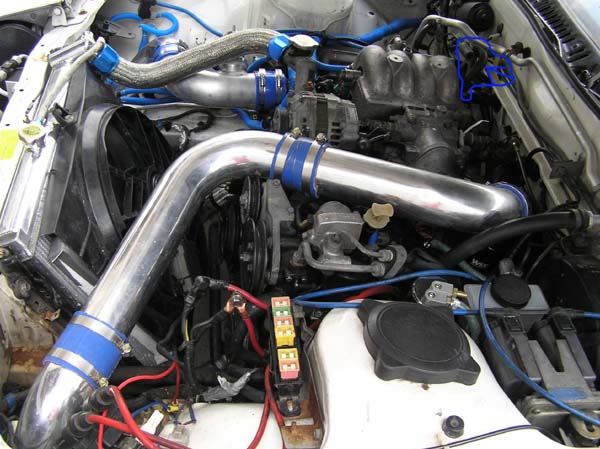

Pic shows the hose going to the valve I am inquiring about. It seems to open up and pump air into engine "vacuum enhanced like BACV" only when first started as I can tell. It used to connected to the TIMC.
What is its purpose?
Is it to pull metered air or atmospheric air?
Remove it or filter it or if metered air hook it up?
What is its purpose?
Is it to pull metered air or atmospheric air?
Remove it or filter it or if metered air hook it up?
05-31-05, 12:34 AM
#3
Passing life by
Thread Starter
Originally Posted by Karack
part of the AWS and aids in idle stability on power steering equipped cars.
Now.
Is it to pull metered air or atmospheric air?
Remove it or filter it or if metered air hook it up?
05-31-05, 12:37 AM
#4
it is metered air bypassing the throttle plates to raise idle. personally the AWS is a POS system and i am going to remove mine as soon as i do the emissions removal and FMIC, it doesn't do anything on my car anyways since the AWS is inoperative.
personally i would just leave it in there and leave it as is or disconnect it unless you have power steering then it has it's alternate uses.
personally i would just leave it in there and leave it as is or disconnect it unless you have power steering then it has it's alternate uses.
05-31-05, 12:45 AM
#5
Passing life by
Thread Starter
Originally Posted by Karack
it is metered air bypassing the throttle plates to raise idle. personally the AWS is a POS system and i am going to remove mine as soon as i do the emissions removal and FMIC, it doesn't do anything on my car anyways since the AWS is inoperative.
personally i would just leave it in there and leave it as is or disconnect it unless you have power steering then it has it's alternate uses.
personally i would just leave it in there and leave it as is or disconnect it unless you have power steering then it has it's alternate uses.
and it looks like all the smog related valves are blocked off already?
Trending Topics
05-31-05, 01:03 AM
#8
Passing life by
Thread Starter
Originally Posted by Curtisleeyoung
Which valve are you talking about? I looked at the picture of our engine and it looks like all the smog related valves are blocked off already?
05-31-05, 01:13 AM
#10
Passing life by
Thread Starter
Originally Posted by Karack
pull it off and cap it, if it is even activating it is pulling unmetered air and will run rich.
05-31-05, 03:58 AM
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
This is a real confusing post. No picture in the beginning.
On the back of the upper intake manifold, facing the firewall, is the AIR SUPPLY VALVE. It is used for power steering on a series four and according to NZ convertible and the fsm wiring diagram, is also used during HOT START when the PRCV, pressure regulating control valve, is energized for hot starting conditions.
It takes metered air from the intercooler and bypasses the throttle plates to feed air past the throttle body.
There is another valve used during cold starts. It's called the Air Bypass Solenoid Valve and is used in conjunction with the BAC during cold starts. That one is also fed metered air from the intercooler on a series four. It is activated for only seventeen seconds during cold starts and never used again. That one is mounted on TOP of the upper intake manifold. The Air Supply Valve is mounted BEHIND or on the back of the upper intake manifold.
On the back of the upper intake manifold, facing the firewall, is the AIR SUPPLY VALVE. It is used for power steering on a series four and according to NZ convertible and the fsm wiring diagram, is also used during HOT START when the PRCV, pressure regulating control valve, is energized for hot starting conditions.
It takes metered air from the intercooler and bypasses the throttle plates to feed air past the throttle body.
There is another valve used during cold starts. It's called the Air Bypass Solenoid Valve and is used in conjunction with the BAC during cold starts. That one is also fed metered air from the intercooler on a series four. It is activated for only seventeen seconds during cold starts and never used again. That one is mounted on TOP of the upper intake manifold. The Air Supply Valve is mounted BEHIND or on the back of the upper intake manifold.
