What does this vacuum nipple go to?
08-07-09, 09:53 PM
#1
One piece at a time
Thread Starter
iTrader: (2)
Join Date: Mar 2005
Location: Wisconsin
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
What does this vacuum nipple go to?

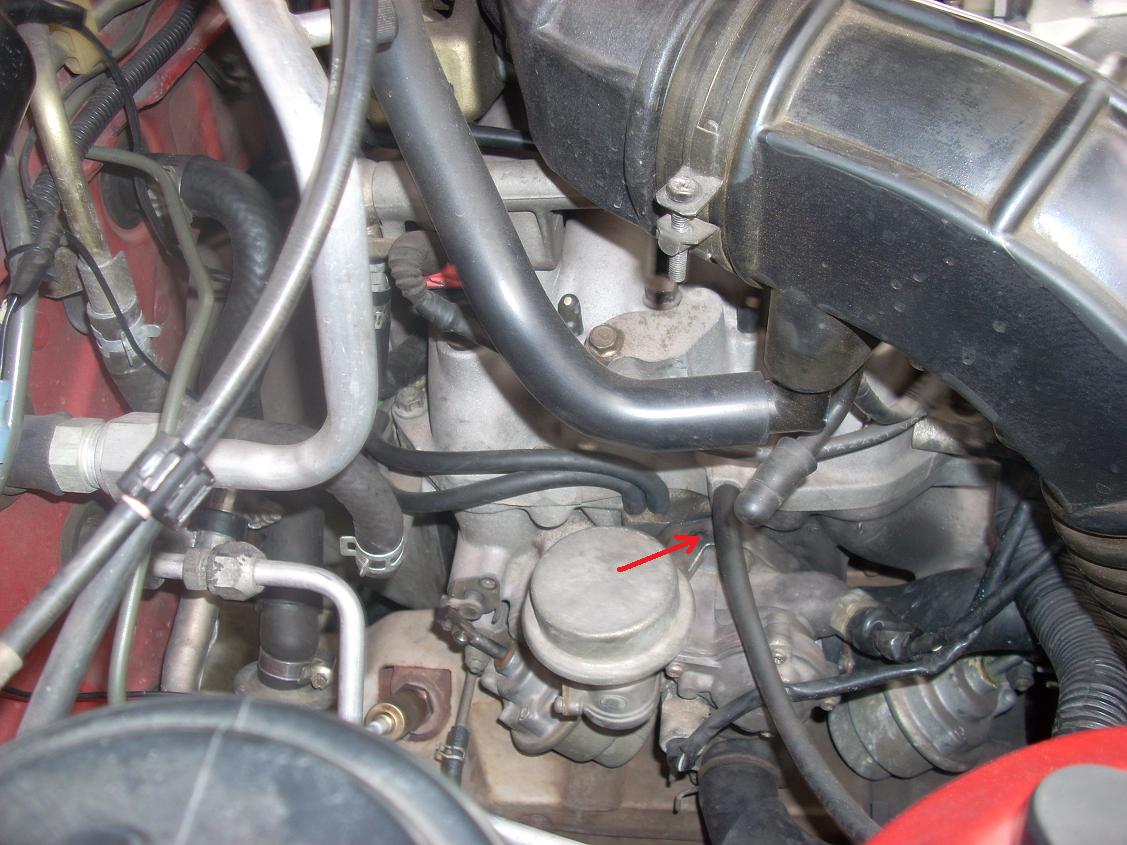

Right above the block-off plate (in between the dashpots) there is a black vacuum cap. what is intended to attach here?
08-07-09, 10:21 PM
#4
One piece at a time
Thread Starter
iTrader: (2)
Join Date: Mar 2005
Location: Wisconsin
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
It is the same one featured in the second photo posted. I just got done putting a rebuild in and removing the emissions . I can't find anything to plug in to it..but noticed that it wasn't addressed in the emissio0ns removal procedure.
08-08-09, 08:24 AM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

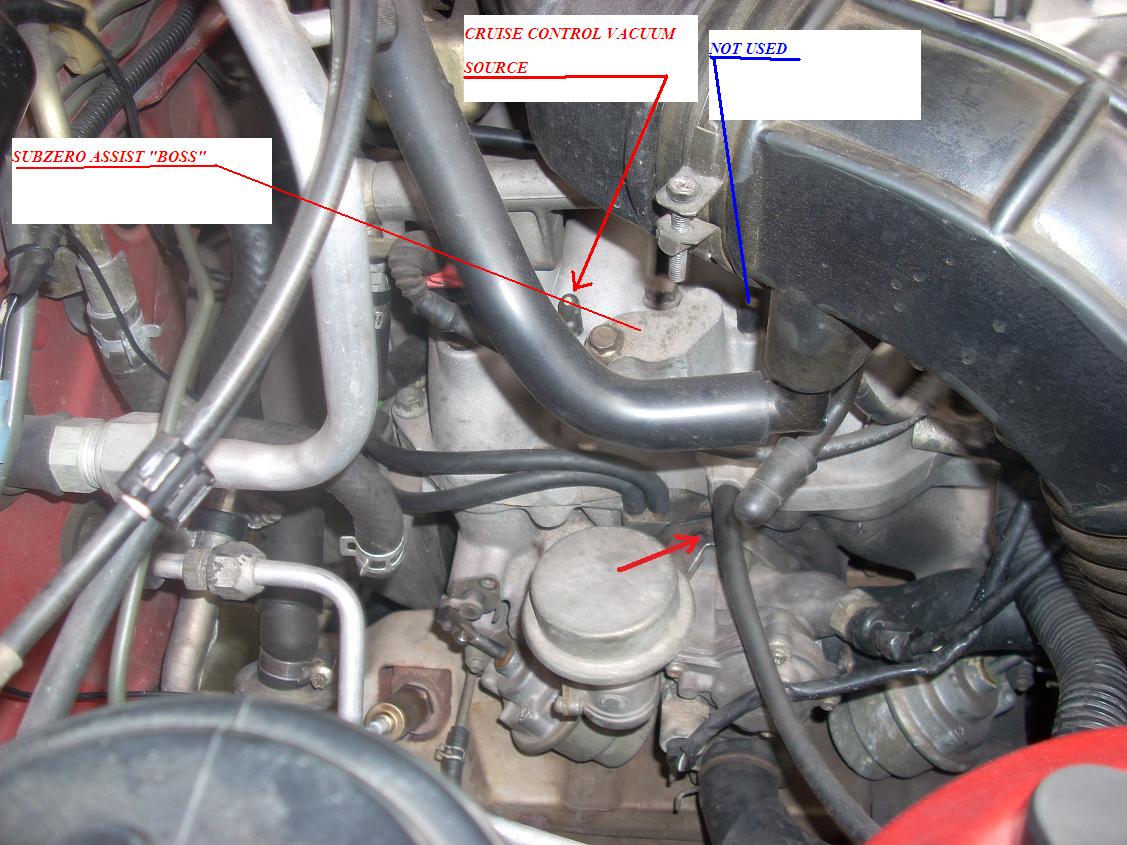

On a non turobo 1986 RX, it's for the vacuum operated Cruise Control. The other one fwd of it is not used.
I glued a quarter over the subzero's vacuum source years ago. I bet that cost less than your blockoff plate.
EDIT: I might revise that answer later. I've been using it for the cruise control vacuum source for some time. But looking at the 1986 non turbo Fuel and Emissions section of the online FSM, they, in their vacuum diagram, seemingly show two hose coming from that area going over to the other side of the engine. But then again, they also show the vacuum line for the primary injector bleed on the wrong side of the manifold which is wrong.
I glued a quarter over the subzero's vacuum source years ago. I bet that cost less than your blockoff plate.
EDIT: I might revise that answer later. I've been using it for the cruise control vacuum source for some time. But looking at the 1986 non turbo Fuel and Emissions section of the online FSM, they, in their vacuum diagram, seemingly show two hose coming from that area going over to the other side of the engine. But then again, they also show the vacuum line for the primary injector bleed on the wrong side of the manifold which is wrong.
Trending Topics
08-08-09, 11:54 AM
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Drawings of the vacuum lines for a series four non turbo are found on this site in the FAQ thread. See dwg (some errors on that dwg though).
