What does this plug in to?
#1
What does this plug in to?

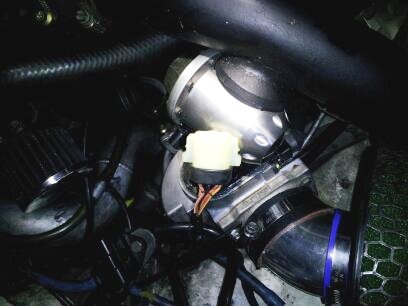

We just installed my new engine, along with a new replacement harness, the engine will crank but will not start, its getting spark, the ecu is initiated, but does not seem to be getting fuel. This plug does not seem to go to anything and was not on the old harness. It is on the right side in front of the shock tower and near the air flow meter.

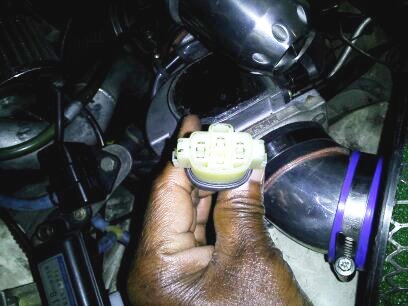

I took a picture of it to show you all. It was covered in blue tape when we unpackaged it.
We haven't had time to trace the circuits yet, we just wanted to know what this plugs to.
I took a picture of it to show you all. It was covered in blue tape when we unpackaged it.
We haven't had time to trace the circuits yet, we just wanted to know what this plugs to.
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
it plugs into the resistor pack for the fuel injectors.
If the car has LO impedance injectors then they use that resistor pack and add the resistance so that the ECU sees HI impedance.
You can't just have that disconnected.Th injectors will not see power.
(UNLESS someone bypassed it Before that connector and wired it to HI impedance injectors).
Is there any other Modifications done around that area?..and do you know what the injector impedance is?
If the car has LO impedance injectors then they use that resistor pack and add the resistance so that the ECU sees HI impedance.
You can't just have that disconnected.Th injectors will not see power.
(UNLESS someone bypassed it Before that connector and wired it to HI impedance injectors).
Is there any other Modifications done around that area?..and do you know what the injector impedance is?
#5
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
That connector plugs INTO the resistor pack.
86-88 ran LO impedance
they changed around 87.5 to HI impedance with NO resistor pack and the harness omitted that connector.
NOW if you Have HI impedance injectors(best to double check).then you can either cut and splice that area of wiring OR get a old resistor pack and use the connector off it.
what you do is Gang all the wires together and it creates continuity to the injectors.
86-88 ran LO impedance
they changed around 87.5 to HI impedance with NO resistor pack and the harness omitted that connector.
NOW if you Have HI impedance injectors(best to double check).then you can either cut and splice that area of wiring OR get a old resistor pack and use the connector off it.
what you do is Gang all the wires together and it creates continuity to the injectors.
#6
That connector plugs INTO the resistor pack.
86-88 ran LO impedance
they changed around 87.5 to HI impedance with NO resistor pack and the harness omitted that connector.
NOW if you Have HI impedance injectors(best to double check).then you can either cut and splice that area of wiring OR get a old resistor pack and use the connector off it.
what you do is Gang all the wires together and it creates continuity to the injectors.
86-88 ran LO impedance
they changed around 87.5 to HI impedance with NO resistor pack and the harness omitted that connector.
NOW if you Have HI impedance injectors(best to double check).then you can either cut and splice that area of wiring OR get a old resistor pack and use the connector off it.
what you do is Gang all the wires together and it creates continuity to the injectors.
#7
(blank)
iTrader: (1)
You woudn't get a jump connector with the harness. Just do like styx said, connect all the pins (I don't like cutting harnesses, so I'd just use wires and connectors).
On a car with fuel inj. resistor, one of those wires would send 12V to one side of a resistor, and four would come out on the other side of the resistor to the injectors. The ECU supplies the ground to turn the injectors on.
See post #2, pic. #5 here:
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/pictures-various-sensors-na-reference-671004/
On a car with fuel inj. resistor, one of those wires would send 12V to one side of a resistor, and four would come out on the other side of the resistor to the injectors. The ECU supplies the ground to turn the injectors on.
See post #2, pic. #5 here:
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/pictures-various-sensors-na-reference-671004/
Trending Topics
#8
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
so the harness is meant for low impedance injectors, if you have the high impedance injectors still, find a used resistor pack, and cut the resistor off, and solder/crimp the wires together. in the future if you go to low impedance injectors, the resistor pack will be plug and play.
#9
Sharp Claws
iTrader: (30)
odd that mazdatrix would sell you the wrong harness without asking, considering they should know better than the early harness would NOT work.
find an old resistor pack and cut the connector off, cut and bunch up the wires and solder them all together and wrap the bundle. problem solved.
edit: or what ^ said.
find an old resistor pack and cut the connector off, cut and bunch up the wires and solder them all together and wrap the bundle. problem solved.
edit: or what ^ said.
#11
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
odd that mazdatrix would sell you the wrong harness without asking, considering they should know better than the early harness would NOT work.
find an old resistor pack and cut the connector off, cut and bunch up the wires and solder them all together and wrap the bundle. problem solved.
edit: or what ^ said.
find an old resistor pack and cut the connector off, cut and bunch up the wires and solder them all together and wrap the bundle. problem solved.
edit: or what ^ said.
i bought a new harness for mine in like 1999, so i ran into this. BTW the new harness is a work of art, its beautiful.
#12
We made a one wire to 4 wire jumper, so it starts now.
Now, we have 2 other problems, the alternator froze up(one of those super-duper ones) and its only running on 1 rotor. we have good compression and spark, so, he thinks one of the injector plugs is not secure. Anyway, he told me I should be able to pick it up on Friday.
Thanks for all your help, that's what got it running for us.
Now, we have 2 other problems, the alternator froze up(one of those super-duper ones) and its only running on 1 rotor. we have good compression and spark, so, he thinks one of the injector plugs is not secure. Anyway, he told me I should be able to pick it up on Friday.
Thanks for all your help, that's what got it running for us.
