What is this for?

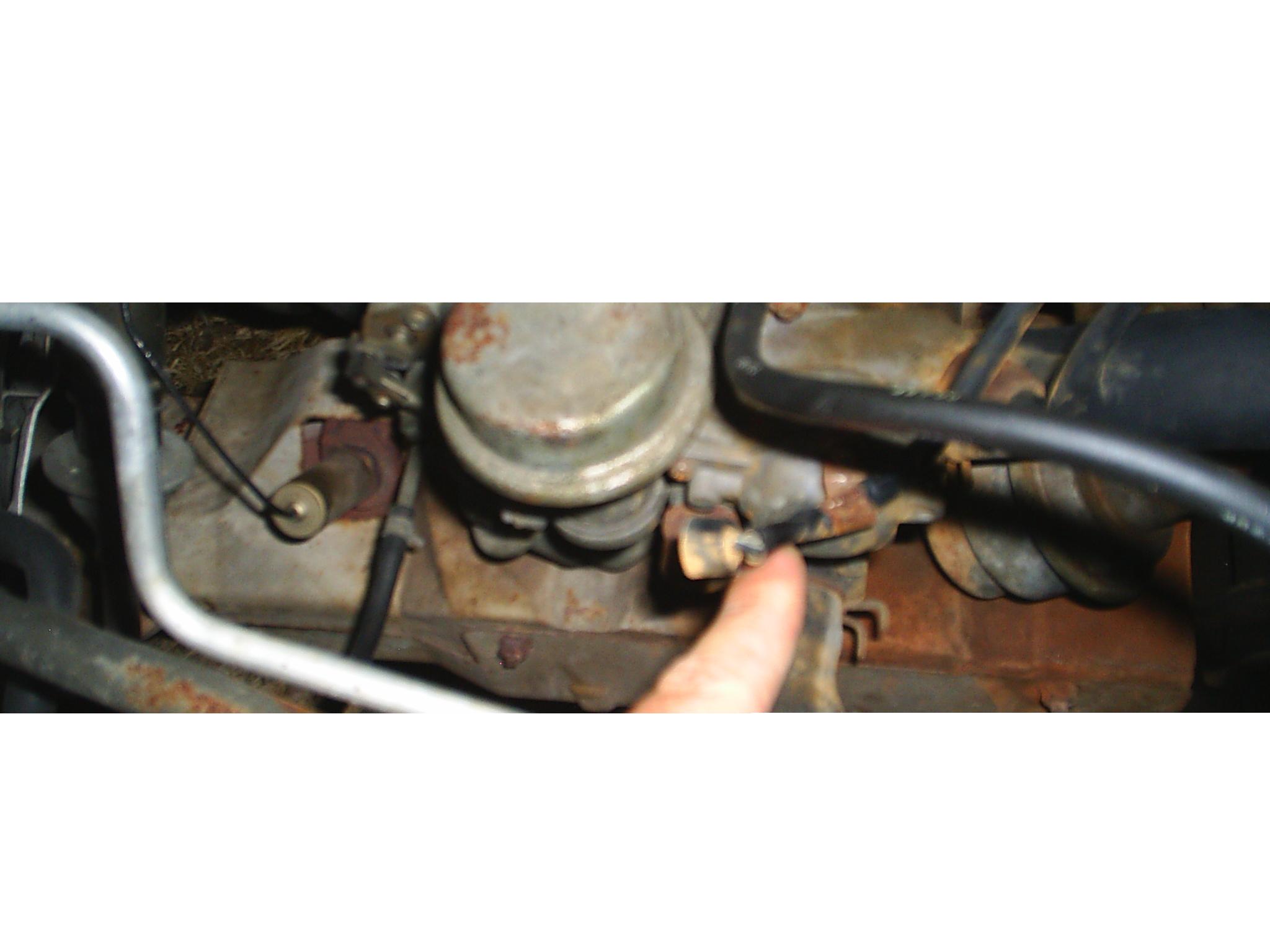

Hope the picture works... I just got rid of my first gen and now have a 86 and im not sure what this is? can anyone help? Thanks in advance
Attached Thumbnails What is this for?-copy-2-picture-415.jpg
onefastrx712a is offline
Reply Like
Old 10-20-08, 08:29 PM
  #2
NASA-MW ST4

iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Norcal, Bay Area
Posts: 3,800
Likes: 0
Received 3 Likes on 3 Posts
Aux Port Actuator
farberio is offline
Reply Like
Old 10-20-08, 08:40 PM
  #3
Senior Member

Thread Starter
iTrader: (1)

onefastrx712a's Avatar

Join Date: Oct 2004
Location: San Leon
Posts: 320
Likes: 0
Received 0 Likes on 0 Posts
well thanks for the fast response farberio . can you elaborate a little more? what is it for? what will it do being broke like that? Thanks again .....
onefastrx712a is offline
Reply Like
Old 10-20-08, 09:27 PM
  #4
MODERATOR


iTrader: (137)

Alex Rodriguez's Avatar

Join Date: Jan 2005
Location: Houston Texas
Posts: 6,441
Received 9 Likes on 8 Posts
Originally Posted by onefastrx712a
well thanks for the fast response farberio . can you elaborate a little more? what is it for? what will it do being broke like that? Thanks again .....
5th-6th port actuators- that whole unit that is attached to you LIM activates the 5th and 6th ports

is that a harness thats broken the picture sucks bad can you get any closer pics
Alex Rodriguez is offline
Reply Like
Old 10-20-08, 09:50 PM
  #5
Senior Member

Thread Starter
iTrader: (1)

onefastrx712a's Avatar

Join Date: Oct 2004
Location: San Leon
Posts: 320
Likes: 0
Received 0 Likes on 0 Posts

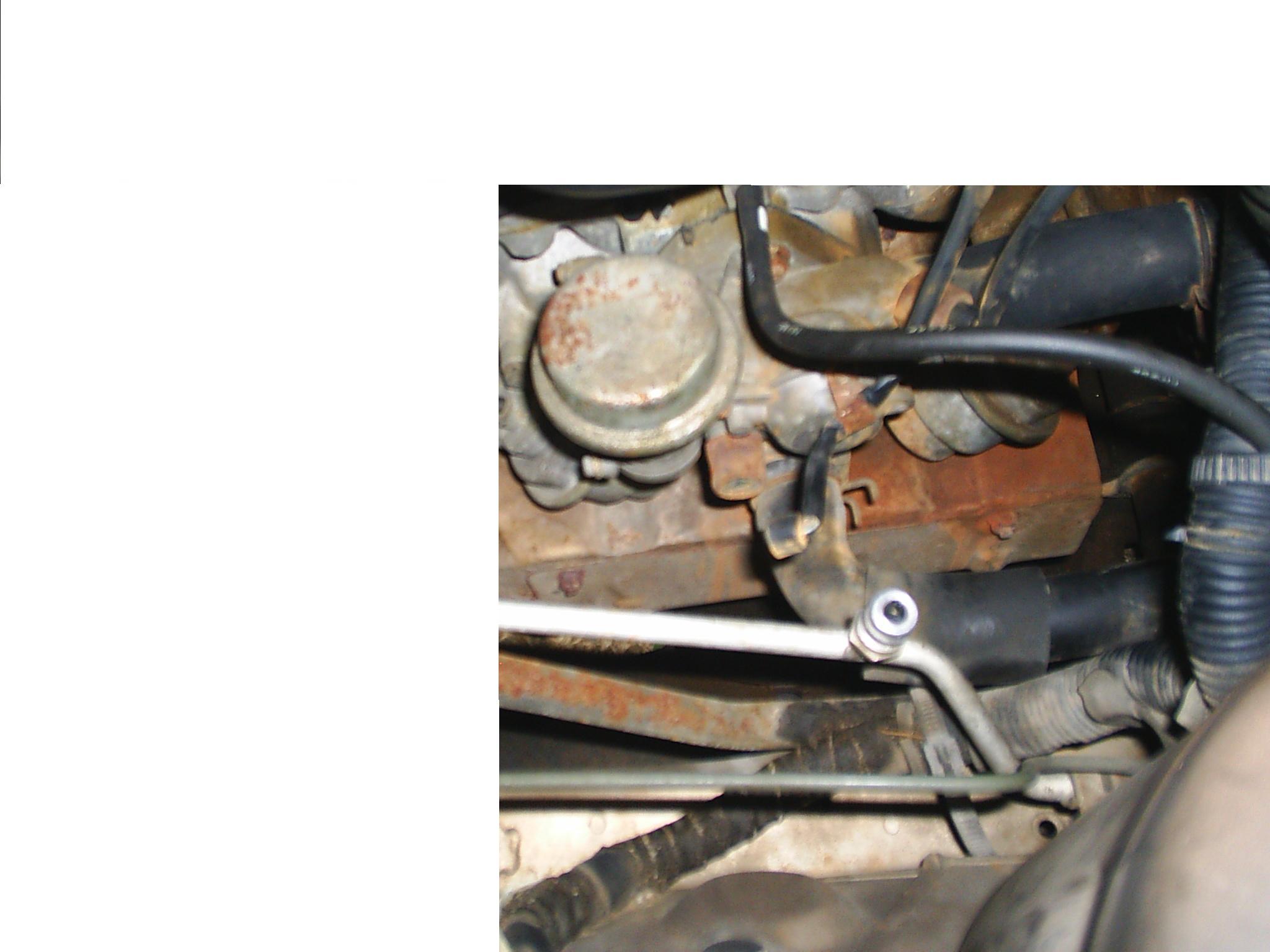

is this any better? I can see where it broke off at. So with it being broke in high speed it won't run right?
onefastrx712a is offline
Reply Like
Old 10-20-08, 09:52 PM
  #6
Senior Member

Thread Starter
iTrader: (1)

onefastrx712a's Avatar

Join Date: Oct 2004
Location: San Leon
Posts: 320
Likes: 0
Received 0 Likes on 0 Posts
well picture didn't work...
Attached Thumbnails What is this for?-copy-picture-416.jpg
onefastrx712a is offline
Reply Like
Old 10-21-08, 12:35 AM
  #7
Top Down, Boost Up

iTrader: (7)

RotaryRocket88's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 8,718
Likes: 0
Received 6 Likes on 4 Posts
The broken part has nothing to do w/ the aux ports. That's one of the solenoids on the ACV. I think it's the split air solenoid, but you can check the FSM to be sure. You're not going to pass smog with it broken, but it won't do anything else.
RotaryRocket88 is offline
Reply Like

Trending Topics

Old 10-21-08, 07:06 AM
  #8
NASA-MW ST4

iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Norcal, Bay Area
Posts: 3,800
Likes: 0
Received 3 Likes on 3 Posts
^ Now that you mention it I do see the finger in the picture pointing to not the aux port actuator.
farberio is offline
Reply Like
Old 10-21-08, 08:44 PM
  #9
Senior Member

Thread Starter
iTrader: (1)

onefastrx712a's Avatar

Join Date: Oct 2004
Location: San Leon
Posts: 320
Likes: 0
Received 0 Likes on 0 Posts
Thanks RotaryRocket88 for the info. It's almost due for the inspection so I will need to fix it.
onefastrx712a is offline
Reply Like
Old 10-22-08, 09:41 AM
  #10
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes on 93 Posts
Uh, it's not an aux port actuator. The finger is pointing to the ACV.

FSM is in the FAQ.
