what is this?

Thread Tools

Search this Thread

Old Nov 9, 2012 | 12:04 AM
Share
  #1
RX7-TII's Avatar
RX7-TII
Thread Starter
Full Member

Joined: Sep 2012
Posts: 60
Likes: 0
From: MN
MN what is this?

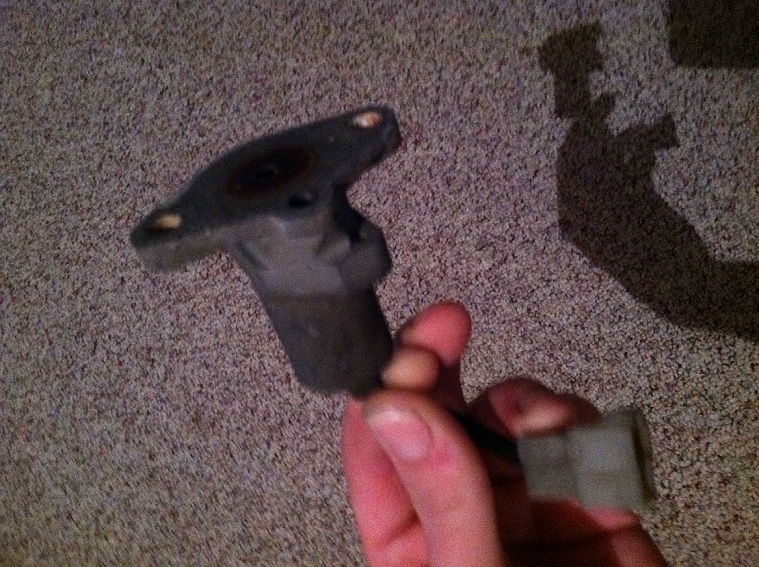

hey guys trying to figure out what this is?what is this?-img_0351.jpg
Reply
0
Old Nov 9, 2012 | 12:18 AM
Share
  #2
slitherz90gxl's Avatar
slitherz90gxl
Resident Rotard
Tenured Member 05 Years

Joined: May 2009
Posts: 908
Likes: 0
From: Belleville, Illinois
What did it come off of? I mean, what kind of car?
Reply
0
Old Nov 9, 2012 | 12:26 AM
Share
  #3
RX7-TII's Avatar
RX7-TII
Thread Starter
Full Member

Joined: Sep 2012
Posts: 60
Likes: 0
From: MN
my bad. its from a 1990 RX7 TII. its on the back side of the UIM. i believe some kind of emission solenoid but what one?
Reply
0
Old Nov 9, 2012 | 12:42 AM
Share
  #4
slitherz90gxl's Avatar
slitherz90gxl
Resident Rotard
Tenured Member 05 Years

Joined: May 2009
Posts: 908
Likes: 0
From: Belleville, Illinois
nvm I'm retarded sec. I've got a picture of one somewhere...
Last edited by slitherz90gxl; Nov 9, 2012 at 12:43 AM. Reason: retarded
Reply
0
Old Nov 9, 2012 | 01:03 AM
Share
  #5
slitherz90gxl's Avatar
slitherz90gxl
Resident Rotard
Tenured Member 05 Years

Joined: May 2009
Posts: 908
Likes: 0
From: Belleville, Illinois
Looks like it might be part of the air control valve? Honestly, I feel dumb for not knowing this, but hopefully someone else can tell you something for sure.... lol
Reply
0
Old Nov 9, 2012 | 05:46 AM
Share
  #6
RX7-TII's Avatar
RX7-TII
Thread Starter
Full Member

Joined: Sep 2012
Posts: 60
Likes: 0
From: MN
i dont think its part of the ACV. i removed emissions and it had its own block off plate. its on the upper intake manifold. its on the firewall side on the UIM, under the throttle cable bracket.
Reply
0
Old Nov 10, 2012 | 02:31 AM
Share
  #7
Th0m4s's Avatar
Th0m4s
Full Member
Tenured Member 05 Years

Joined: Sep 2011
Posts: 191
Likes: 4
From: Germany/Stuttgart
It's the air supply valve. It opens while the power steering pump is active and while hot starting.
Reply
0

Trending Topics

Old Nov 12, 2012 | 02:34 PM
Share
  #8
j9fd3s's Avatar
j9fd3s
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
Originally Posted by th0m4s
it's the air supply valve. It opens while the power steering pump is active and while hot starting.
+1
Reply
0
Old Nov 12, 2012 | 05:56 PM
Share
  #9
RotaryRocket88's Avatar
RotaryRocket88
Top Down, Boost Up
Tenured Member 10 Years
iTrader: (7)

Joined: Mar 2008
Posts: 8,718
Likes: 6
From: San Diego, CA
Yeah, ASV. It performs some of the functions normally handled by the BAC on an NA. Idle without it is still plenty controllable. I don't have one on my car since there is no hookup with NA wiring.
