water pump leak threw bottom hole

Thread Tools

Search this Thread

Old 01-01-09, 12:40 PM
  #1
Full Member
Thread Starter
iTrader: (5)

fc3s gary's Avatar

Join Date: Sep 2008
Location: sarasota florida
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
water pump leak threw bottom hole

what is the reason for the water pump to start leaking out of the small hole underneath the pump?

Last edited by fc3s gary; 01-01-09 at 12:42 PM. Reason: size
Old 01-01-09, 12:51 PM
  #2
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
A bad water seal in the pump itself.

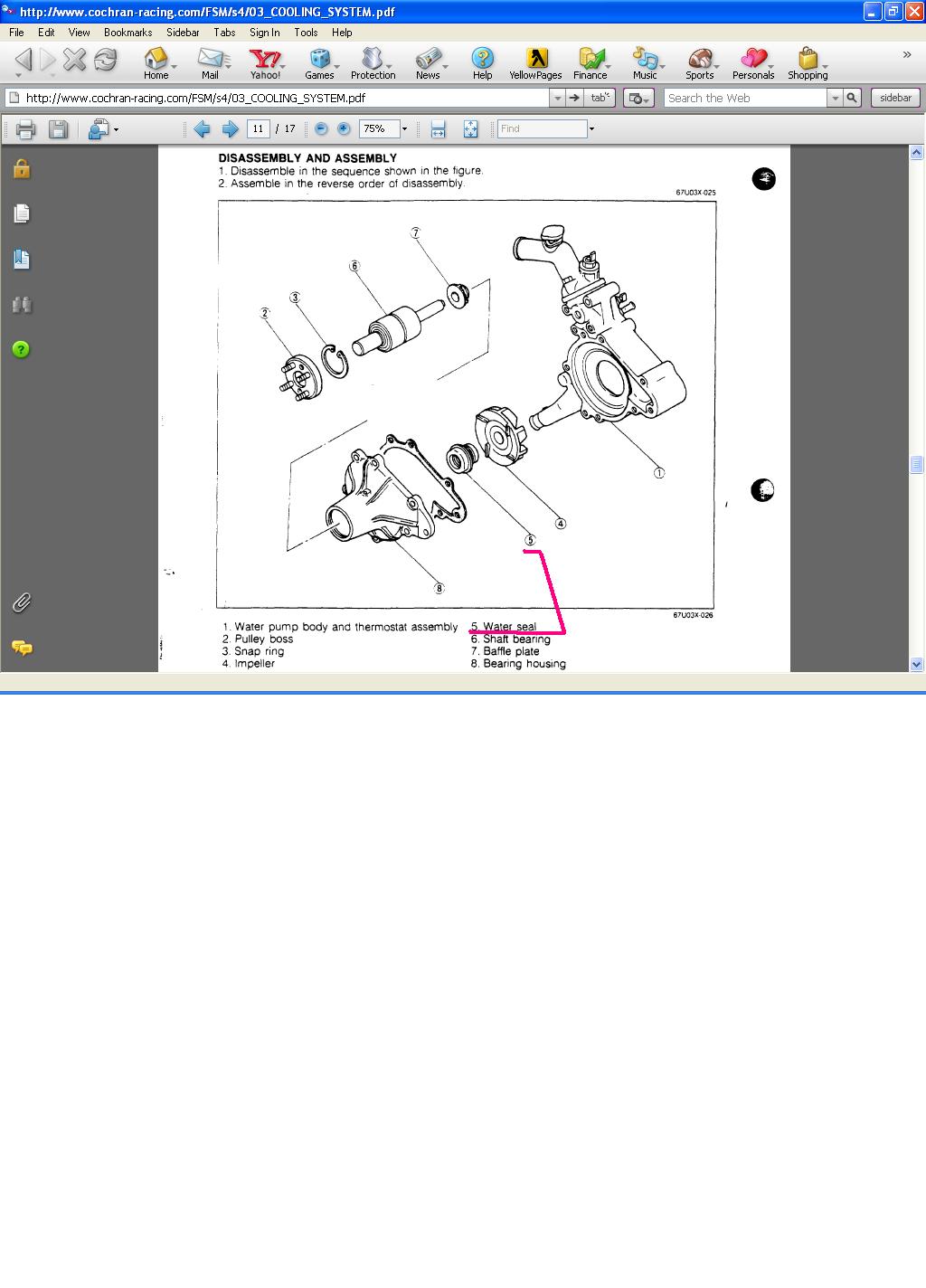

Attached Thumbnails water pump leak threw bottom hole-waterseal.jpg   water pump leak threw bottom hole-watersealtwo.jpg
Old 01-01-09, 12:55 PM
  #3
Full Member
Thread Starter
iTrader: (5)

fc3s gary's Avatar

Join Date: Sep 2008
Location: sarasota florida
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
throw away....... or tap and bolt?
Old 01-01-09, 12:58 PM
  #4
Former Moderator. RIP Icemark.

Icemark's Avatar

Join Date: Apr 2001
Location: Rohnert Park CA
Posts: 25,896
Likes: 0
Received 19 Likes on 19 Posts
If the seal is gone, chances are that a new water pump would be needed. That is the weep hole for the pump
Old 01-01-09, 12:59 PM
  #5
Full Member
Thread Starter
iTrader: (5)

fc3s gary's Avatar

Join Date: Sep 2008
Location: sarasota florida
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
thanks guys...
Old 01-01-09, 01:00 PM
  #6
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
If you tap and bolt it'll just pop out somewhere else on the pump. Like the pulley area.

New pumps are not all that much (guessing).

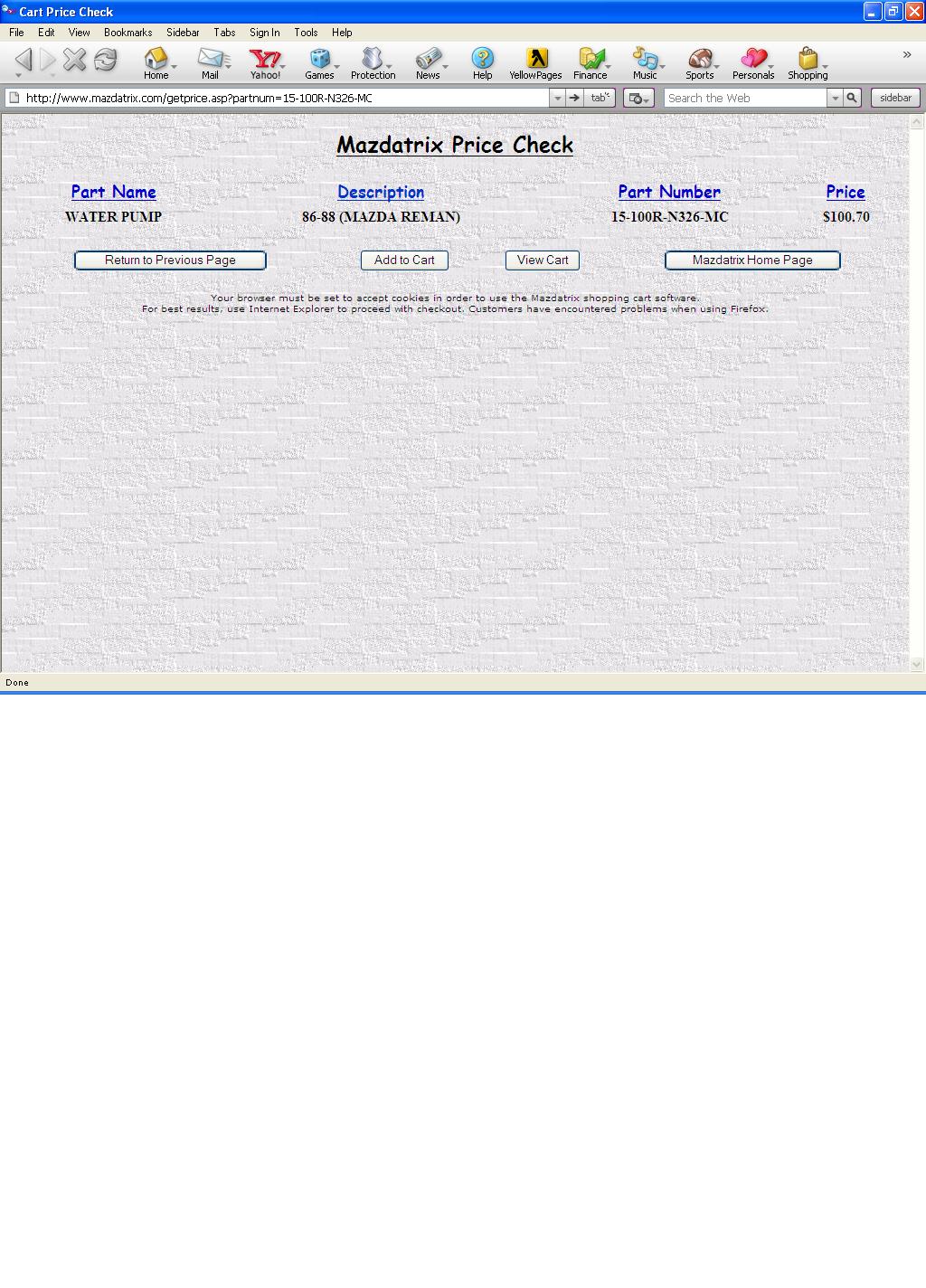

You can probably beat that Mazdatrix price in the jpg.
Attached Thumbnails water pump leak threw bottom hole-watersealtwo.jpg
Old 01-01-09, 01:07 PM
  #7
Former Moderator. RIP Icemark.

Icemark's Avatar

Join Date: Apr 2001
Location: Rohnert Park CA
Posts: 25,896
Likes: 0
Received 19 Likes on 19 Posts
Originally Posted by HAILERS
New pumps are not all that much (guessing).
usually less than $100 for a brand new one with gasket
