VDI mod on S4

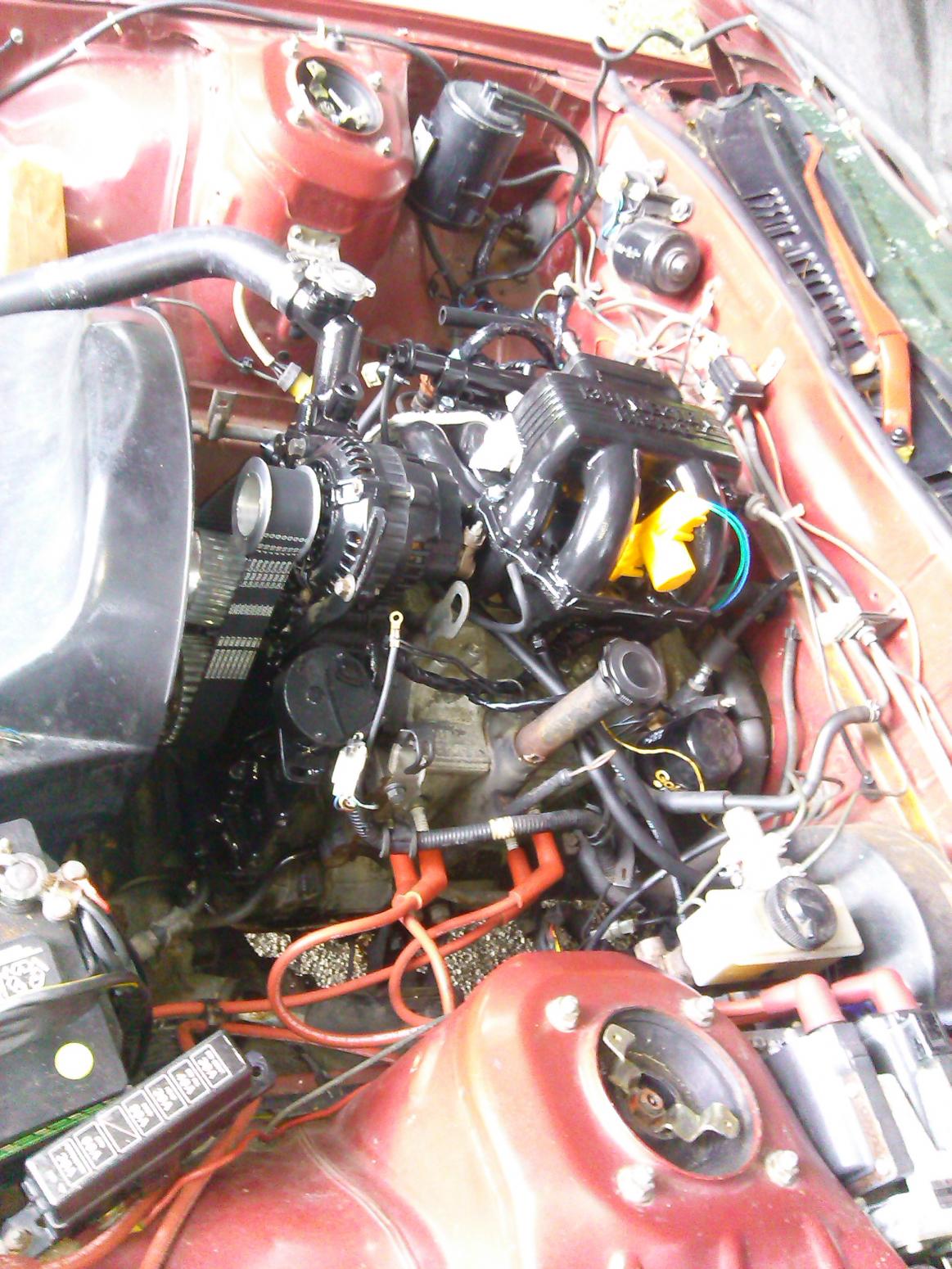

I know this is a redundant topic considering intake swaps . However I decided to share my mod . Instead of using any air pump or the stock(s5) diaphragm for the vdi system. Instead I am using a universal door lock actuator in place of a pump . It is still triggered off an rpm switch , however no airpump or vacuum lines and solenoids. Here it is without being fully mounted . Actuator cost me 4 dollars
#2
#3
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
Sorry haha , your right . I just meant , if you have a stock air pump with an emission removal , then a pump for emissions modified for less output is overkill . In the same instance replacing a tire pump all the time kind of sucks too . So my idea is an actuator . It has the same idea with less parts and hopefully a better longevity than a tire pump . The idea to make something do less than intended originally for longer than its duty cycle baffles me . So I had this idea. I do have add but hopefully that makes better sense
#4
Red Pill Dealer
iTrader: (10)
I think he meant tell us all exactly how to do it.
#5
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
Lol I'm sorry I thought that was self explanatory . Clearly an actuator no matter what its used for must be mounted otherwise it will just float up and down and be ineffective . So each actuators mounting will be slightly different . A door lock actuator has just the right distance to move for s5 vdi (3/4"-1") . My idea for mounting mine is rods mounted off the original diaphragm . I haven't finished that part yet . However the actuator must be run off an rpm switch . S4s simply have nothing at 5k that turn on that you can use as a switch . So with your rpm switch you will wire the actuator alone instead of the solenoid and a relay . It not only simplifies vacuum routing but wiring as well.
Trending Topics
#8
MECP Certified Installer
I can tell you right now that you do not want to do this if you spend very much time in the rpm window that VDI is activated.
Door lock actuators are low duty cycle devices. They are only meant to be activated for a second or less.
Clever idea, but still not a viable solution really.
Door lock actuators are low duty cycle devices. They are only meant to be activated for a second or less.
Clever idea, but still not a viable solution really.
#9
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
Got the actuator off eBay . I think the actuator will last as long or longer than the tire pump mod that has the pump continuously running . I do agree that it will fail . However I know tire pumps fail a lot , and I have seen children playing with electric door locks continuously . The battery will usually die or the switch , not the actuators . Time will tell
#10
MECP Certified Installer
Got the actuator off eBay . I think the actuator will last as long or longer than the tire pump mod that has the pump continuously running . I do agree that it will fail . However I know tire pumps fail a lot , and I have seen children playing with electric door locks continuously . The battery will usually die or the switch , not the actuators . Time will tell
I would have tried an actuator off of a drive by wire car, assuming I could find one that wasn't PWM but rather voltage dependent.
#12
Trunks are for corpses.
Join Date: Nov 2003
Location: St.Pete FL
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
The lumbar seat pumps aren't really designed to run continuously in a hot, dusty engine bay either. I've had one on my 6PI for several years and I'm on my second one.
#13
Boston Acoustics SPG555's
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: Florida
Posts: 477
Likes: 0
Received 0 Likes
on
0 Posts
I finally got this running and the actuator does open the vdi , however it does not close it . The polarity has to be reversed , so a double relay needs to be involved
Thread
Thread Starter
Forum
Replies
Last Post
demetlaw
3rd Generation Specific (1993-2002)
6
10-02-15 06:22 PM
