Does anyone here have A readable vacuum routing diagram for an 88 T2 s4 ! The one under my hood is too faded and smeared to read and that page in FSM got wet and I cant read it , and the one in the online FSM is too small for me to make heads or tales out of.



you can enlarge the pages in the fsm by pressing the + or - buttons at the menu bar in adobe reader.



HAILERS has posted a pic of the underhood diagram

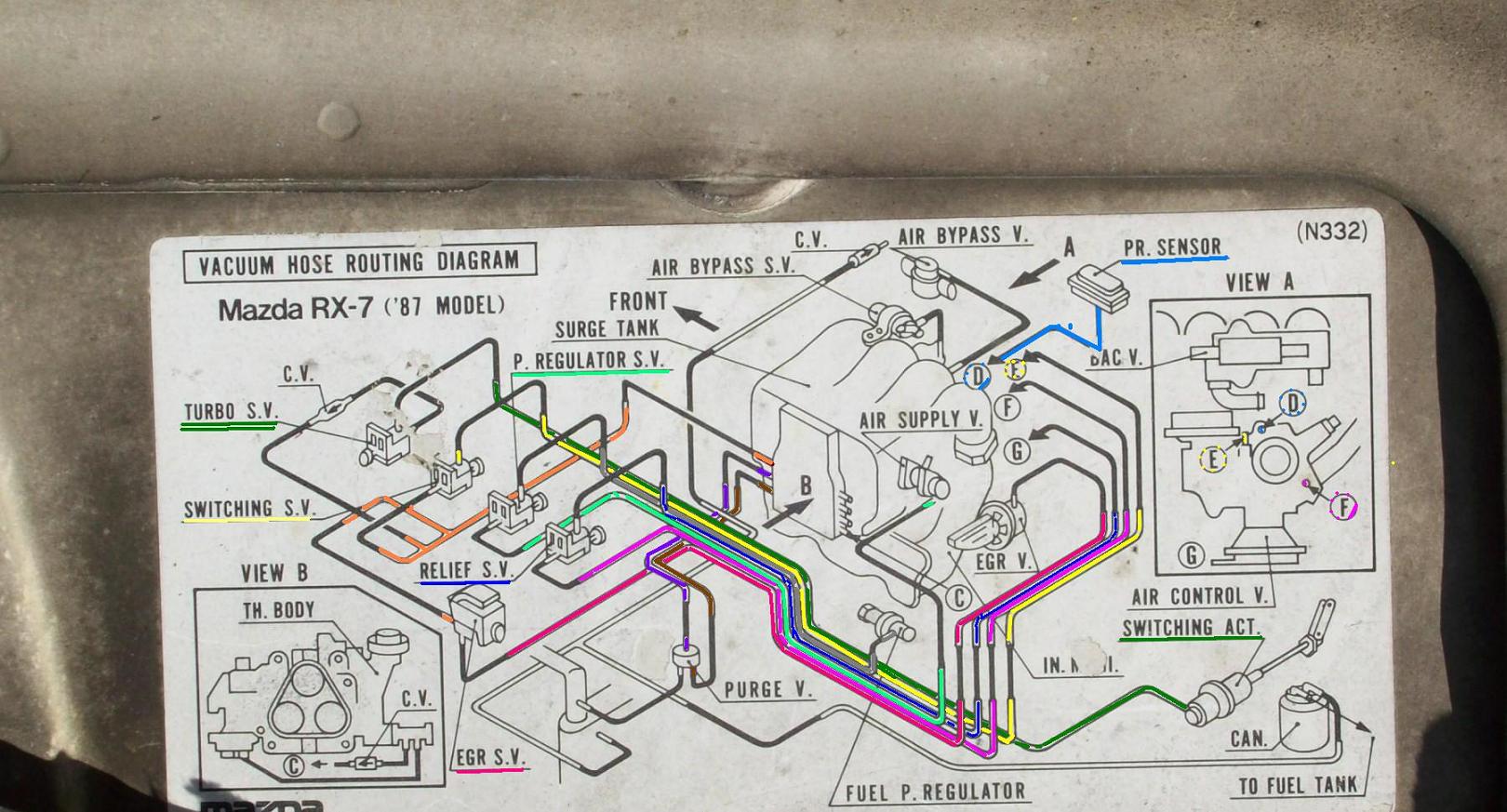

This is the decal from my 87 turboII.



^ double check that chief



Here is a pic of mine. This has been posted before.
