Vacuum Line Manifold Connections
01-12-07, 11:06 AM
#1
Vacuum Line Manifold Connections
If a knowledgable FC member would look at the attached image and tell me if the vacuum line connections at the manifold shown are correct, I would REALLY appreciate it. I need to verify the correct connections before buttoning up everything. Many Thanks!!
Larry
Larry
01-12-07, 12:01 PM
#3
It LIVES!!!!
Join Date: Sep 2006
Location: Arlington, TX
Posts: 278
Likes: 0
Received 0 Likes
on
0 Posts
I just replaced all of the vac lines on mine and that looks about right... Even with the new lines on the car; I have noticed that they will all pretty much go to the place they are supposed to be...
01-12-07, 03:12 PM
#4

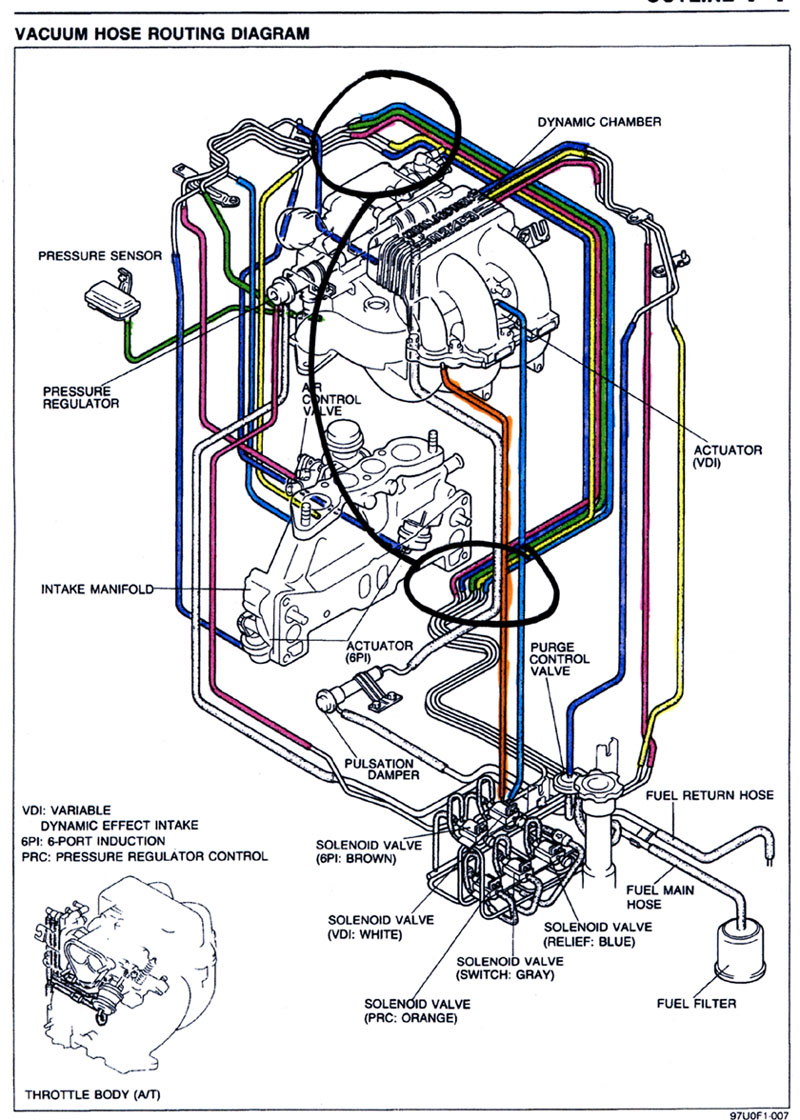

More data. In the attached schematic routing diagram, I'm trying to match up the two circled areas. (The same as those in the photo.) Since the manifold in the lower circle (samd as the right side of photo) is not neatly flattened out as shown in the diagram, it is difficult to match up the upper manifold to the lower manifold. Maybe I'm missing something here? It shouldn't be this difficult. I talked to 2 Mazda techs this afternoon and they couldn't help. Sheeesh!
