Vac lines information.

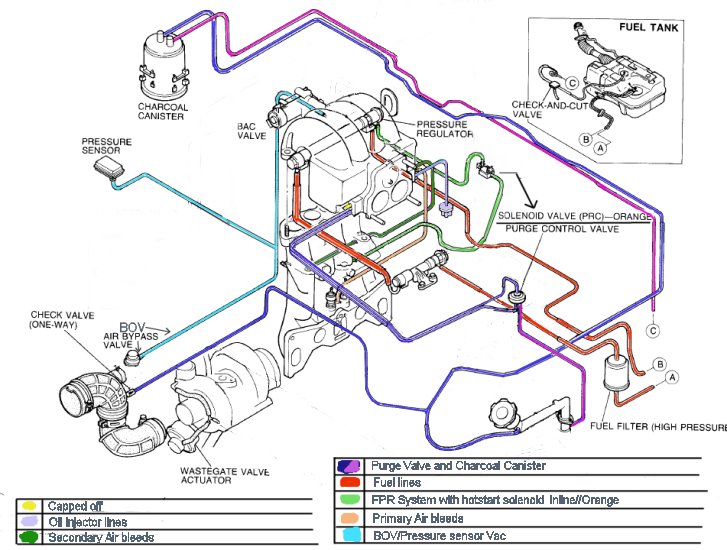

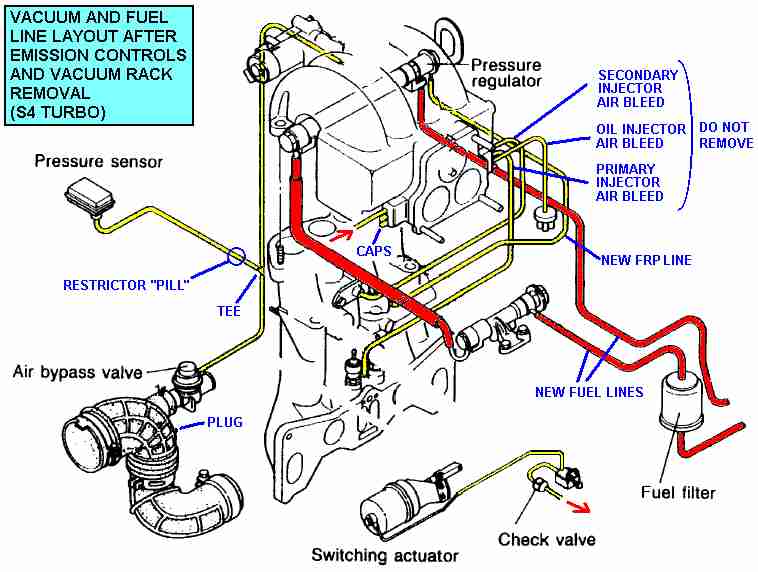

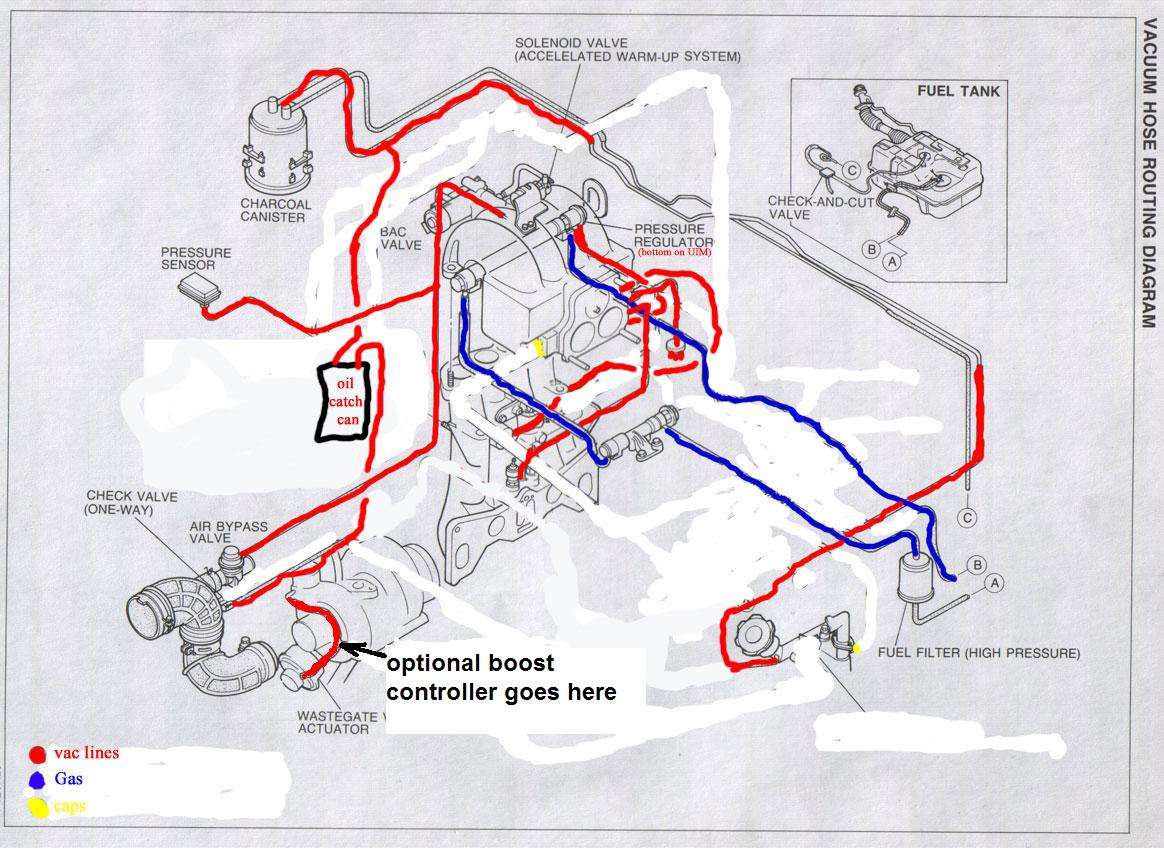

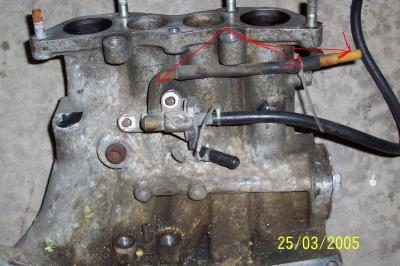

I have found 3 images of how the vac lines are supposed to be run after the rats nest removal.
The problem is each one conflicts with the other 2.
maybe someone can clear these all up.
The problem is each one conflicts with the other 2.
maybe someone can clear these all up.
03-25-05, 09:39 AM
#2
Former Moderator. RIP Icemark.
No, they all are simular, except for #2 does not remove the Purge control and #1 does not have the charcoal canister.
IMO you need the air bleed lines, FPR line, pressure sensor, and switching actuator line (if keeping the stock turbo set up) and bypass (BOV) lines (all as shown in all the pictures).
As far as the purge and charcoal canister... well technically the car would run fine without them, but I might do a catch can if this was a street driven vehicle.
IMO you need the air bleed lines, FPR line, pressure sensor, and switching actuator line (if keeping the stock turbo set up) and bypass (BOV) lines (all as shown in all the pictures).
As far as the purge and charcoal canister... well technically the car would run fine without them, but I might do a catch can if this was a street driven vehicle.
