BoostdFC3S

Are there any V-mount kits out there for the fc specifically or will I have to go custom? I think i may go custom any way if its too much. Anyone have any input on this type of setup or do u guys prefer FMIC with a couple of big *** fans?

Ok thanks
Jon

frestylereaction

FMIC is easier to do.....no need for fans

vmount youll need custom brackets and mounts for both radiator and intercooler....an electric fan or two on your radiator....plus a vented hood ....

much easier to leave the radiator where it is and just make a custom or buy a kit for a FMIC

Digi7ech

iTrader: (1)

Have to go custom.

If I was going to go FMIC I would prefer Vmount.

Both RAD and IC get good airflow without blocking the other.

Yeah you'll need a vented hood but if your already going to do it then that shouldn't be a problem.

Just get a NA hood and then do some cutting and fiber glassing and you'll have a vented hood.

Node

iTrader: (1)

RE Amemiya has V-mounts on their race FC, but im not sure if they sell it. they sell one for FD so maybe for FC. the FD one runs like $2500 +/-$200 but thats a beefy *** radiator and healthy sized IC

YearsOfDecay

No Need for V-Mount if you remove your AC Heat exchanger and get an upgraded radiator when you go with a FMIC.

In fact... MOST guys still run the AC with the FMIC... THe upgraded Radiator is a reeeaaaaall good idea though.

Rookie84

How do you run AC with FMIC? Don't you have to remove it for most kits out there right now? It would be great if I could keep AC with FMIC.

YearsOfDecay

I'm pretty sure you can keep the A/C with the Greddy kit

Rookie84

Hmmm... I better double check on that because RX-7 Store told me AC needs to be removed. Anyway, thanks

wankel jr.

V-Mounts are the best imo.
But a rev-cowl is necessary
my reasons:
-the air going through the radiator hasnt already been heated by the intercooler

-intercooler doesnt get stones and stuff flicked off the road at it

-if you crash, the vitals are away from the front of the car, so its more likely youll only have to replace your bumper

-shorter inlet route from turbo to tb ie. less lag

-the fact that both the intercooler and radiator get their own cool air supply means they dont have to be as big as with a conventional fmic setup

ViperKillerWannabe

Anyone got any pics of this V-mount for those of us who haven't seen it?

wankel jr.

stoopide forum..

fc3seeker

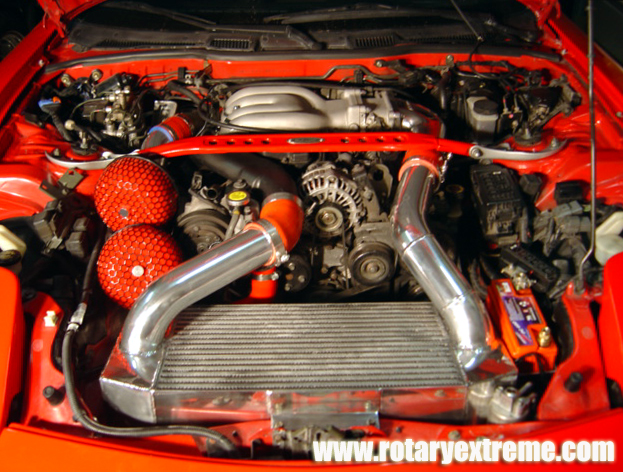

These are on FD's but you get the idea. Take an IC and Radiator, smack up together at a 45 degree angle and theres your V. This way air coming from the front goes equally to both the IC then the radiator.

wankel jr.

this forum hits me from the back..

http://www.angelfire.com/crazy/rotor/

kd86rx7

iTrader: (1)

blue tii has one custom made on his fc.
