Does anyone know which turbo fit with Greddy TDO6SH-20G exhaust manifold? I recently had this greddy kit on my car and would like to upgrade the turbo without changing the exhaust manifold and down pipe. Thx very large for all the comments.



post a pic of the manifold

if it's a TD06 turbine housing it's probably T3... which means you could bolt up a GT35 to it

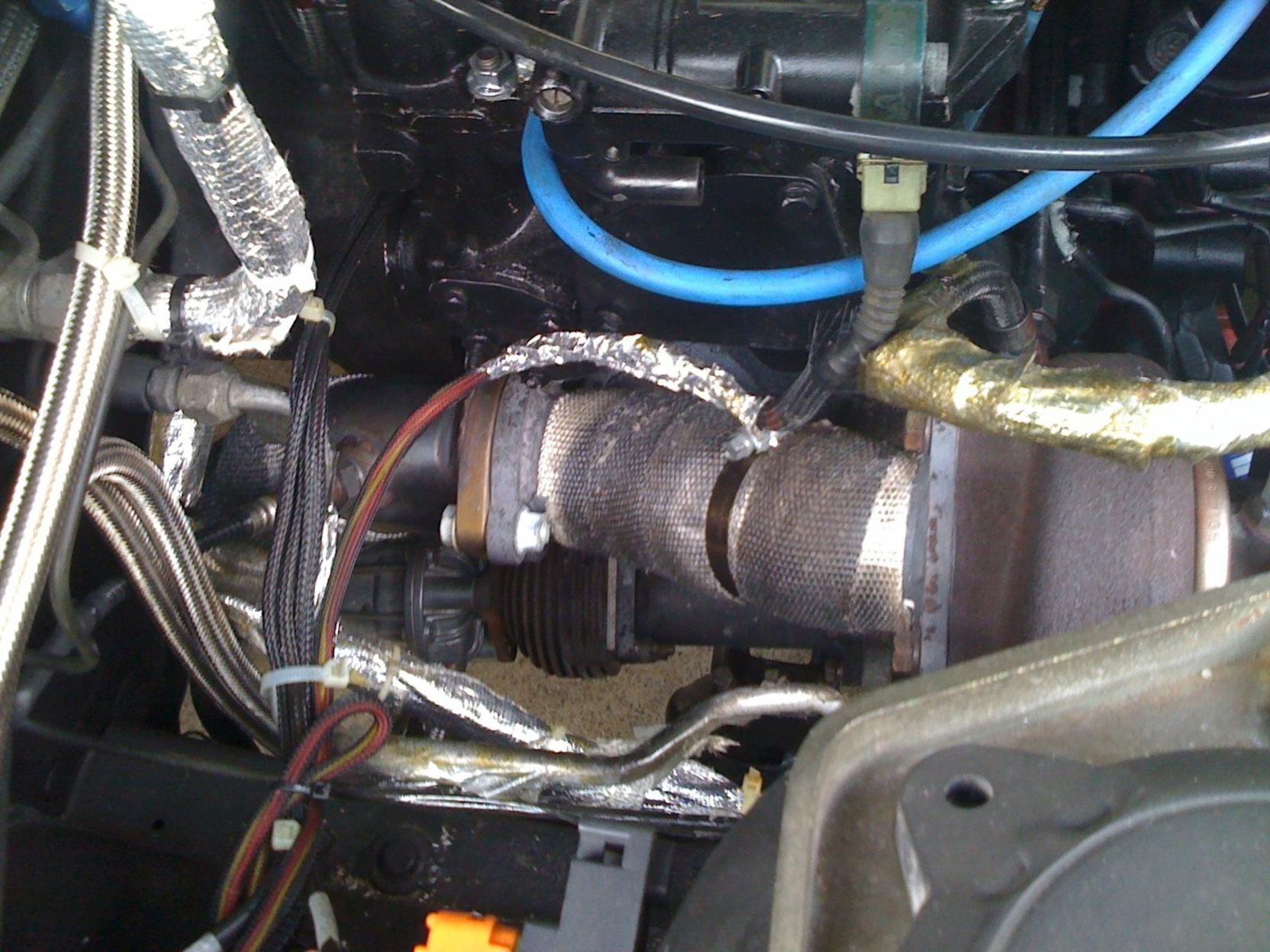

here is the exhaust, please let me know. Thx



I can't see the turbine inlet flange. It's hard to say with that pic

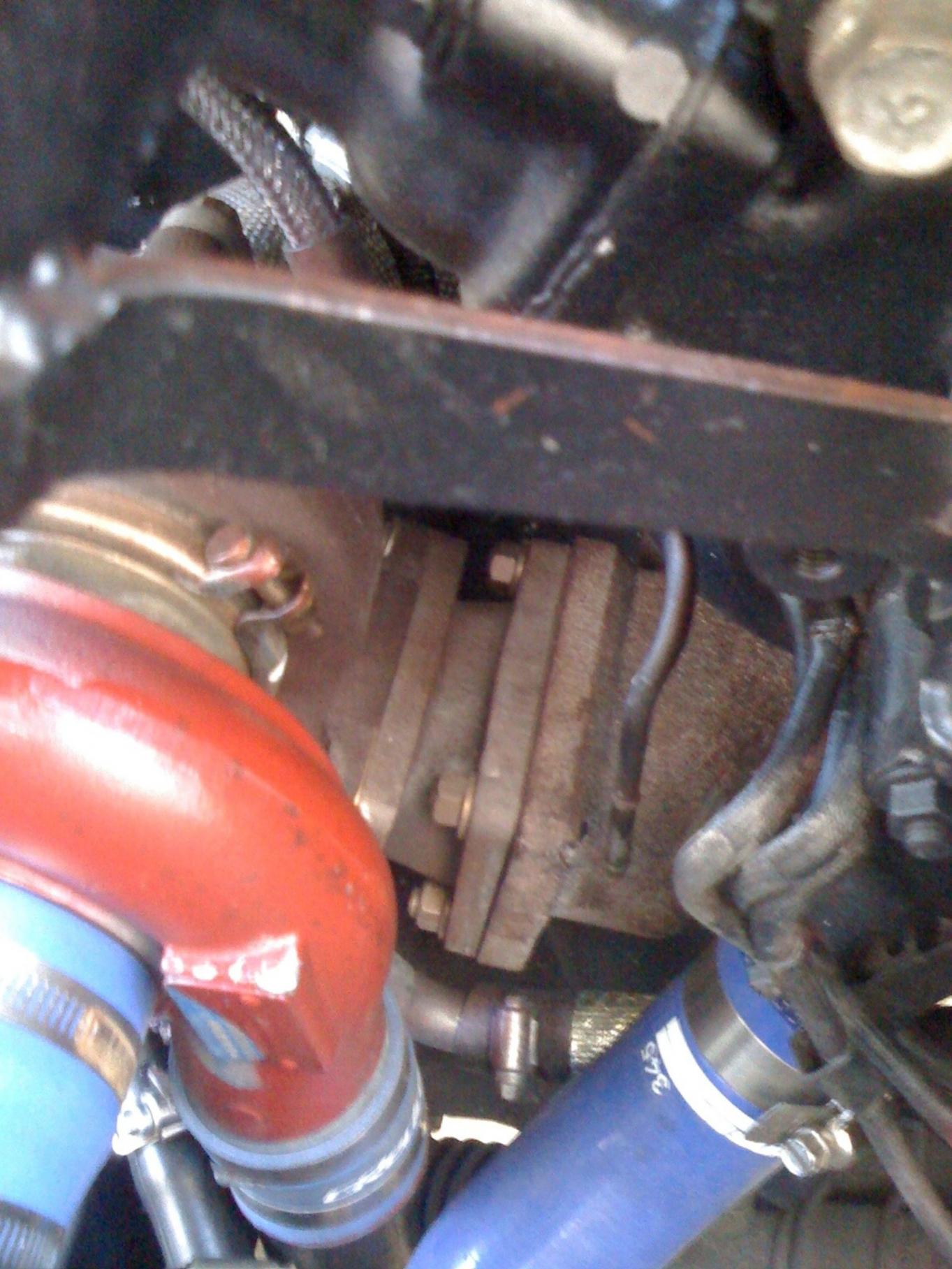

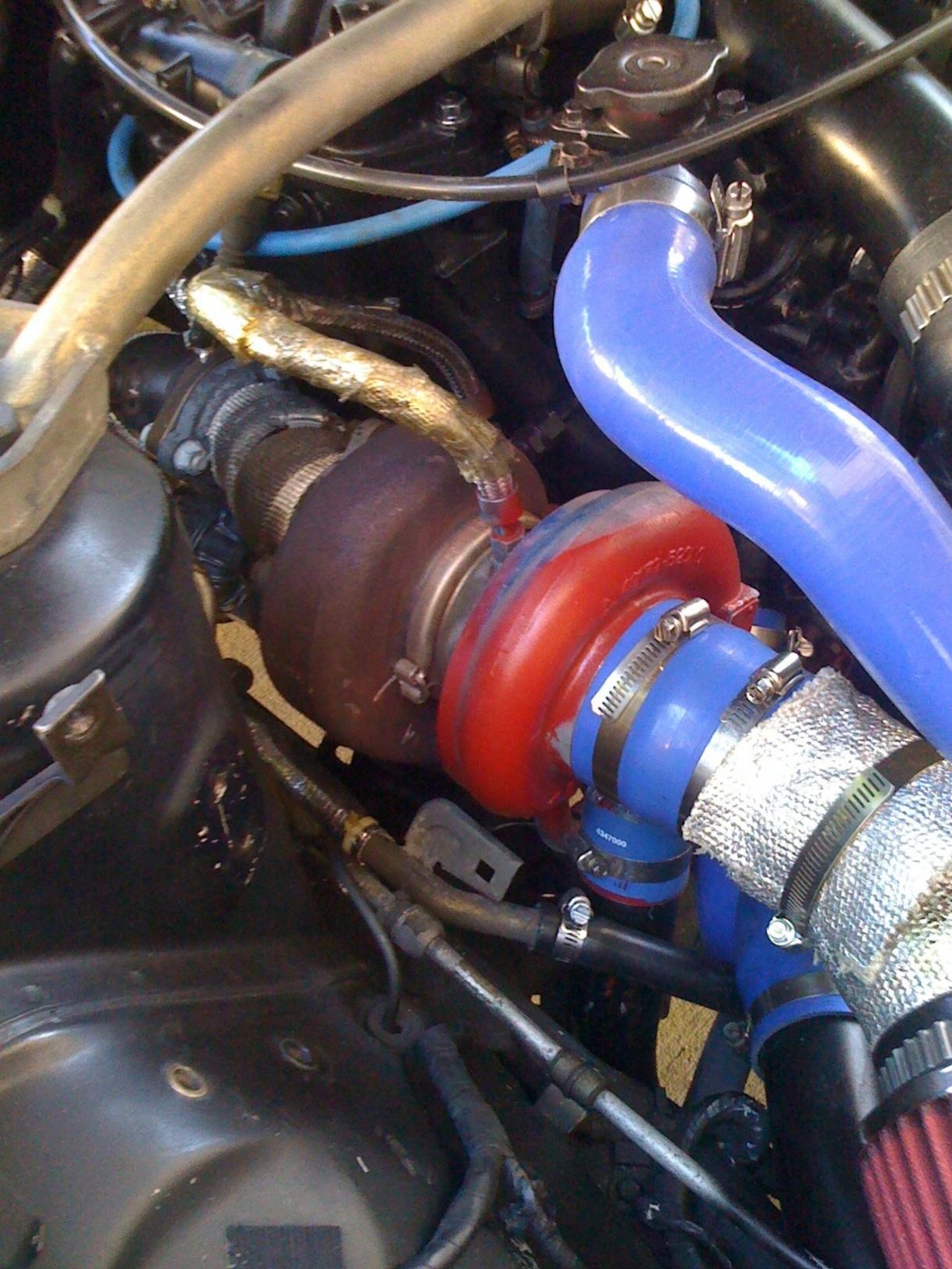

i took some more pics hope they would help. Thx



I have the same turbo/manifold setup. It has that tiny adapter piece there. I think it may actually be a T4. The adapter looks like it goes from a larger to smaller flange. You may have to measure to be sure. I've been wondering the same thing myself...



That's a T4 manifold with a T3 adapter attached.



Bahm!!



You can bolt a T4 turbo on there, but nothing else is going to bolt up; ie cooling lines, dp, intake, intercooler piping etc.

However if you are willing to spend a few extra bucks we could re-profile your current turbine housing for larger turbine wheel, and put a complete new turbo in there less turbine housing(reuse your current one). You then will have to make only slight changes to your plumbing fittings, and intake etc.

Is also possible to do the same for the compressor housing, but you would have to send us the turbo to find out for sure...



how much are u talking here, do i need to send u the whole turbo kit i.e. exhaust manifold, turbo housing ...? please let me know. Thx



T3 Turbo Flange
A = 1.94"
B = 2.31"
C = 3.40"
D = 1.75"

T4 Turbo Flange
A = 1.94"
B = 2.94"
C = 3.25"
D = 2.75"

this is from the burns sight so this is my guess



We just need the turbo. It depends on how much work is needed. Probably looking in the $1400-1800 range for a BB Garrett unit. Up to To4Z should be doable.



This thread was very helpful. Thanks!
