for the turbo - a REAL downpipe.
02-22-06, 07:30 AM
#1
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
for the turbo - a REAL downpipe.
The sureshot definition of downpipe: It opens to 3-1/2", goes straight down, and stops.
Yes, it's WAY WAY LOUD!!
This rig is old school.
It has definitely stirred things up, and got my turbo's attention.
The S-AFC high map had to go up over 15% more to get the AFR back under control.
On the second day it blew off the waste gate hose.
I felt it & lifted at around 15 PSI! Oops..
Yes, it's WAY WAY LOUD!!
This rig is old school.
It has definitely stirred things up, and got my turbo's attention.
The S-AFC high map had to go up over 15% more to get the AFR back under control.
On the second day it blew off the waste gate hose.
I felt it & lifted at around 15 PSI! Oops..
02-22-06, 09:15 AM
#4
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by AFgreasemnky
Where do you have that located? Directly after the turbo?

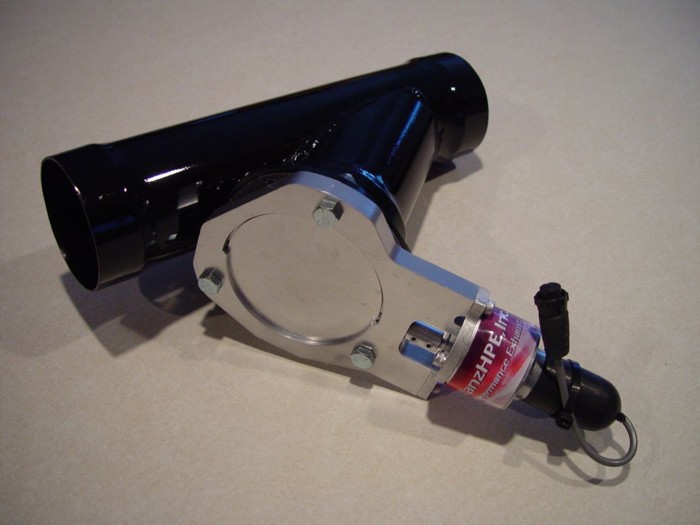

The Y-pipe is mild steel.
The valve & shaft are stainless.
It takes about 4 seconds to open or close.
I'll be on the lookout for corrosion.
It came from www.BadlanzHPE.com
Last edited by SureShot; 02-22-06 at 09:21 AM.
Trending Topics
02-22-06, 10:40 AM
#8
man boost creep will be serious with that thing installed in the DP. You might want to be carefull with that. If I were you I would just build a 4 inch complete turbo back exhaust system if you want to flow more exhaust gas. Anything more than that you are going to be asking for some new apex seals if all you have controlling fuel and timing is a SAFC.
03-01-06, 08:50 AM
#9
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Boost is OK with the ported waste gate & stock turbo in warm air, but on a cold morning it does want to push up another 3PSI.
This is not going to help an NA much, since it screws up exhaust tune.
But on a turbo - Oh Yea!
Loud is fun, especially when you can turn it down at will.
This is not going to help an NA much, since it screws up exhaust tune.
But on a turbo - Oh Yea!
Loud is fun, especially when you can turn it down at will.
Last edited by SureShot; 03-01-06 at 09:03 AM.
03-01-06, 08:59 AM
#10
Play Well
Join Date: Feb 2005
Location: We're all fine here now, thank you. How are you?
Posts: 4,218
Likes: 0
Received 0 Likes
on
0 Posts
About how long do you think the motor will last at, I mean damn thats alot of heat. And from the last time you were talking about it you said it was heavy duty. Im going to keep tabs on this.
03-01-06, 09:09 AM
#11
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
All the turbo heat shields are in place.
The longest open run so far was about 3 miles crusing at 100MPH
The Y-pipe gets to a dark cherry red.
So far, so good.
The label on the actuator motor has not cooked.
The G-tech shows 233 net HP in 2nd.
The longest open run so far was about 3 miles crusing at 100MPH
The Y-pipe gets to a dark cherry red.
So far, so good.
The label on the actuator motor has not cooked.
The G-tech shows 233 net HP in 2nd.
03-01-06, 10:23 AM
#12
Now With 10th AE Fun!
iTrader: (1)
Join Date: Jun 2005
Location: CA
Posts: 1,869
Likes: 0
Received 0 Likes
on
0 Posts
Sweet, I was thinking about getting this for my N/A but as mentioned it just makes it really loud. Looks great, I would love to hear a sound clip or see a vid of it burning the ground.
03-01-06, 03:45 PM
#15
Rotary Enthusiast
iTrader: (1)
Join Date: Sep 2004
Location: seattle wa
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
does it completely seal off the exhaust when closed? any little leaks
who sells this
thanks ty
edit i see where you got it
who sells this
thanks ty
edit i see where you got it
Last edited by turbine; 03-01-06 at 03:49 PM.
03-02-06, 08:38 AM
#16
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
The aluminum housing has two opposing lips that the stainless door closes against.
Each goes half way around.
There are two tiny leaks at the shaft pivot points.
They are clearance to allow the door to open a full 90 degrees.
The overall total leakage is about what you would get from a 1/16" hole.
Each goes half way around.
There are two tiny leaks at the shaft pivot points.
They are clearance to allow the door to open a full 90 degrees.
The overall total leakage is about what you would get from a 1/16" hole.
03-17-06, 07:33 AM
#18
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Update:
The open turbo exhaust doesn’t have the same pop as the NA.
But, when the boost rolls in, it gets loud as hell. YeeHaa..
I was doing a test on the 4-lane road home the other day, when a SBC with dual dumps opened up along side.
He hit it, I hit it and I couldn’t even hear him!
No problems so far with the dump valve.
I got an e-mail from the manufacturer.
Some buyers have had a problem where the actuator motor attaches to the gearbox collar.
He offered to send me the fix.
I’m impressed.
Proactive customer support is a big deal in my opinion.
The video is on hold while I troubleshoot a low fuel pressure problem.
The open turbo exhaust doesn’t have the same pop as the NA.
But, when the boost rolls in, it gets loud as hell. YeeHaa..
I was doing a test on the 4-lane road home the other day, when a SBC with dual dumps opened up along side.
He hit it, I hit it and I couldn’t even hear him!
No problems so far with the dump valve.
I got an e-mail from the manufacturer.
Some buyers have had a problem where the actuator motor attaches to the gearbox collar.
He offered to send me the fix.
I’m impressed.
Proactive customer support is a big deal in my opinion.
The video is on hold while I troubleshoot a low fuel pressure problem.
Last edited by SureShot; 03-17-06 at 07:58 AM.
