marlaman

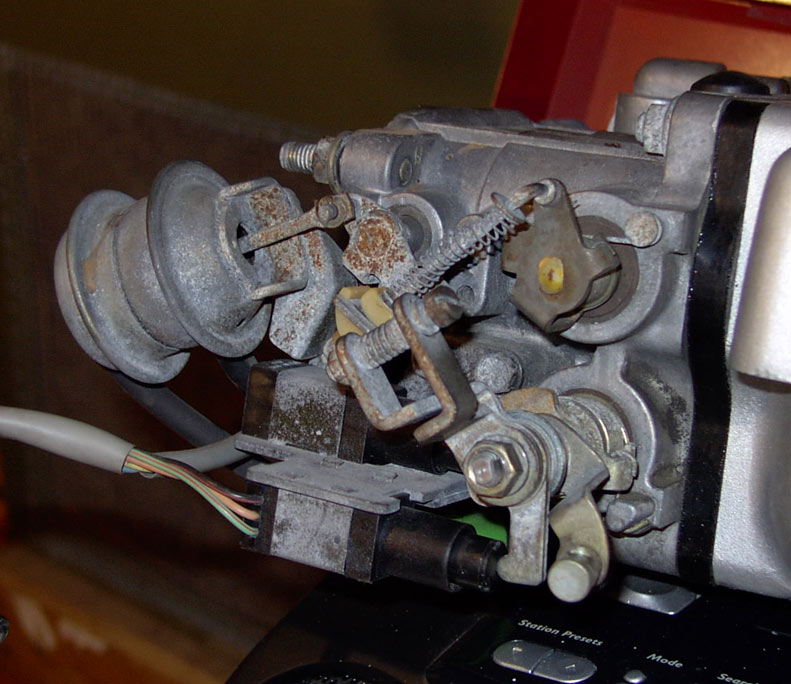

Yeah like the thread states, can you spot what isn't supposed to be on there, or perhaps something is missing, but i can't tell you, BECAUSE IT"S TRIVIA TIME!. i just want to see if you can figure out what i'm doing with my engine form this picture. but FYI if your'e not familiar with the differences between S4 and S5 throttle bodies you may not know. but i welcome all guesses!



Peace,
Matt

xfeastonarsex

iTrader: (5)

you can control the radio with it.

marlaman

haha what the hell kind of answer is that?
M

PhReeQ_N

It's got the arm for a MOP Rod?

marlaman

Nice job. you get 2 points.
M

xfeastonarsex

iTrader: (5)

look at the bottom of the pic, it says "station presets"

DerangedHermit

marlaman

damn i didn't even notice that. that's my kickass cd player from best buy. only 30 bucks. keeps me happy when i'm working.
But no i haven't figured out a way to wire them together yet :/

Later Homies,
M

drago86

Its converted over to run on an S4. MOP rod and an S4 narrow range tps?

Mx6-Rx7 Addict

That looks like a S5 TPS to me...

Justin

Tessai

I don't think the rust is supposed to be on there... :P

marlaman

Hey i like it. Bah rust will be gone in a day or 2 when i polish everything up and get her ready for my install.

OK so here is why there is an S4 OMP rod bracket on there.
I got an S4 engine form a fellow RX-7 dude up in the twin cities. I have an S5 vert. So instead of going through all the trouble to switch the Front plate to the S5 front plate with the S5 OMP mounting points i decided to do a little mod and just run the OMP
I originally thought i was goingot run pre-mix but decided that i was going to do both, just incase there was an instance of me forgetting to add premix. So i have decided to keep the S4 OMP with a few slight Modifications to the S$ engine block and just wire a resistor inline for where the S5 wiring should be leading to the OMP. I figure it'll be easilly swichable when i get an S5 engine redone for me and also if i so choose, i will get rid of it alltogether.
I chose to do something i hadn't seen or read about before and try something on my own initative, so if there are any people out there with comments on if it will work or not or your thoughts let me know.
Peace,
Matt

wozzoom

It's also a throttle body for an Automatic.

marlaman

Not anymore

LT8TurboII

iTrader: (2)

I am not sure a simple resistor will stop the S5 ECU from going into limp home mode. The S5 OMP is a stepper motor, and usually a simple resistance is not what the ECU is looking for out of those in order not to throw a code. Not a promise, but I have been around these cars since ~ 96 and I seem to remember something about this.

marlaman

Allright thanks for the input. i'll be putting a fair amount of reseach into her tonight so every heads up is appriciated.
M

LT8TurboII

iTrader: (2)

Here are some links, most saying that you cannot just use a resistor to remove the electronic OMP.

https://www.rx7club.com/showthread.p...t=OMP+resistor

https://www.rx7club.com/showthread.p...t=OMP+resistor

marlaman

thanks for the reply. I still have a few things i've not read about and would like to try. (hopefully one MAY work but who knows.) my dad is awesome with electronics and i'll see if we can figure something out. not saying for sure if it'll work or not but at the very least i'll just hang the S5 omp somewhere in the car and plug it in.

Matt

poor_red_neck

You'll have to plug in the S5 MOP, and just tie it some where to the engine bay. I'm going through the same headache as you... but I have a s5 front cover on the s4 block. Currently converting to pre-mix.
