I was wondering anyone knew the name of this seal on my trans. It’s leaking on my fc trans that I’m about to pull and was wondering if anyone knew what it was called/where I could find one? If not is there a way to fix it or do I literally need to buy a new trans.



the rod comes with a rubber coating at the ends, so there isn't a seal there in the traditional sense. you would either replace the tube or silicone it



so would I even need to take apart the trans or could I just clean it up and use some silicone on the end?



to change the rod the tail housing needs to come off. if that pic is your actual trans i wouldn't even worry about it, its way higher than the fluid level



This is the trans from my fb. I’m about to pull the trans from my fc when it stops raining but a few weeks ago I could see fluid leaking from it covering the rear of the trans and with a mirror I saw what looked to be a seal folded out of the the rod area of the trans.



so someone else had it apart?



I don’t believe so. I was just saying that that’s what it looked like to me but i’ll pull it tonight and look at it better and go from there. I can also post a picture on here too

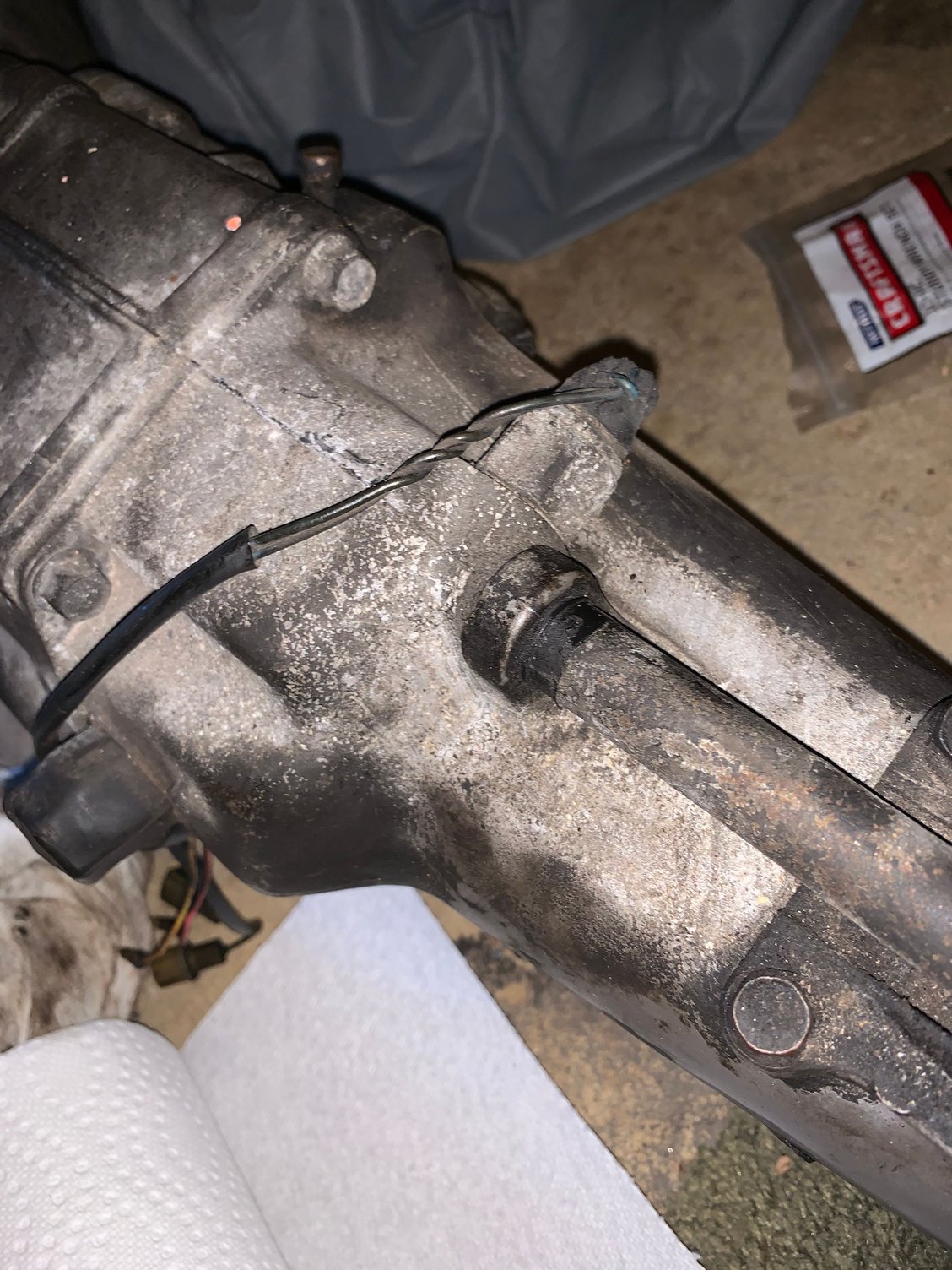

this is what it looks like



you need 17-490 and you should replace 17-465C as long as you're in there



sweet thank you. are those things that would still be available to buy now?



most likely, but need year/model to get the part numbers



it’s a 1986 s4 base



M502-17-490B is the tube, M501-17-465B is the spring. Mazda USA has no stock, but it shows its available



thank you i really appreciate it. is there anything need to be weary about when pulling apart the back section or my tranny?
