Took off my oil pan today and found this

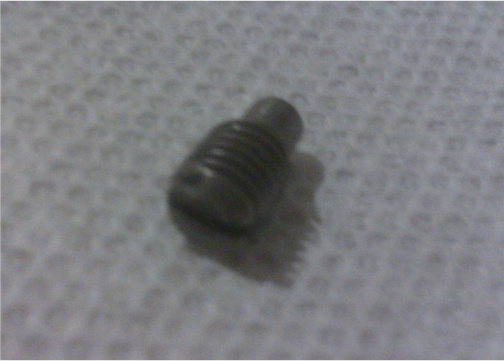

I took off my oil pan to install an oil pan brace and I found this. Ive yet fully disassemble a rotary engine so I am at a loss on what it is , and it has me scared that I will need an early rebuild.

Reply Like

07-15-11, 08:00 PM

j_tso

Rotary Freak

iTrader: (2)

Join Date: Dec 2004

Location: Austin, TX

Posts: 1,757

Likes: 39

Received 249 Likes on 167 Posts

Looks like an eccentric shaft oil jet. Have you had loss of oil pressure?

I can only guess it's the middle one and fell down the bore in the intermediate housing.

Reply Like

07-15-11, 08:26 PM

Thumpher86

Rotor-aholic

Thread Starter

iTrader: (7)

Join Date: Dec 2010

Location: Pensacola, FL

Posts: 120

Likes: 0

Received 0 Likes on 0 Posts

that's what I thought is might be, but shouldnt it have a hole through it? My oil pressure is good.

Reply Like

07-15-11, 10:46 PM

Turblown

Turn up the boost

RX7Club Vendor

iTrader: (12)

Join Date: Dec 2001

Location: Twin Cities, MN

Posts: 7,067

Likes: 28

Received 91 Likes on 77 Posts

If this is a 2nd gen engine its the oil pump set screw...

__________________
Rotary Performance Parts

Reply Like

07-16-11, 12:08 AM

Thumpher86

Rotor-aholic

Thread Starter

iTrader: (7)

Join Date: Dec 2010

Location: Pensacola, FL

Posts: 120

Likes: 0

Received 0 Likes on 0 Posts

Thanks! That is exactly what it looks like, but what is its purpose? Can i just take off the front cover to replace it?

Reply Like

07-16-11, 09:15 AM

j_tso

Rotary Freak

iTrader: (2)

Join Date: Dec 2004

Location: Austin, TX

Posts: 1,757

Likes: 39

Received 249 Likes on 167 Posts

Turblown's got it right.

From the FSM:

The set screw keeps the middle plate (7) from turning. Oil pump wouldn't pump very well if it does.

Reply Like

07-16-11, 12:19 PM

HAILERS2

Rotary Freak

Join Date: Jul 2008

Location: FORT WORTH TEXAS

Posts: 1,660

Likes: 0

Received 1 Like on 1 Post

How 'bout that. I bought a junkyard engine years ago and found the same thing laying in the pan. It needs to be staked into the oilpump body so it won't come out.
