Throttle body o-ring width

Old 02-22-14, 07:05 PM
  #1
Rotary Freak
Thread Starter
iTrader: (7)

Silverfc88's Avatar

Join Date: Nov 2002
Location: Travis AFB, CA to Okinawa, Japan
Posts: 1,790
Received 1 Like on 1 Post
Throttle body o-ring width

Trying to measure out the throttle body oring. Can't decide if it is 3/32 or 1/16 wide? Looks to be about 13 3/16" long
Silverfc88 is offline
Old 02-22-14, 10:51 PM
  #2
Senior Member
5 Year Member
iTrader: (3)

kborro01's Avatar

Join Date: May 2007
Location: San Diego
Posts: 316
Likes: 0
Received 0 Likes on 0 Posts
If you're talking about the one that goes on the outside lip, they are available from Mazda and mazdatrix. I ordered a couple a few months ago and I'll see if I still have the part number.
kborro01 is offline
Old 02-23-14, 01:49 AM
  #3
Rotary Freak
Thread Starter
iTrader: (7)

Silverfc88's Avatar

Join Date: Nov 2002
Location: Travis AFB, CA to Okinawa, Japan
Posts: 1,790
Received 1 Like on 1 Post
Looking for a cheaper option. Measuring one out so I can order a pack of them through McMaster.


Here are my options so far.


Buna-N O-rings
9452K176 Buna-N O-Ring, AS568A Dash Number 155, packs of 50


9452K134 Buna-N O-Ring, AS568A Dash Number 045, packs of 50


Viton
9464K451 Viton® Fluoroelastomer O-Ring, AS568A Dash Number 045, packs of 10


9464K518 Viton® Fluoroelastomer O-Ring, AS568A Dash Number 155, packs of 2



McMaster-Carr
Silverfc88 is offline
Old 02-23-14, 10:10 AM
  #4
FC guy
iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,669
Received 9 Likes on 9 Posts
A cheaper version is an old oil seal o- ring, thats what im using. A little vaseline holds it in place until you bolt it the TB on
Rob XX 7 is offline
Old 02-23-14, 11:46 AM
  #5
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,618
Received 51 Likes on 51 Posts
OEM parts are expensive, especially when it costs a lot of money for small stuff. It's always nice to have another source for parts, so good job tracking down some possible replacements.

Now that o-ring area is prone to boost leaks. Are you planning to pressure test your intake piping for leaks when you install your McMaster o-ring? If it won't seal, how many different o-rings are you willing to try? How much time and money would be involved in that process?
arghx is offline
Old 02-23-14, 01:44 PM
  #6
Rotary Freak
Thread Starter
iTrader: (7)

Silverfc88's Avatar

Join Date: Nov 2002
Location: Travis AFB, CA to Okinawa, Japan
Posts: 1,790
Received 1 Like on 1 Post
I do plan on pressure testing everything after I get the car back together. Hopefully I will only have to order it once If I measured everything right. If not I will try one other set and hopefully that one will be the right one as it works out it will still be cheaper than ordering one Mazda OEM o-ring. Once I figure out the right one I will sell the rest of the pack off and I should make some money back as they come in a pack of 50.
Silverfc88 is offline
Old 02-23-14, 03:13 PM
  #7
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Likes: 0
Received 98 Likes on 85 Posts
I got one hanging on my wall.
misterstyx69 is offline
Old 02-23-14, 03:29 PM
  #8
FC guy
iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,669
Received 9 Likes on 9 Posts
Ive been running my o ring set up for few years now, datalogged and confirmed no boost leaks
Rob XX 7 is offline
Old 02-23-14, 04:12 PM
  #9
Rotary Freak
Thread Starter
iTrader: (7)

Silverfc88's Avatar

Join Date: Nov 2002
Location: Travis AFB, CA to Okinawa, Japan
Posts: 1,790
Received 1 Like on 1 Post
Rob what oil seal did you use?
Silverfc88 is offline
Old 02-23-14, 06:52 PM
  #10
FC guy
iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,669
Received 9 Likes on 9 Posts
Actually a rotor housing seal, have to cut to length
Rob XX 7 is offline
Old 03-06-14, 10:15 PM
  #11
Rotary Freak
Thread Starter
iTrader: (7)

Silverfc88's Avatar

Join Date: Nov 2002
Location: Travis AFB, CA to Okinawa, Japan
Posts: 1,790
Received 1 Like on 1 Post
So I ordered o-ring part number 9464K518 Viton(R) Fluoroelastomer O-Ring, AS568A Dash Number 155, Pack of 2 through McMaster.com

The price is $3.24 for the pair and after shipping it was $8.79.

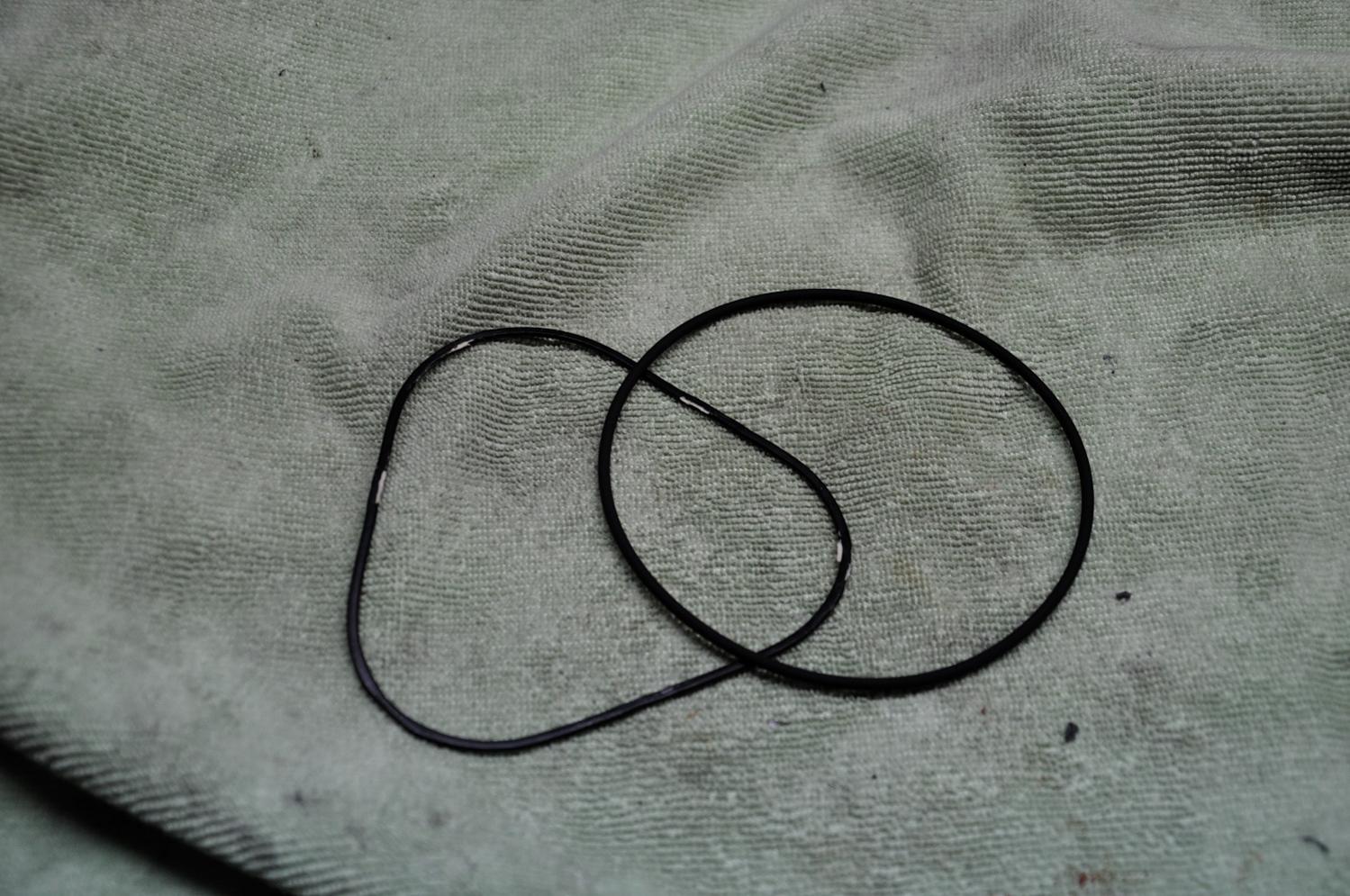

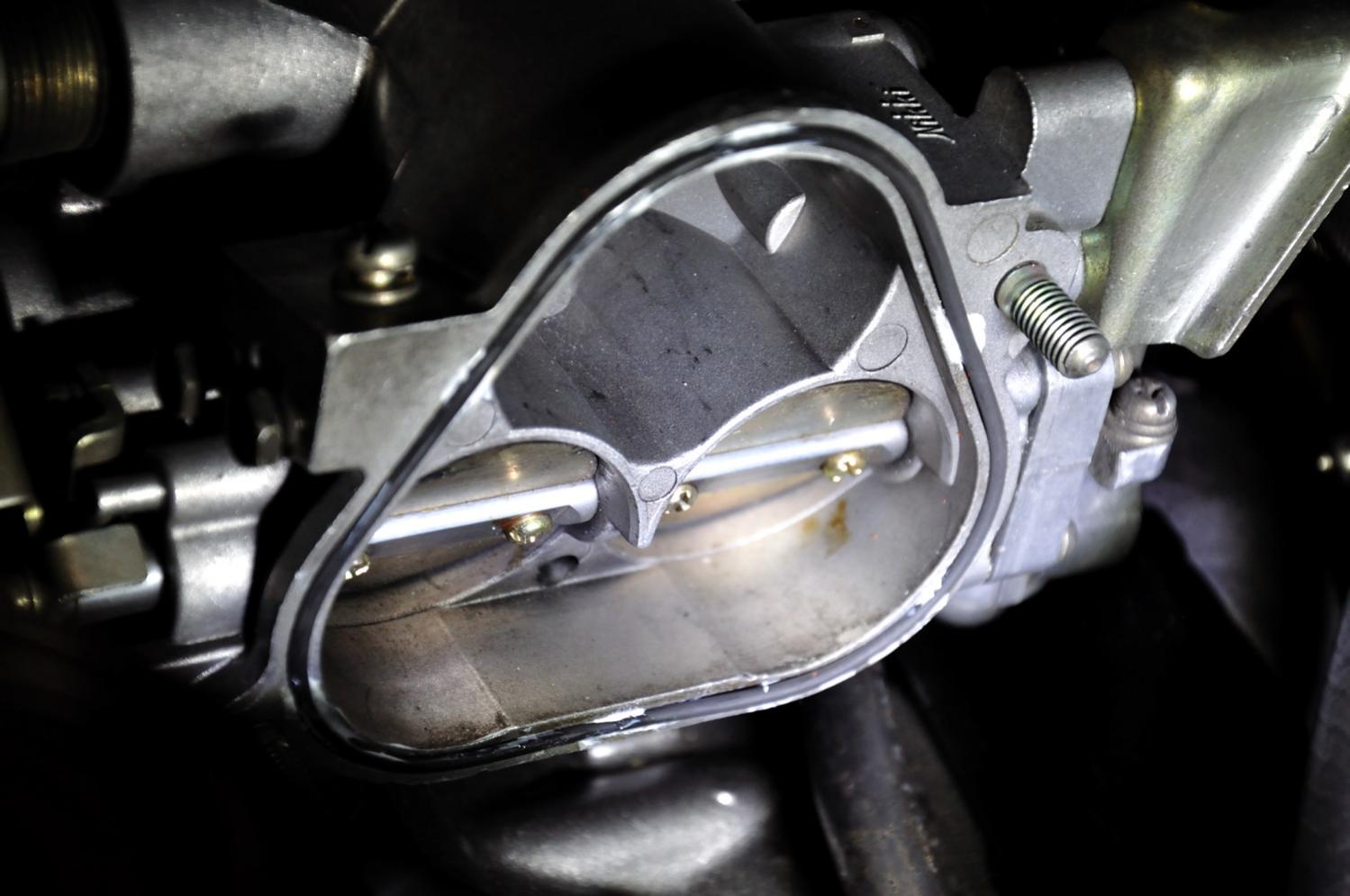

Pressure tested to 20 psi with no leaks from the throttle body elbow. This oring is slightly thicker than the stocker and will be resistant to chemicals and oil. You will have to clean off the old silicone that held the old oring in place to fit the new one and then use Vaseline or something similar to hold the new one in place to install.
Attached Thumbnails Throttle body o-ring width-mcmaster-oring.jpg   Throttle body o-ring width-dsc_0005-2-.jpg
Silverfc88 is offline
Old 03-06-14, 11:41 PM
  #12
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Likes: 0
Received 98 Likes on 85 Posts
In a pinch I have grabbed a bit of gasket material and cut out a piece to go in between the elbow and TB...just another way to skin the cat.
misterstyx69 is offline
Old 03-07-14, 10:39 AM
  #13
Life Project.
iTrader: (1)

10thaniv's Avatar

Join Date: Jan 2005
Location: BEDFORD, TX
Posts: 605
Likes: 0
Received 0 Likes on 0 Posts
I pressure tested mine and found a leak at the TB, after replacing the o-ring 2 times and then making my own out of gasket material, I found the mystery leak that mazda put by the Thermo wax area. I could never get my intake to pressurize to 5psi. I just run it with that leak. I guess I could plug it some day.
10thaniv is offline
Old 03-18-14, 01:27 PM
  #14
NA-BOOSTIN

unek87's Avatar

Join Date: Oct 2004
Location: austin,tx
Posts: 1,203
Likes: 0
Received 2 Likes on 2 Posts
Are you talking bout on the throttle plate shaft . I noticed when I removed the thermo wax and pb blasted the shafts and springs to lube them up some went through the shaft bushing . I'm going to make a block of plate for there also I guess
unek87 is offline
Old 03-18-14, 04:55 PM
  #15
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 14 Likes on 13 Posts
yes, there is a metered leak from the thermowax through a hole in the gasket material which runs next to the throttle shaft.

normally i just thread the hole that leaks and put a screw in there. looks a little strange since the hole is at a 45* angle but whatever.
RotaryEvolution is offline
Old 08-12-15, 11:50 AM
  #16
www.silverbulletrx7.com
10 Year Member

Join Date: Feb 2001
Location: Gaithersburg, Md
Posts: 936
Likes: 0
Received 0 Likes on 0 Posts
Great thread to save money but... Oops! I didn't notice it was for 2nd gen. 9464K115 should work for 3rd. I have a couple of these for the 2nd gen if anybody wants them. Just PM me.

Last edited by dis1; 08-12-15 at 12:29 PM.
dis1 is offline
Old 08-13-15, 07:32 PM
  #17
www.silverbulletrx7.com
10 Year Member

Join Date: Feb 2001
Location: Gaithersburg, Md
Posts: 936
Likes: 0
Received 0 Likes on 0 Posts
correction, try 9464K519
dis1 is offline
