supersnout hoodscoop

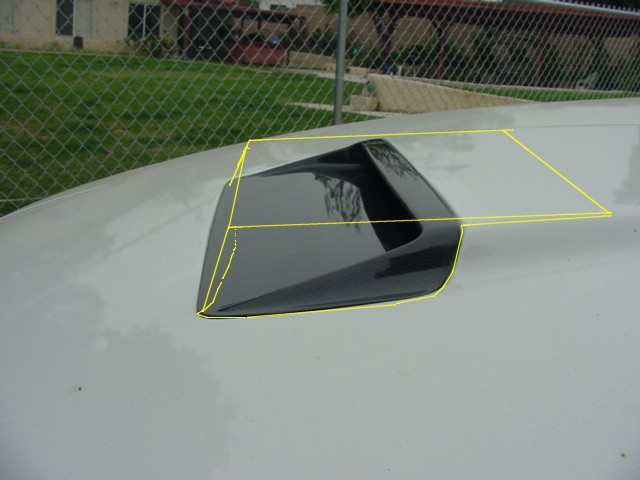

i have an idea for us stubborn/cheap/resourceful people who want to get more air to there stock IC. it would make the opening about 47.25square inches (18x2 5/8ths)from the stock 20 square inches(. it would have to help with cooling being its intake area is more than twice that of stock ) it would also move the intake closer to high pressure area so more air would go in that way. anyone think they can make it? keep your negative comments to yourself. and i dont want to hear "the stock tmic sucks" it doesnt suck its placement sucks. if anyone thinks they can make something that would look stock just bigger pm me. it would still have the same curves as stock
#3
Locust of the apocalypse
Join Date: Apr 2003
Location: Directly above the center of the earth (York, PA)
Posts: 2,553
Likes: 0
Received 1 Like
on
1 Post
Go get yourself some balsawood and some fiberglass and go to it.....
However.. You do realize that in order to see any real benifit.. you'll have to cut the hood up.. extending the upper part of the cutout back to the front of the intercooler
you couldn't just alter a stock insert because the internal cross section at the rear of the insert would still be about 20 square inches........ Well, you would get more air, but the restriction at the bottle neck would hinder it.
I could alter a stock insert to look like what you want in a weekend and have it glassed, bonded and ready for paint...
but.. If i were going to to that.. I'd just alter the entire hood making the entire IC tunnel from opening to the IC dump area bigger and integrating it into the hood rather than fabbing up an insert.
also.. I'd get one of those old HKS upgrade TMIC's if you can find it.. they are about 25% bigger than stock.
finally.. the stock TMIC sucks.... its just to freakin small to handle anything over the stock boost levels.
However.. You do realize that in order to see any real benifit.. you'll have to cut the hood up.. extending the upper part of the cutout back to the front of the intercooler
you couldn't just alter a stock insert because the internal cross section at the rear of the insert would still be about 20 square inches........ Well, you would get more air, but the restriction at the bottle neck would hinder it.
I could alter a stock insert to look like what you want in a weekend and have it glassed, bonded and ready for paint...
but.. If i were going to to that.. I'd just alter the entire hood making the entire IC tunnel from opening to the IC dump area bigger and integrating it into the hood rather than fabbing up an insert.
also.. I'd get one of those old HKS upgrade TMIC's if you can find it.. they are about 25% bigger than stock.
finally.. the stock TMIC sucks.... its just to freakin small to handle anything over the stock boost levels.
Last edited by YearsOfDecay; 07-20-05 at 12:09 PM.
#4
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts
It's an interesting idea, but I'm with YoD- you probably won't see any benefit from it.
I'm doing a budget front-mount myself based on a Volvo 760 intercooler (AKA a $30 junkyard special.)
I'm doing a budget front-mount myself based on a Volvo 760 intercooler (AKA a $30 junkyard special.)
#7
Locust of the apocalypse
Join Date: Apr 2003
Location: Directly above the center of the earth (York, PA)
Posts: 2,553
Likes: 0
Received 1 Like
on
1 Post
Originally Posted by coldfire
i say modify the hood so you can also put an e-fan on the TMIC also. that way you get less heat soak when you aren't moving very fast
Trending Topics
#8
DONT FEED THE NOOBS
Thread Starter
Join Date: Mar 2001
Location: land of slow hondas .... TULSA, OK
Posts: 1,270
Likes: 0
Received 0 Likes
on
0 Posts
in order for me to do something like that i would need an extra hood and scoop its could be dinged and beat to hell.. as long as i had something to start with
.. but my car isnt the guinea
.. but my car isnt the guinea
#12
ERTW
iTrader: (1)
Join Date: Oct 2002
Location: Ottawa, Canada
Posts: 4,328
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by YearsOfDecay
Actually.... i think there are e-fans that would fit without hood mods... but.. this would REALLY restrict the flow when it is not on!!
#13
DONT FEED THE NOOBS
Thread Starter
Join Date: Mar 2001
Location: land of slow hondas .... TULSA, OK
Posts: 1,270
Likes: 0
Received 0 Likes
on
0 Posts
thats falls under the "stock mounts sucks" category......... hush up unless you are presenting a solution INCLUDING STOCK MOUNT :-P.. muhahahahaha also the hood scoop is being moved foward into a higher pressure area jus a lil didnt my initial post mention that........
Last edited by gxlbiscuit; 07-20-05 at 06:51 PM.
#14
Yeah, low pressure ...what do you think that means no airflow? LOL, how does an airplane fly? Big low pressure ontop of the wing....think there is much airflow on the top of a wing
Last edited by DoStampIt; 07-20-05 at 07:16 PM.
#15
rawr
iTrader: (2)
Join Date: Feb 2001
Location: Silver City, NM
Posts: 2,331
Likes: 0
Received 0 Likes
on
0 Posts
^ lol yea, low pressure doesnt mean there is not any air.
i think it might increase the efficiency of the stock mounted IC, should increase air velocity going in and slightly increase volume of air going in, considering that the stock "duct" probably has limited air flow capability, but even if the stock duct uses the max amount of volume that can go in, velocity would still be increased resulting in better efficiency since the air would be moving fast enough to keep it from heating up as much.
but i could be wrong, since i dont know a lot about IC's and turbo's, im an n/a guy if it works like the coolant system, more velocity might not be a good thing, like in the cooling system if you remove the thermostat the water moves freely and doesnt absorb any of the heat from the places that need to dissipate that heat and it reduces the efficiency overall.
i think it might increase the efficiency of the stock mounted IC, should increase air velocity going in and slightly increase volume of air going in, considering that the stock "duct" probably has limited air flow capability, but even if the stock duct uses the max amount of volume that can go in, velocity would still be increased resulting in better efficiency since the air would be moving fast enough to keep it from heating up as much.
but i could be wrong, since i dont know a lot about IC's and turbo's, im an n/a guy if it works like the coolant system, more velocity might not be a good thing, like in the cooling system if you remove the thermostat the water moves freely and doesnt absorb any of the heat from the places that need to dissipate that heat and it reduces the efficiency overall.
#16
DONT FEED THE NOOBS
Thread Starter
Join Date: Mar 2001
Location: land of slow hondas .... TULSA, OK
Posts: 1,270
Likes: 0
Received 0 Likes
on
0 Posts
valid point thanks man i guess people feel its there role to prove people wrong on here. either way its being forcefed more air
#17
Dude, don't get discourage...the tmic does work at speed....however it does not take much for the IC to get overwheelmed by heat. I was cruising at 90ish in my TII and had an intake temp gauge.....just boosting 3-4 psi constantly i watched the temps go up and not cool untill i was off the throttle.....it just needs a bigger scoop and it would help....but this will do nothing for sitting in traffic heat soak.
#20
Not a Racist
Join Date: Aug 2003
Location: virginia
Posts: 1,514
Likes: 0
Received 0 Likes
on
0 Posts
oh and if anything the heat sheild is keeping it from flowing better
HEAT SOAK = INEVITABLE
either from the engine or from the road during the summer heat soak cant be avoided
HEAT SOAK = INEVITABLE
either from the engine or from the road during the summer heat soak cant be avoided
#21
Rotorhead
Join Date: Jul 2005
Location: San Diego, CA
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
Somebody already thought about that about ten years ago, I've only seen one car with it, Gardy Palacios from "Mecanica El Psiquiatra" in Puerto Rico has it on his TII, it looks awesome, looks like factory option. I'll try to get in touch with him for pics and see if he has a mold.
#25
Not a Racist
Join Date: Aug 2003
Location: virginia
Posts: 1,514
Likes: 0
Received 0 Likes
on
0 Posts
but on topic
cut the heat sheild off your ic and put a bigger scoop it will cool better when it needs to be cooled
again heat soak is inevitable if u want to still deflect the heat fromk the engine and ur rats nest is removed
attach your heat sheild to the engine block and not the ic
cut the heat sheild off your ic and put a bigger scoop it will cool better when it needs to be cooled
again heat soak is inevitable if u want to still deflect the heat fromk the engine and ur rats nest is removed
attach your heat sheild to the engine block and not the ic
