Stripped screw on HUB ( removal tips )
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I'd drill the HEAD off. No more than just the head of the screw. Then remove the hub and unscrew the shank with your fingers.

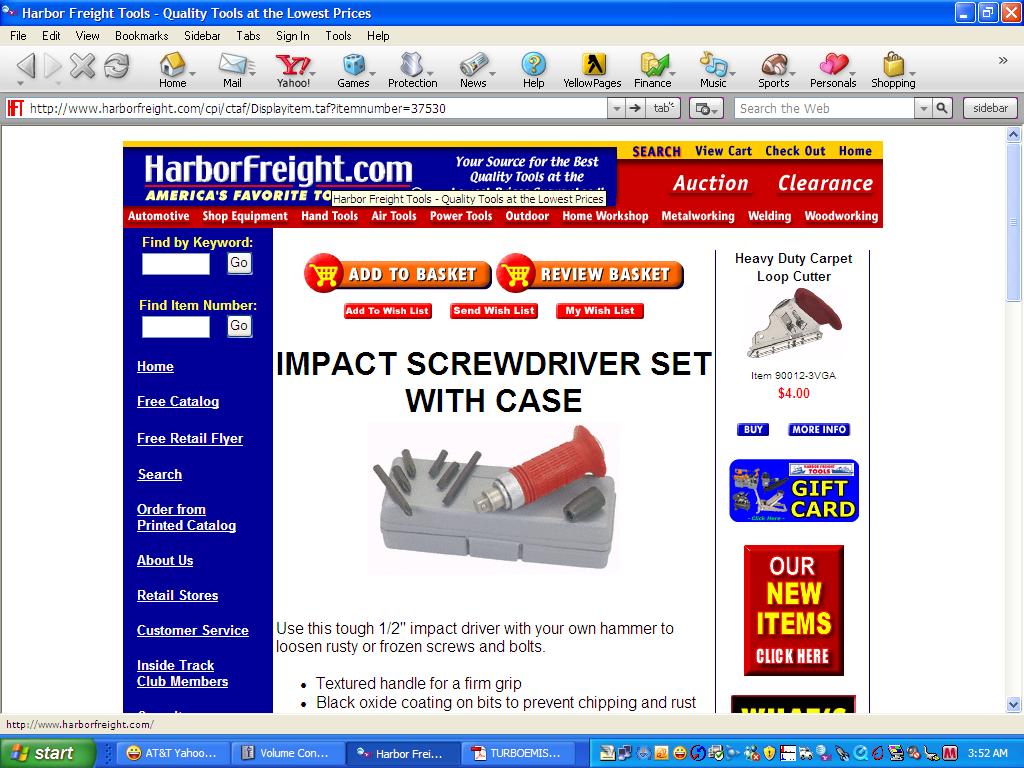

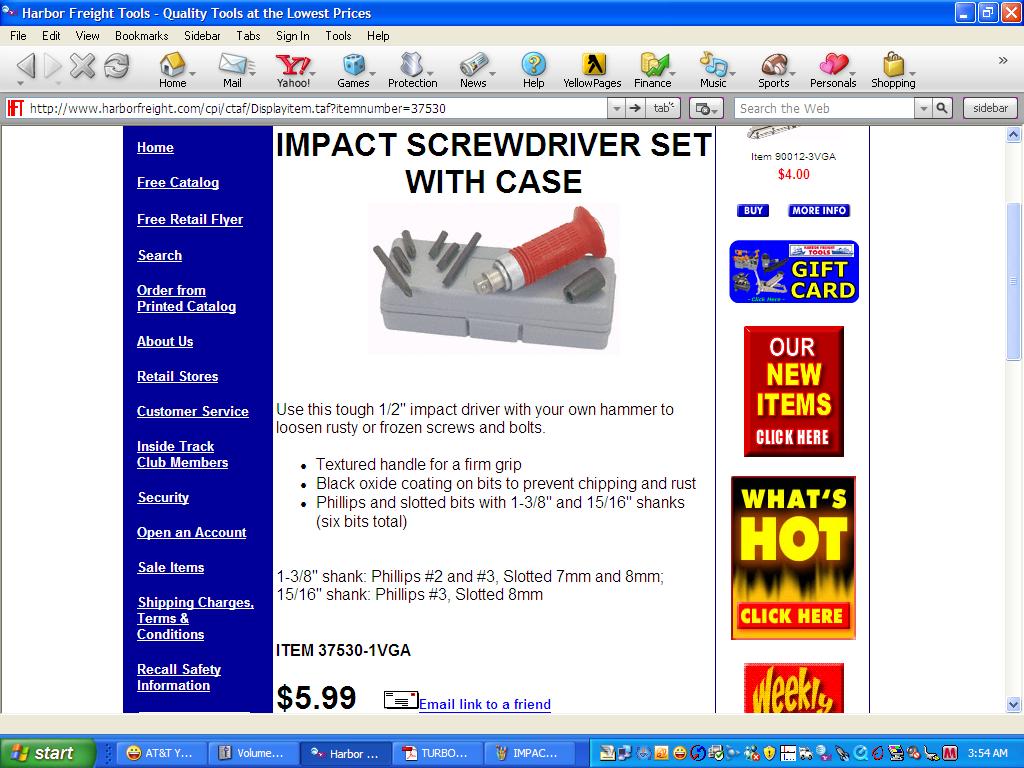

Others would buy a impact driver and hit the driver with a hammer and the screw would probably come out. But they cost a few bucks.
Others would buy a impact driver and hit the driver with a hammer and the screw would probably come out. But they cost a few bucks.
Last edited by HAILERS; 11-24-08 at 03:57 AM.
#5
Cake or Death?
iTrader: (2)
Take a sharp punch, place it close to the edge of the head and hit it with a hammer- in a counterclockwise direction, obviously.
Usually it's not the threads that have seized, it's the large angled area under the head in the countersink.
When you get it out, replace it with an Allen head instead of a Phillips (got mine from Ace Hardware) and use anti-seize on the threads and below the head.
Usually it's not the threads that have seized, it's the large angled area under the head in the countersink.
When you get it out, replace it with an Allen head instead of a Phillips (got mine from Ace Hardware) and use anti-seize on the threads and below the head.
#7
NASA-MW ST4
iTrader: (7)
Take a sharp punch, place it close to the edge of the head and hit it with a hammer- in a counterclockwise direction, obviously.
Usually it's not the threads that have seized, it's the large angled area under the head in the countersink.
When you get it out, replace it with an Allen head instead of a Phillips (got mine from Ace Hardware) and use anti-seize on the threads and below the head.
Usually it's not the threads that have seized, it's the large angled area under the head in the countersink.
When you get it out, replace it with an Allen head instead of a Phillips (got mine from Ace Hardware) and use anti-seize on the threads and below the head.
btw, there are extra holes in the hub for the screws so don't worry about it too much.
Trending Topics
#8
i had the same thing with mine! i took it to a shop. they had that thing taken out like candy. do mess it up if you think you cant do it, let someone with the right tools do it.
#11
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Ahh, just drill the HEAD off and remove the rotor/hub and then spin the shank out with your fingers. Takes but a moment. You don't have to drill the shank out, or even into the shank. Just get a drill bit larger than the shank and drill the HEAD off.
