Something is wrong need your help

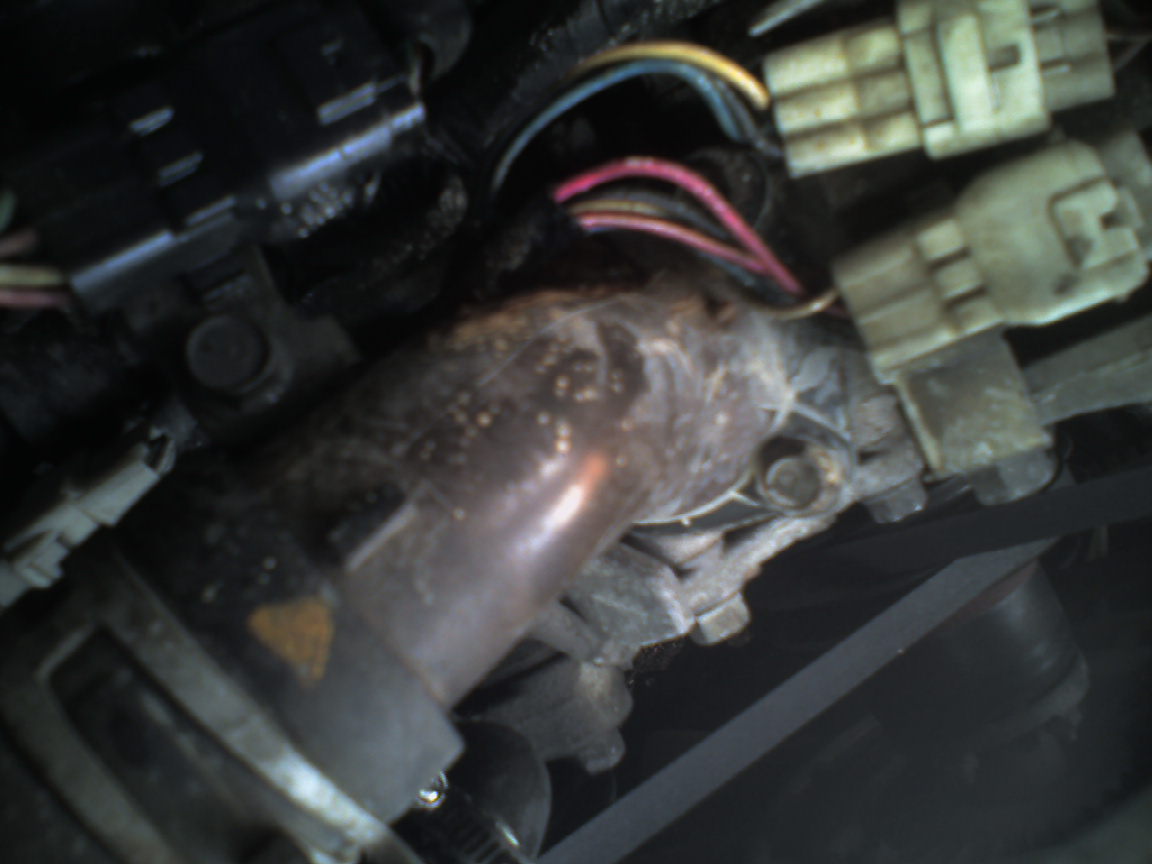

I was driving came to a stop light then my car die out on me and i couldn't start it back up, i notice that the temp gauge was off the chart, i got scared and sat at the stop light for 20 min, after 20 min i started it up and drove it back which is like 1 min away from that stop light, so i was able to drive home thank goodness, when i went to pop the hood i notice there a crack where the upper radiator hose connect to, BTW i just had my new radiator install, so can you tell me what this is so i can get it replace.


Thank You
Attached Thumbnails Something is wrong need your help-photo-0164.jpg
Old 05-09-06, 02:49 PM
  #2
Crash Auto?Fix Auto.

iTrader: (3)

classicauto's Avatar

Join Date: May 2003
Location: Hagersville Ontario
Posts: 7,831
Likes: 0
Received 2 Likes on 2 Posts
thats the neck for the water pump

if I were you, after having overheated the car, I would check for bubbles in the coolant system before you even start replacing parts. You might have blown a coolant seal in the engine as a result of the temperature.

Start the car (stone cold) and check the overflow resevoir, if coolant is PISSING out, you probably have a blown coolant seal.
Old 05-09-06, 03:40 PM
  #3
Full Member

iTrader: (1)

str84wardchuck's Avatar

Join Date: Aug 2004
Location: Camarillo
Posts: 129
Likes: 0
Received 0 Likes on 0 Posts
"Start the car (stone cold) and check the overflow resevoir, if coolant is PISSING out, you probably have a blown coolant seal"

huh....really, when my car was running, the resevoir did that everytime I drive it, I had to constantly add coolant, so that means I had a blown coolant seal? how does that work?
thanks for the info, sorry to steal thread kinda....

Charlie
Old 05-09-06, 03:54 PM
  #4
Full Member

Thread Starter

kamikazee47's Avatar

Join Date: Apr 2006
Location: VA, USA
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
what is that call, the tube?
Old 05-09-06, 03:58 PM
  #5
Rotary Enthusiast


Goofy's Avatar

Join Date: Feb 2006
Location: USA
Posts: 886
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by classicauto
thats the neck for the water pump
+1
Old 05-09-06, 04:00 PM
  #6
Crash Auto?Fix Auto.

iTrader: (3)

classicauto's Avatar

Join Date: May 2003
Location: Hagersville Ontario
Posts: 7,831
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by classicauto
thats the neck for the water pump
.................................................. .................................................. .

Originally Posted by kamikazee47
what is that call, the tube?
its called the water pump neck........

Originally Posted by str84rwardchuck
how does that work?
The compression from the motor (especially before there has been no exapnsion in the motor from engine temp) will push the coolant out, instead of where its supposed to go.......another tell tale sign is constant water bubbles in the coolant system.......or a sweet smell in the exhaust, coupled with rapid, constant loss of coolant.
Old 05-09-06, 09:42 PM
  #7
Full Member

Thread Starter

kamikazee47's Avatar

Join Date: Apr 2006
Location: VA, USA
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
Okay i don't know where to buy a water neck could you help find where i can buy one i search the internet but no luck or maybe i didn't search hard enough?
Old 05-09-06, 10:20 PM
  #8
spunout


91verty's Avatar

Join Date: Dec 2005
Location: Austin
Posts: 1,029
Likes: 0
Received 0 Likes on 0 Posts
thats a 89-91 ''series 5'' thermostat housing neck. It sounds like if you did not drive the car a long ways then you might still be safe. I would recommend going to your nearest salvage yard and getting one if you can. Also you probably wanna go ahead and get a new thermostat.

But before you take your existing one off, be very careful when you loosen the 2 bolts that hold it on. They tend to snap due to high temp exposure. Use some wd40 or something similar to help loosen the bolts.

You do not wanna break those babies because then you have to tap them out and it is a pain in the *** not to mention very dangerous. YOu could potentially get shavings in the water and then you will be doomed.

BTW i have had many 7's that spewed a little water into the overflow and it wasnt a indication that my coolent seals were bad. The most tell-tale sign in my personal opinion would be to watch the coolant level and to smell for a burnt coolant smell from the exhaust.

Another would be to look for a good amount of white chalky looking smoke upon start up.

Ps. do not getthe neck with the cap on it. YOu need the one without it.
Old 05-13-06, 12:47 AM
  #9
Full Member

Thread Starter

kamikazee47's Avatar

Join Date: Apr 2006
Location: VA, USA
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
wow that one piece cost me 85 bucks, and the only place i could buy it from was the mazda dealer, i have another question how would i install these headlight what i mean is that there is a blue bulb and i do not no where to connect the wires to, one more thing fog lights, isnt the foglights H3? when i bought it, it look different it has like 1 connection
Attached Thumbnails Something is wrong need your help-h3.jpg   Something is wrong need your help-h4.jpg
