2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

So I just stripped out the threads on the engine where the thermostat is...

Thread Tools

Search this Thread

Old May 16, 2011 | 02:58 PM
  #1
RX7 Zac's Avatar
Thread Starter
Junior Member

Joined: Aug 2010
Posts: 11
Likes: 0
From: San Antonio, TX
So I just stripped out the threads on the engine where the thermostat is...

You know the plastic housing that the upper radiator belt goes onto, then connects to the engine... Well, I overtightened it and now the inside has become metal shreds... Any suggestions? I feel like I just ruined my car D:

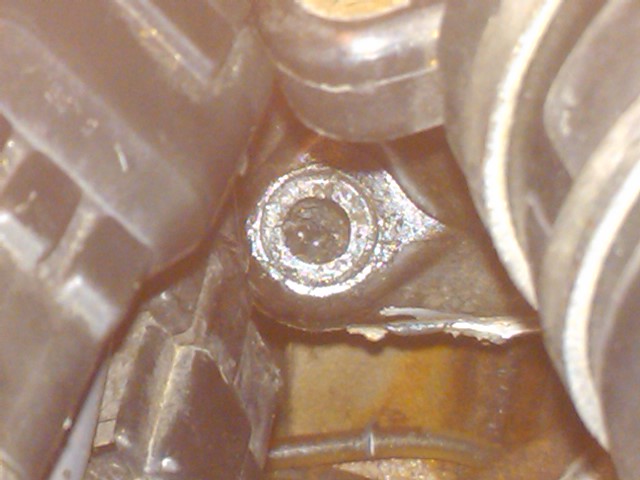

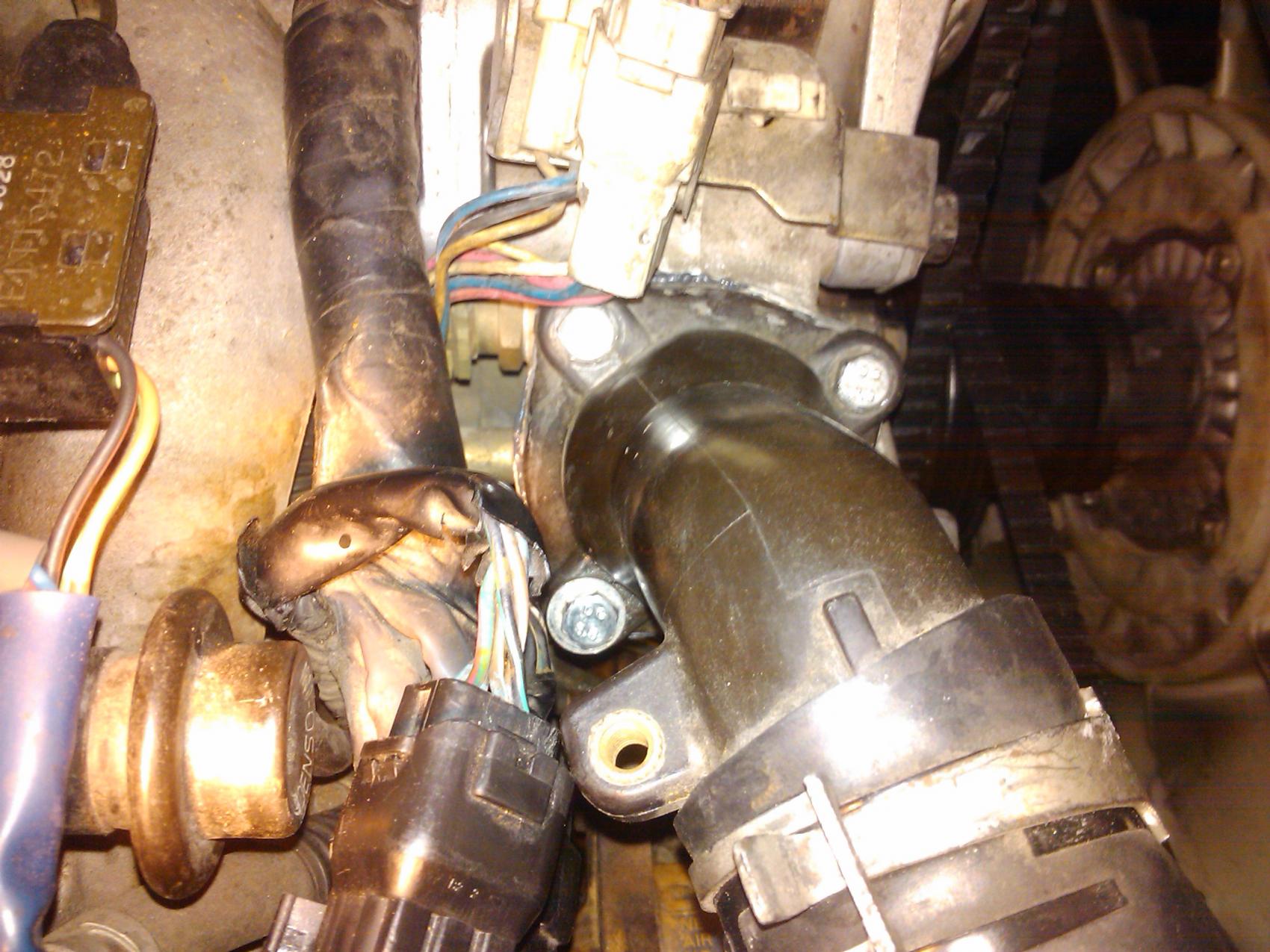

Attached Thumbnails So I just stripped out the threads on the engine where the thermostat is...-2011-05-16-14.52.01.jpg   So I just stripped out the threads on the engine where the thermostat is...-2011-05-16-14.54.07.jpg
Reply
Old May 16, 2011 | 03:32 PM
  #2
87 t-66's Avatar
not a drifter
Tenured Member: 20 Years
iTrader: (133)

Joined: Jun 2004
Posts: 9,337
Likes: 6
From: Columbus, Ohio
drill it out or get another housing
Reply
Old May 16, 2011 | 03:45 PM
  #3
20Bforme's Avatar
three spinning triangles
Tenured Member 10 Years

Joined: Oct 2003
Posts: 1,441
Likes: 0
From: SE Wisconsin
Originally Posted by 87 t-66
drill it out or get another housing


+1

really the only thing you can do.
Reply
Old May 16, 2011 | 04:17 PM
  #4
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
go to the hardware store and ask the clerk for a 6mmX1.0 "heli-coil" set.

it will require drilling and tapping but the end result will be much stronger than the original.
Reply
Old May 16, 2011 | 04:18 PM
  #5
arghx's Avatar
rotorhead
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Aug 2004
Posts: 16,205
Likes: 461
From: cold
+1 for heli coil. they aren't too expensive in that size.

what you have encountered is common on the thermostat housing. I've done it twice, once on my old FC and once on my old Supra
Reply
Old May 16, 2011 | 04:48 PM
  #6
RX7 Zac's Avatar
Thread Starter
Junior Member

Joined: Aug 2010
Posts: 11
Likes: 0
From: San Antonio, TX
Ah the pics are a bit misleading because I left the plastic housing on... I stripped the inside of the block, under the plastic housing. Been talking to people and everyone recommends tap and die, so that seems to be the way to go. Thanks!
Reply
Old May 16, 2011 | 05:07 PM
  #7
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
you can't tap it any larger because the neck holes are only made for a 6mm size threaded bolt, which comes back to heli-coil which is a stainless steel thread insert after tapping the hole to the next size larger. it allows you to use the same size original bolt while ditching the weak aluminum threads.
Reply
Old May 16, 2011 | 05:08 PM
  #8
john ward's Avatar
oi oi oi
Tenured Member 05 Years
iTrader: (7)

Joined: Jan 2006
Posts: 611
Likes: 1
From: wilmot,oh
No the pictures were not misleading. Do what Karack and Arghx said and all will be good. Heli coils are fairly simple to install.
Reply
Old May 16, 2011 | 05:26 PM
  #9
Nick_d_TII's Avatar
Rotary Freak
Tenured Member 20 Years
iTrader: (6)

Joined: May 2002
Posts: 1,620
Likes: 6
From: Beaverton, OR
There are also press-in and screw-in threaded inserts, although I've never used them...

http://www.mcmaster.com/#threaded-inserts/=cc23gt
Reply
Old May 16, 2011 | 05:48 PM
  #10
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
Originally Posted by Nick_d_TII
There are also press-in and screw-in threaded inserts, although I've never used them...

http://www.mcmaster.com/#threaded-inserts/=cc23gt
after seeing thread-serts fail miserably in my time at cadillac on the northstar engines i try to avoid them like the plague.

the self tapping would probably be the best alternative, the press fit ones just don't hold.
Reply
Old May 16, 2011 | 05:58 PM
  #11
stevensimon's Avatar
Banned. I got OWNED!!!
iTrader: (11)

Joined: Aug 2003
Posts: 3,575
Likes: 6
From: salt lake ut
I've had amazing luck with kingserts, not so much with heli coil
Reply
Old May 16, 2011 | 09:03 PM
  #12
RX7 Zac's Avatar
Thread Starter
Junior Member

Joined: Aug 2010
Posts: 11
Likes: 0
From: San Antonio, TX
Thanks everyone, all seems good following these suggestions... Started with no leak for a few minutes... Just giving the gasket some time to set in, going to start and drive it soon!
Reply
