Small engine fire, what is the name of this piece.
#1
Senior Member
Thread Starter
Join Date: Sep 2003
Location: Aurora, IL and Milwaukee, WI
Posts: 376
Likes: 0
Received 0 Likes
on
0 Posts
Small engine fire, what is the name of this piece.

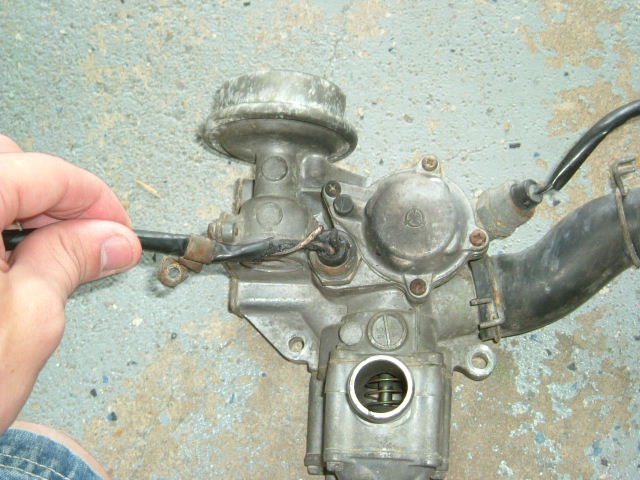

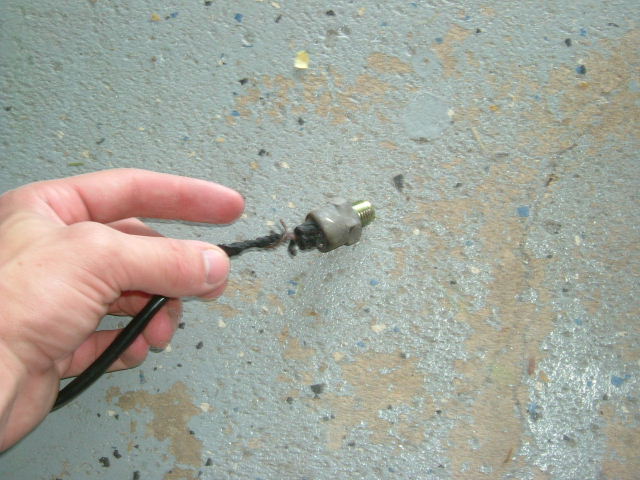

Sorry for the very vague title. Anyway I was working on my car today and noticed that when I was finished and started the engine up that it was smoking from under the hood. I quickly shut the engine off and sure enough there was a small flame on the passenger side. As you can see in the picture, the wire and the solenoid that it was attached to were melted. I am wondering exactly what this wire does and if it is really needed. Yes I still have the air pump and emmission on so I can not block the entire unit off. Oh and if anyone has an extra one for sale hit me up! Thanks
#2
Rotary Power
iTrader: (15)
Originally Posted by BigTone
Sorry for the very vague title. Anyway I was working on my car today and noticed that when I was finished and started the engine up that it was smoking from under the hood. I quickly shut the engine off and sure enough there was a small flame on the passenger side. As you can see in the picture, the wire and the solenoid that it was attached to were melted. I am wondering exactly what this wire does and if it is really needed. Yes I still have the air pump and emmission on so I can not block the entire unit off. Oh and if anyone has an extra one for sale hit me up! Thanks
#3
*nods* Air control valve. It's a fairly important part of the emissions equipment, it redirects air to the cats as needed.
I probably have a few laying around. I'll also be passing through Aurora on the way to Downers Grove next weekend.
More importantly, do you know WHY your engine started on fire? I'd be more concerned about that right now.
-=Russ=-
I probably have a few laying around. I'll also be passing through Aurora on the way to Downers Grove next weekend.
More importantly, do you know WHY your engine started on fire? I'd be more concerned about that right now.
-=Russ=-
Last edited by Syonyk; 06-18-05 at 09:59 PM.
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I take it your Split Air Solenoid on the ACV burnt up due to the wires being shorted out. Unscrew one from a acv in the wrecking yard and install it. Odd that you didn't mention a fuse being burnt out.
#6
Lives on the Forum
Originally Posted by HAILERS
I take it your Split Air Solenoid on the ACV burnt up due to the wires being shorted out. Unscrew one from a acv in the wrecking yard and install it. Odd that you didn't mention a fuse being burnt out.
The question is WHY are they burning up? Is it just old wiring right at the plug back that tends to break and short?
Is it an old coil in the solenoid shorting out and drawing excessive current?
Why do they seem to short out at idle while the car's sitting still? They shouldn't be energized at that point...
Is it something that fritzes out in the ECU that grounds that solenoid forever and ever, causing it to remain energized as long as the key is on, which leads it to a shorted death?
So many questions, so few answers...I'll expect a full report on my desk by noon tomorrow...
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Try this. Unscrew the Split Air Solenoid. Don't drop the small spring and poppet valve. Now unscew the Port Air Solenoid on the front of the acv. Swap the two solneoids.
The Port Air Solenoid is disabled after 20,000 miles so there's no loss there. The only thing you will HAVE to do now, is extract the two wires out of the Port air solenoid and install the PLUG for the Split Air Solenoid on those two wires. You do this so you can connect the NEW Split Air Solienoid to its mating connector. Make sense. Does to me. You? Or how about YOU NEED TO SWAP THE PLUGS B/T THE PORT AIR SOLENOID AND SPLIT AIR SOLENOID PRIOR TO SWAPPING THE TWO SOLENOIDS. The two plugs are different and won't mate right unless you do that.
Why do the wires short? How about someone unscrewing one of the solenoids and letting the wires twist 'round and 'round and 'round??????????? Yeah. That's it.
The Port Air Solenoid is disabled after 20,000 miles so there's no loss there. The only thing you will HAVE to do now, is extract the two wires out of the Port air solenoid and install the PLUG for the Split Air Solenoid on those two wires. You do this so you can connect the NEW Split Air Solienoid to its mating connector. Make sense. Does to me. You? Or how about YOU NEED TO SWAP THE PLUGS B/T THE PORT AIR SOLENOID AND SPLIT AIR SOLENOID PRIOR TO SWAPPING THE TWO SOLENOIDS. The two plugs are different and won't mate right unless you do that.
Why do the wires short? How about someone unscrewing one of the solenoids and letting the wires twist 'round and 'round and 'round??????????? Yeah. That's it.
Trending Topics
#8
Lives on the Forum
Originally Posted by HAILERS
Why do the wires short? How about someone unscrewing one of the solenoids and letting the wires twist 'round and 'round and 'round??????????? Yeah. That's it.
And second, who in their right mind would let the wires twist up while they were wrenching on the solenoid?
Personally, I like the "ECU is perpetually grounding the solenoid" theory. Yep, that's my favorite...It also neatly explains why the fuse isn't blowing...
Last edited by WAYNE88N/A; 06-19-05 at 09:54 PM.
#9
Senior Member
Originally Posted by HAILERS
Try this. Unscrew the Split Air Solenoid. Don't drop the small spring and poppet valve. Now unscew the Port Air Solenoid on the front of the acv. Swap the two solneoids.
The Port Air Solenoid is disabled after 20,000 miles so there's no loss there. The only thing you will HAVE to do now, is extract the two wires out of the Port air solenoid and install the PLUG for the Split Air Solenoid on those two wires. You do this so you can connect the NEW Split Air Solienoid to its mating connector. Make sense. Does to me. You? Or how about YOU NEED TO SWAP THE PLUGS B/T THE PORT AIR SOLENOID AND SPLIT AIR SOLENOID PRIOR TO SWAPPING THE TWO SOLENOIDS. The two plugs are different and won't mate right unless you do that.
Why do the wires short? How about someone unscrewing one of the solenoids and letting the wires twist 'round and 'round and 'round??????????? Yeah. That's it.
The Port Air Solenoid is disabled after 20,000 miles so there's no loss there. The only thing you will HAVE to do now, is extract the two wires out of the Port air solenoid and install the PLUG for the Split Air Solenoid on those two wires. You do this so you can connect the NEW Split Air Solienoid to its mating connector. Make sense. Does to me. You? Or how about YOU NEED TO SWAP THE PLUGS B/T THE PORT AIR SOLENOID AND SPLIT AIR SOLENOID PRIOR TO SWAPPING THE TWO SOLENOIDS. The two plugs are different and won't mate right unless you do that.
Why do the wires short? How about someone unscrewing one of the solenoids and letting the wires twist 'round and 'round and 'round??????????? Yeah. That's it.
Edit: Ok, I just found this, interesting and still confused.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/port-air-solenoid-453736/
Last edited by daten; 10-20-05 at 09:24 PM.
#10
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Yes. It's written in the online factory service manual. It's for allowing more air into the exaust ports during the first 20,000 miles to help keep the emissions cleaner.
If you want you can leave the poppet valve out and have it supply air anytime your running. That's EXTRA air to go along with the rest of the air from the airpump to the exaust ports. EXAUST PORTS, as in the exaust ports on the enginej just before the exaust manifold.
In other words it never again receives a ground signal from the ECU after 20,000 miles (with exceptions to the rule). It take a gnd signal to open them. 12vdc is always there with the key to ON or better.
If you want you can leave the poppet valve out and have it supply air anytime your running. That's EXTRA air to go along with the rest of the air from the airpump to the exaust ports. EXAUST PORTS, as in the exaust ports on the enginej just before the exaust manifold.
In other words it never again receives a ground signal from the ECU after 20,000 miles (with exceptions to the rule). It take a gnd signal to open them. 12vdc is always there with the key to ON or better.
Last edited by HAILERS; 10-20-05 at 09:46 PM.
