simle engine cleanout (removing the un-needed)
#1
Full Member
Thread Starter
Join Date: Aug 2002
Location: Pennsylvania
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
simle engine cleanout (removing the un-needed)
ok so I know i can get rid of a bunch of stuff in my engine bay to make it simpler and easier to get to stuff... what is it? I have a 87 s4 T2. what to take out... including ac emissions everything... what don't ineed in there?
#6
Full Member
Join Date: Apr 2002
Location: new hampshire, middleton(a town so small we have no conveince stores)
Posts: 241
Likes: 0
Received 0 Likes
on
0 Posts
ok you can
1) cold start assist
2) the cold start assost fuild tank/all the hoses for the tank
3) cold start assist solinoid
4)acv/ then you have to remove your cats..
5)all vac lines exept for 8( 1 to each oil injector, one to the middle of the injectors on the lower manifold, and one to the 2ndary fuel rail, the one that goes form the pressure senor to the manilfold, and the one that goes for the tid to the manifold.)
4)charcol canister, and piping, just cap off lines.
5)relocate battery
6) all a/c parts
7)air pump
i might have missed something but thats a good start.
--joe
1) cold start assist
2) the cold start assost fuild tank/all the hoses for the tank
3) cold start assist solinoid
4)acv/ then you have to remove your cats..
5)all vac lines exept for 8( 1 to each oil injector, one to the middle of the injectors on the lower manifold, and one to the 2ndary fuel rail, the one that goes form the pressure senor to the manilfold, and the one that goes for the tid to the manifold.)
4)charcol canister, and piping, just cap off lines.
5)relocate battery
6) all a/c parts
7)air pump
i might have missed something but thats a good start.
--joe
#7
Senior Member
Join Date: Feb 2002
Location: Dover NH
Posts: 706
Likes: 0
Received 0 Likes
on
0 Posts
Joe, you forgot the vac, line to the BOV! Unless your gonna tee it from the line to the press sensor(that you dont have!!).
Ill add
1. thermowax
2. power steering
3. dashpot (if willing to do so)
4. fanshroud(if you go w? elec. fan)
5. the bolts that held the items Joe mentioned!
6. Air box and snorkel(requires cone filter)
7. The wire conectors to the crap you removed
Thats all I got.
Ill add
1. thermowax
2. power steering
3. dashpot (if willing to do so)
4. fanshroud(if you go w? elec. fan)
5. the bolts that held the items Joe mentioned!
6. Air box and snorkel(requires cone filter)
7. The wire conectors to the crap you removed
Thats all I got.
Trending Topics
#10
Full Member
Join Date: Apr 2002
Location: new hampshire, middleton(a town so small we have no conveince stores)
Posts: 241
Likes: 0
Received 0 Likes
on
0 Posts
all the chach canister does is makes it so there is no pressure biuld up in you gas tank so with out it when you open your gas tank it will hiss a bit thats all....
ps.. fred i will be getting that pressure senors form you soon
--joe
ps.. fred i will be getting that pressure senors form you soon
--joe
Last edited by SLOWT2; 09-29-02 at 12:54 PM.
#12
Full Member
Join Date: Apr 2002
Location: new hampshire, middleton(a town so small we have no conveince stores)
Posts: 241
Likes: 0
Received 0 Likes
on
0 Posts
i love mine its a preety big core once you get the two welded together, almost the same size as a spearco universial core,
#13
Your Opinion is Wrong
Join Date: Feb 2001
Location: Peoples Republic of California
Posts: 591
Likes: 0
Received 0 Likes
on
0 Posts
If you are ditching the A/C you can pull the BAC off too, and if you've remeoved the themowax system the collant line on the block, and the one on the back of the water pump neck can both be capped off.
You can also pull off the windshield whippers and motors...
You can also pull off the windshield whippers and motors...
#16
Full Member
Join Date: Apr 2001
Location: Smyrna, TN, USA
Posts: 144
Likes: 0
Received 0 Likes
on
0 Posts

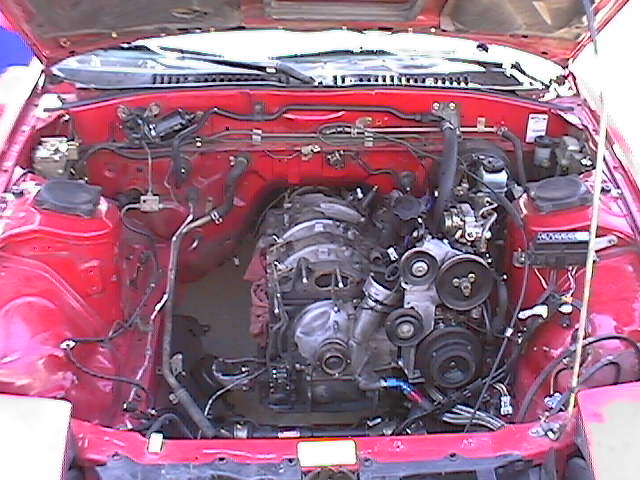

This is my vert minus just about everything.
Now I moved somewhere that has emissions testing.. anybody want to donate their airpump and other emmisions equimpment for a 90 NA?
#17
Glock Lover
Join Date: Mar 2001
Location: Currently residing in St Charles, MO
Posts: 2,223
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by ReZ311
This is how you get rid of all the Bullshit.
This is how you get rid of all the Bullshit.
