should these connect?
Here's an electrical question.
I finished installing a PLX gauge system and now the starter won't spin. I can start the car with an external switch, but not with the key.

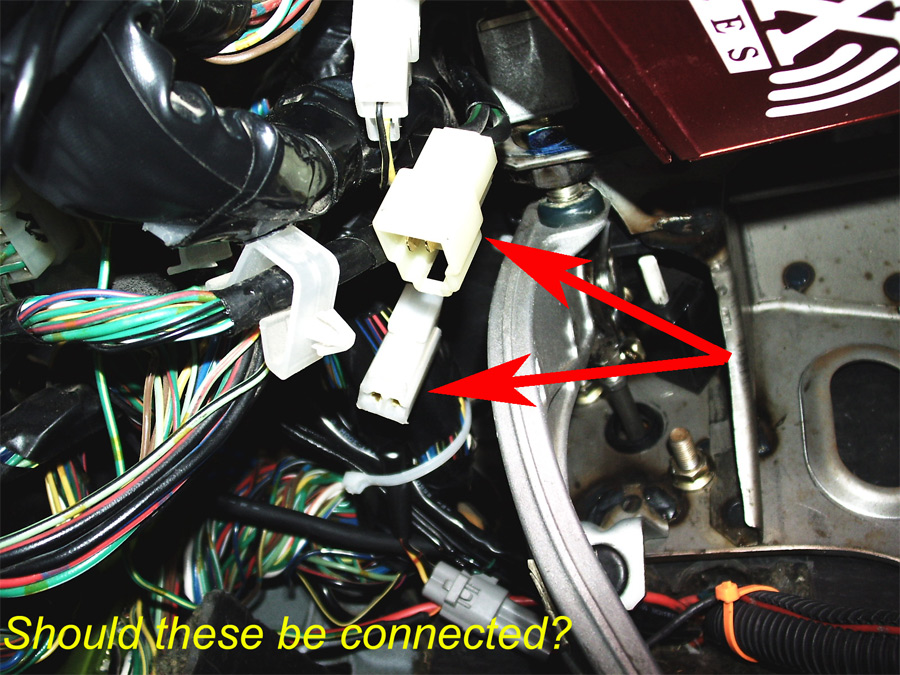

Looking under the dash where I was working, I noticed two connectors; one male one female. Both are 2 pin and have 16 gauge (or heavier) wire on the pins.
I don't remember unplugging these, but wonder if they should be plugged together, and I just forgot. (btw, I checked the switch on the clutch pedal, and this isn't it, though it's right next to it)
See pic,
THX!!
- k -
I finished installing a PLX gauge system and now the starter won't spin. I can start the car with an external switch, but not with the key.
Looking under the dash where I was working, I noticed two connectors; one male one female. Both are 2 pin and have 16 gauge (or heavier) wire on the pins.
I don't remember unplugging these, but wonder if they should be plugged together, and I just forgot. (btw, I checked the switch on the clutch pedal, and this isn't it, though it's right next to it)
See pic,
THX!!
- k -
#3
24 yrs driving 2nd Gen RX
Thread Starter
Join Date: May 2002
Location: A Mile Closer to God (Denver)
Posts: 525
Likes: 0
Received 0 Likes
on
0 Posts
Nevermind. matched wire colors to the starting/charging diagram in the Haynes and when these two unplugged, it disconnects the B+ from the starter solenoid.
On the male end, they are both B/G, on the female end, they're B/G and B/R.
(looking for memory supplements now...)
- k -
On the male end, they are both B/G, on the female end, they're B/G and B/R.
(looking for memory supplements now...)
- k -
