S5 turbo swap -> vacuum/boost gauge not working

2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.
Sponsored by:

S5 turbo swap -> vacuum/boost gauge not working

Old 09-03-12, 02:03 PM
  #1
not a drifter
10 Year Member
Thread Starter
iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,327
Thanks: 0
Thanked 0 Times in 0 Posts
S5 turbo swap -> vacuum/boost gauge not working

Car - 89 GTU

I have swapped this car to turbo and manual transmission. The car used to be automatic. I am not getting any reading from the vacuum/boost gauge in the stock cluster. I know how much better an aftermarket boost gauge is but want the stock one to work too. I have searched but have not found anything specific to my application.

I am using all USDM S5 (N370) electronics. This includes the ECU, AFM, MAP sensor. The car runs and drives fine. I know I have a good vacuum source connected to the MAP sensor. I have tried the auto and manual trans gauge cluster sub-harnesses. I am using a NA EM harness. From looking at the wiring diagrams, the cluster sub-harnesses look the same from NA to turbo.

Any help would be appreciated. Thanks
87 t-66 is offline
Old 09-03-12, 02:05 PM
  #2
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Thanks: 0
Thanked 12 Times in 11 Posts
the n/a cluster had no pinout for a boost gauge, you will have to move wires around or run a new one to the junction behind the passenger kick panel.
RotaryEvolution is offline
Old 09-03-12, 02:11 PM
  #3
not a drifter
10 Year Member
Thread Starter
iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,327
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RotaryEvolution View Post
the n/a cluster had no pinout for a boost gauge, you will have to move wires around or run a new one to the junction behind the passenger kick panel.
can you elaborate? i was hoping i could move a wire or two around from the now unused volt gauge wiring.
87 t-66 is offline
Old 09-03-12, 02:23 PM
  #4
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Thanks: 0
Thanked 12 Times in 11 Posts
maybe satch can help with the wire pinouts, it's been a few years and i only have experience with the S4 on a turbo swap with cluster.

there will be a wire from the boost sensor to that kick panel connector, the wiring for the round connectors at the cluster have a few different wires, one now leads to the boost gauge so will need that moved around to meet up with the wire at the kick panel connector.

all you need to do is transpose the n/a cluster connector over the turbo one, and then the XD-1/2(i forget which) at the kick panel which i believe originally was the alternator charge wire on the n/a harness, the turbo harness has different pin locations so the wires will be slightly different if you used the turbo harness and it should be in the correct location already.

cliffnotes: go into the manual and pull up the wiring diagram, pull the diagram of the cluster for n/a and turbo and the engine harness to front main harness(dash harness) for n/a and turbo. compare the 2 at both ends and move the wires around or make a new one.

Last edited by RotaryEvolution; 09-03-12 at 02:27 PM.
RotaryEvolution is offline
Old 09-03-12, 02:36 PM
  #5
Moderator
5 Year Member

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Thanked 2 Times in 2 Posts
Pin 2H at your ECU should have a Green/Yellow wire. This wire needs to be tapped into and run towards the Boost Gauge.
satch is offline
Old 09-03-12, 02:54 PM
  #6
not a drifter
10 Year Member
Thread Starter
iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,327
Thanks: 0
Thanked 0 Times in 0 Posts
perfect. is there a way to reuse the stock wiring or do i need to run a new wire?

also, when i look at the diagram for the turbo gauge cluster, it shows the volt gauge and no pressure gauge.

87 t-66 is offline
Old 09-03-12, 03:01 PM
  #7
Moderator
5 Year Member

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Thanked 2 Times in 2 Posts
I use the same site for diagrams so this diagram is not that much help since it shows a volt gauge for both NA and turbo which we know is incorrect. The wire that you tap into will be new at pin 2H but it can be run to where the original alternator wire is as Karack mentioned and then picked up from there as it then runs to the gauge.

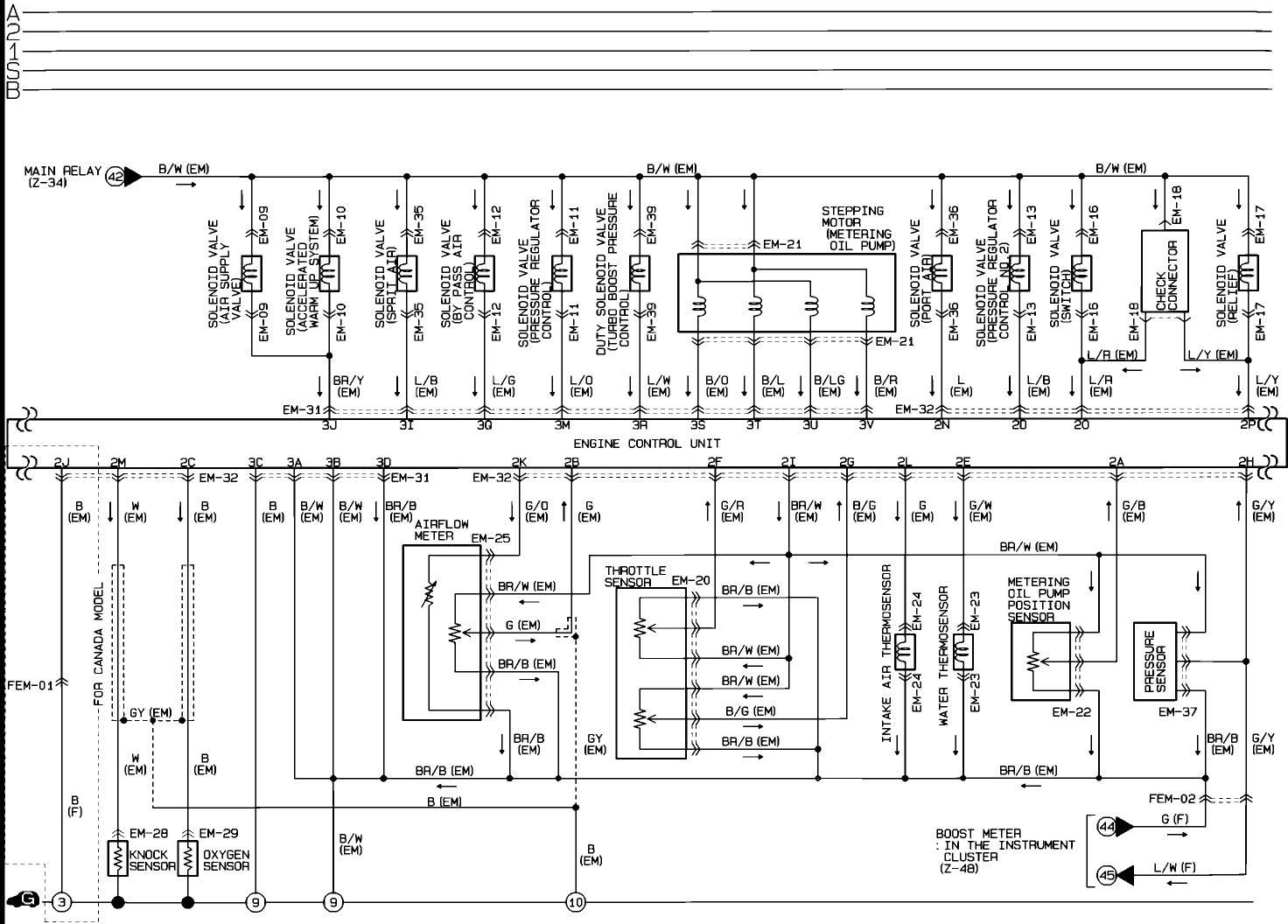

Correct S5 Turbo diagram in this link.

https://www.rx7club.com/attachments/...olsystem12-jpg

Last edited by satch; 09-03-12 at 03:06 PM.
satch is offline
Old 09-03-12, 03:06 PM
  #8
not a drifter
10 Year Member
Thread Starter
iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,327
Thanks: 0
Thanked 0 Times in 0 Posts
i can run the wire from 2H directly to the back of the cluster right? to the BR/R wire?
87 t-66 is offline
Old 09-03-12, 03:28 PM
  #9
Moderator
5 Year Member

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Thanked 2 Times in 2 Posts
Originally Posted by 87 t-66 View Post
i can run the wire from 2H directly to the back of the cluster right? to the BR/R wire?
That makes some sense but if you could find an accurate diagram to compare NA from turbo it would help you know whether your above statement is correct.
satch is offline
Old 09-03-12, 03:34 PM
  #10
not a drifter
10 Year Member
Thread Starter
iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,327
Thanks: 0
Thanked 0 Times in 0 Posts
i think it's the only diagram. at least that i've seen. i'd rather tap into the cluster wiring than the alternator wiring. it would also be a much shorter wire that would need ran. as far as i know, the only difference in clusters is the volt/pressure gauge.
87 t-66 is offline
Old 09-03-12, 06:14 PM
  #11
not a drifter
10 Year Member
Thread Starter
iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,327
Thanks: 0
Thanked 0 Times in 0 Posts
what wire at the alternator harness would i need to tap into if i didnt use the gauge cluster wiring?
87 t-66 is offline
Old 02-16-15, 01:59 AM
  #12
infini III
5 Year Member

iericc.l's Avatar

Join Date: Apr 2007
Location: NYC
Posts: 150
Thanks: 0
Thanked 0 Times in 0 Posts
Hey I have had my car for a while and always wanted the stock one to some what work. I saw your thread about it and was wondering if you ever figured it out. If you did it would be great if you could let me know what you did. Thanks.
iericc.l is offline
