marclong

iTrader: (1)

Looking for an answer to my issue. I recently had my 89 vert engine rebuilt, while in the care of the builder I had him install another manual 5 speed transmission he had as mine had some shifting issues. The transmission now shifts much better in all gears except fifth. I plan on replacing the synchro and have received the part from Ray Crowe already. My question is that with this transmission installed my shifter sits just an inch or so forward than before. Not a big deal just strains the leather boot a tad. I have searched extensively for a reason on why the shifter sits further forward. I have looked at it and its seems to match all the pictures of the s5 tranny. My main concern is that I have the proper syncronizer when I break the gearbox open. If anyone has an idea I would appreciate it. Thx

marclong

iTrader: (1)

Anyone?

RotaryRocket88

iTrader: (7)

All FCs have the same shifter location. Maybe there is something funny with the engine or transmission mounting situation? Stock mounts and everything bolted up correctly?

marclong

iTrader: (1)

Yes the rear mount is stock and looks fine. I think someone at some time maybe did some work to the shift lever arm and maybe used an older on that is shorter. Will take pictures when its out and see if anyone can identify the problem.

Black Knight RX7 FC3S

iTrader: (7)

its probably a short shifter of sort.

marclong

iTrader: (1)

Its not short but actually sits further forward. As in towards the ashtray.

RotaryEvolution

iTrader: (30)

should be no reason why the shifter sits forward.

gofastrxy

its a trans out of a fb. i used to run fc trans in my fbs and just change the tailshaft housing. you bought the wrong trans.

marclong

iTrader: (1)

But it has the ribs on the bell housing and the y bracket rear mount.. Could it be an fc bellhousing and gears with just an fb shift tube?

marclong

iTrader: (1)

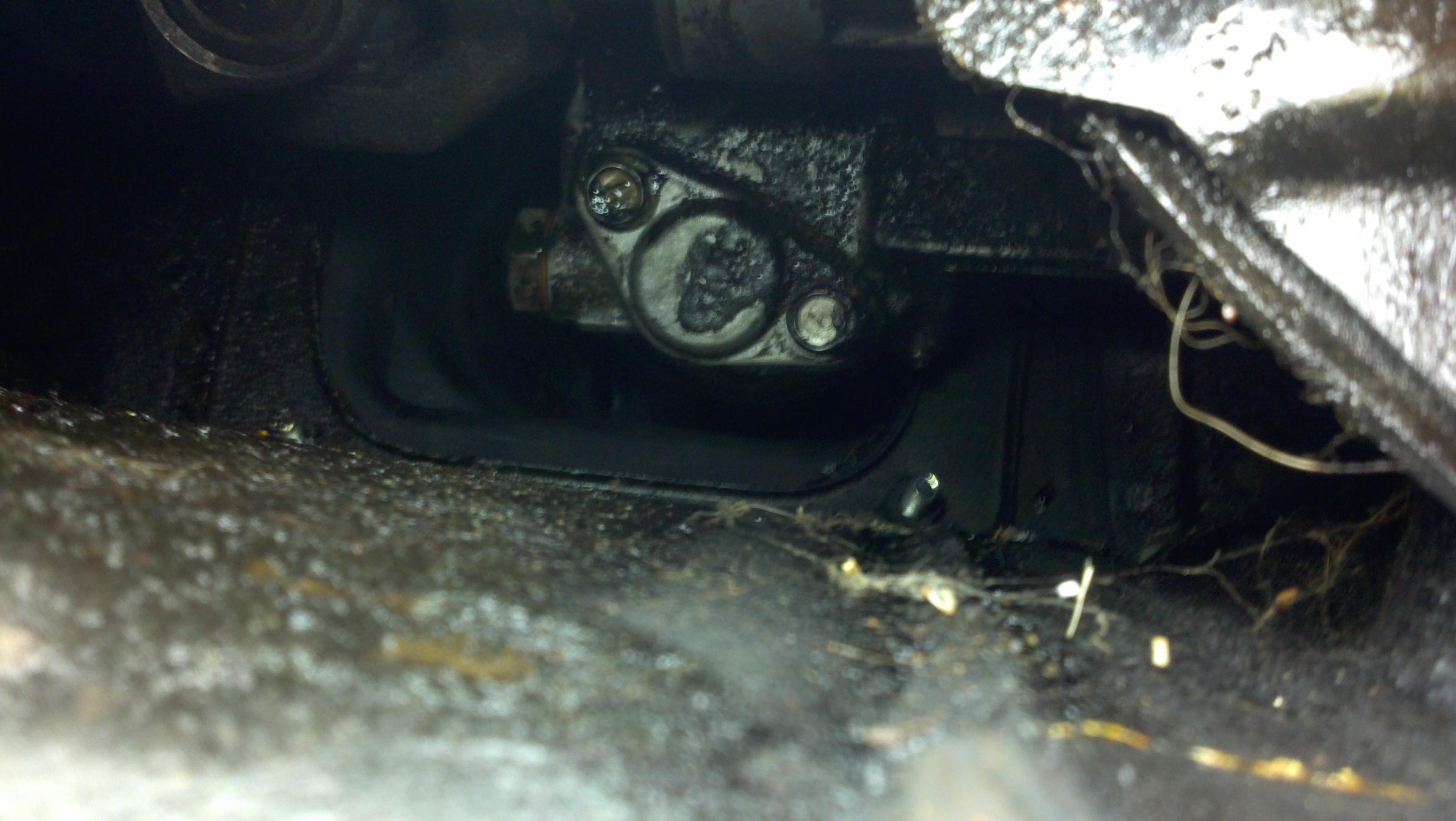

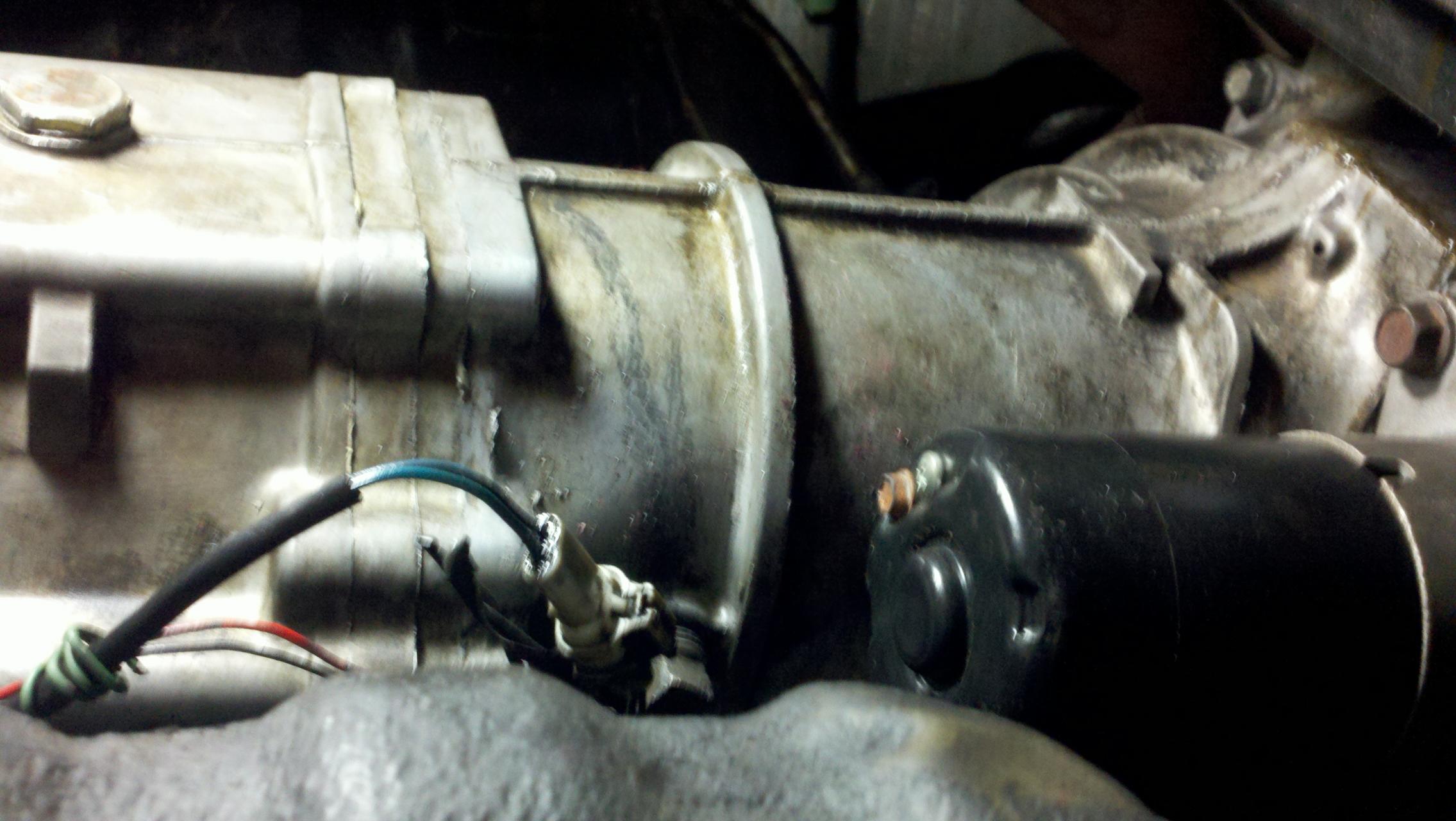

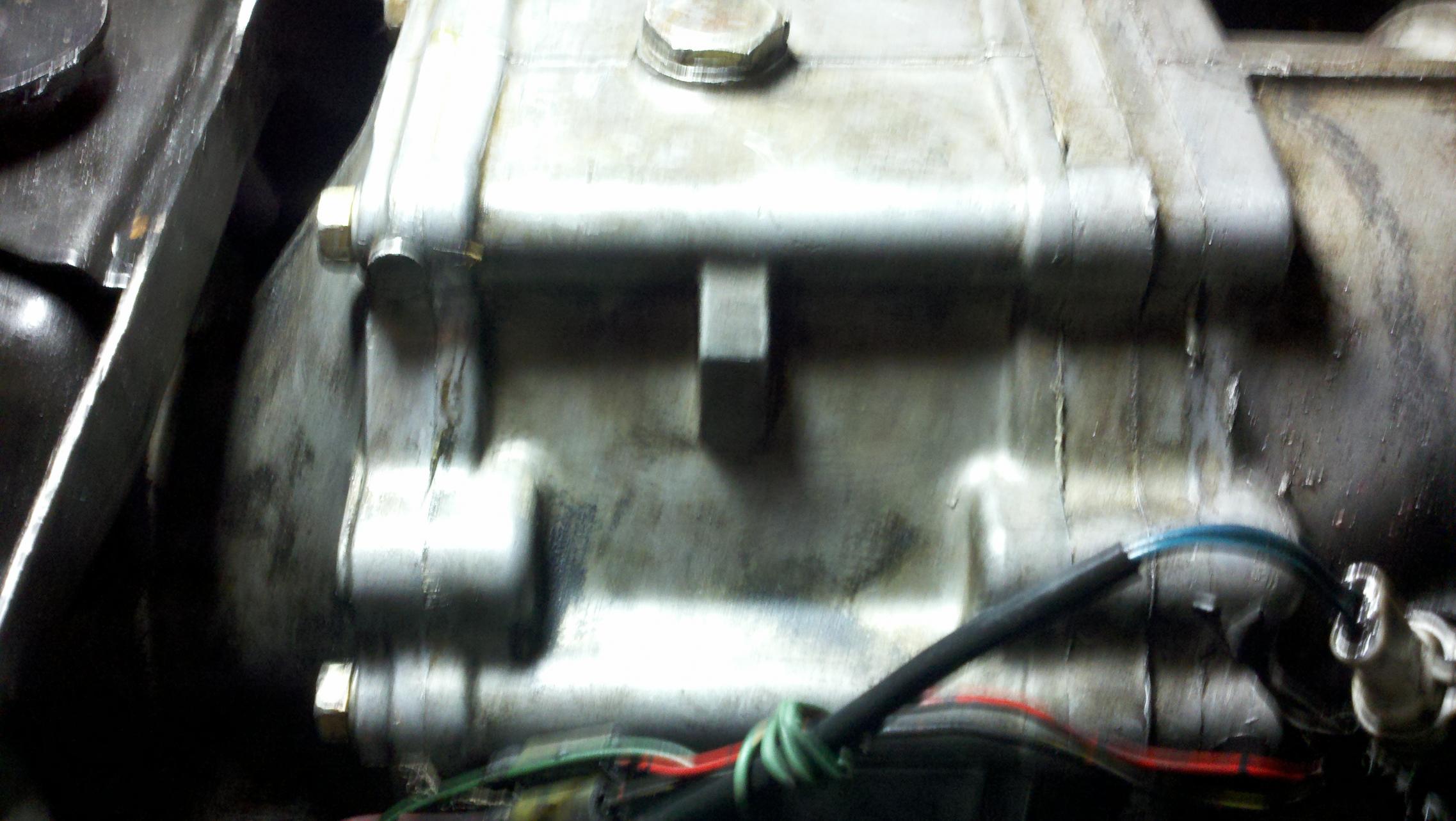

Here is some pictures . It does not have the smooth case like the fb, and it does have the y style bracket that I thought was specific to the s5 tailhousing. Maybe you can tell more from the pics.

marclong

iTrader: (1)

Anyone tell by the pics? Need to know if my sycronizer is right before friday.

hypestar1983

lets go with the obvious guys.... it doesnt have 5th gear! if you messed your syncro up that would cause it to be in another location, at this point i would be more concerned with your tranny as a a whole rather than just the fifth gear. The two trannys i've had go bad with your shifting location problem were syncros going bad and losing metal and i knew which they were cause those were the gears that shifted into abnormal places.
