s5 n/a timing marks
01-09-08, 03:50 PM
#1
707
Thread Starter
Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes
on
0 Posts
s5 n/a timing marks
i just put back on the front hub theres four timming marks on the pulley. what is TDC? and what does TDC look like on the CAS. i know this is very easy just never done it and its very important thanks for your time and enegry
01-09-08, 06:46 PM
#2
707
Thread Starter
Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes
on
0 Posts
the cas has an arrow and you line that up with the dot.
what postion should the hub be in when installing the cas. i still have the red and yellow marks visable on the hub.
theres a key when u install the hub so it cant go on wrong.
what postion should the hub be in when installing the cas. i still have the red and yellow marks visable on the hub.
theres a key when u install the hub so it cant go on wrong.
01-09-08, 07:32 PM
#4
707
Thread Starter
Join Date: May 2004
Location: Santa Rosa Ca
Posts: 854
Likes: 0
Received 0 Likes
on
0 Posts
align the matching mark on center on the CAS housing and driven gear

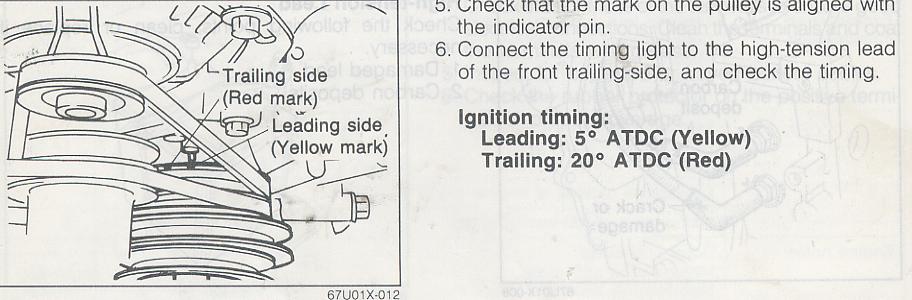

check that the eccentric shaft pulley is set to the leading mark (yellow mark) install the (CAS) sensor and lock bolt 69-95 in-lb
check that the eccentric shaft pulley is set to the leading mark (yellow mark) install the (CAS) sensor and lock bolt 69-95 in-lb
01-09-08, 08:30 PM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
IF it's a pulley with four marks, then it's an aftermarket pulley made by????? RacingBeat? Sold by Mazdatrix?Who knows.
But if you do a search on this forum, you'll find Hits that might lead you to the answer.
Like this hit: https://www.rx7club.com/forum/showth...r+pulley+marks
Or maybe this: https://www.rx7club.com/forum/showth...rks+racingbeat
Or if your just interested in an explanation on how to set timing , search for Timing and the name pfsantos. LIke in these threads: https://www.rx7club.com/forum/search...archid=4542632
But if you do a search on this forum, you'll find Hits that might lead you to the answer.
Like this hit: https://www.rx7club.com/forum/showth...r+pulley+marks
Or maybe this: https://www.rx7club.com/forum/showth...rks+racingbeat
Or if your just interested in an explanation on how to set timing , search for Timing and the name pfsantos. LIke in these threads: https://www.rx7club.com/forum/search...archid=4542632
Last edited by HAILERS; 01-09-08 at 08:58 PM.
01-09-08, 09:12 PM
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
http://www.racingbeat.com/FRmazda2.htm
Go there, then on the left of that site, select COOLING SYSTEM, then select Aluminum Main Pulleys.
Timing marks are provided at 10¡, ATC (0¡), and at 10 degrees and 20 degrees BTC.
Go there, then on the left of that site, select COOLING SYSTEM, then select Aluminum Main Pulleys.
Timing marks are provided at 10¡, ATC (0¡), and at 10 degrees and 20 degrees BTC.
Last edited by HAILERS; 01-09-08 at 09:17 PM.
Trending Topics
01-16-08, 04:09 PM
#8
Full Member
Join Date: Oct 2005
Location: England
Posts: 157
Likes: 0
Received 0 Likes
on
0 Posts
I have managed to clean the colour paint of my front pulley when i rebuild the engine, can someone tell me which one was yellow and which one was red please?
if standing in front of the engine looking at the front pulley there is a left hand notch and a right hand notch, does any one have the colours to hand?
if standing in front of the engine looking at the front pulley there is a left hand notch and a right hand notch, does any one have the colours to hand?
