S5 Injector delete?
12-15-08, 01:51 AM
#1
Play Well
Thread Starter
iTrader: (6)
Join Date: May 2005
Location: Green Bay, WI
Posts: 2,424
Likes: 0
Received 0 Likes
on
0 Posts
S5 Injector delete?
I have a problem: more injectors and rails than I can see room for. Three secondary and two primary, maybe an aftermarket secondary, also. And like a dozen injectors of different sizes.
So first, is there any mod involving the removal/deletion of injectors? I sure hope not, but I just can't find where the primaries go. Everything I try, seems to not work out.
How do the injectors hook up to the intake system?
Motor and manifolds are all S5 turbo.
So first, is there any mod involving the removal/deletion of injectors? I sure hope not, but I just can't find where the primaries go. Everything I try, seems to not work out.
How do the injectors hook up to the intake system?
Motor and manifolds are all S5 turbo.
12-15-08, 02:29 AM
#3
Play Well
Thread Starter
iTrader: (6)
Join Date: May 2005
Location: Green Bay, WI
Posts: 2,424
Likes: 0
Received 0 Likes
on
0 Posts
Rule 1: Consult FSM
Rule 2: Search
Rule 3: Consult FSM
Final Option: Ask Question.
The primary injector thing was really screwing me up... lack of sleep doesn't help. I don't have it all together, so how does the injector hook up to the... looks like oil injector?
Rule 2: Search
Rule 3: Consult FSM
Final Option: Ask Question.
The primary injector thing was really screwing me up... lack of sleep doesn't help. I don't have it all together, so how does the injector hook up to the... looks like oil injector?
12-15-08, 03:04 AM
#4
What are you talking about?
2 secondaries seat into the LIM, 2 primaries seat into the middle iron. Take a pic of what you're working with, maybe you've got the primaries in the block sealed off or an old school center iron, or something else weird.
2 secondaries seat into the LIM, 2 primaries seat into the middle iron. Take a pic of what you're working with, maybe you've got the primaries in the block sealed off or an old school center iron, or something else weird.
Last edited by Stanello; 12-15-08 at 03:07 AM.
12-15-08, 09:48 AM
#7
The Doctor
iTrader: (1)
Join Date: Apr 2008
Location: Cedar Rapids, IA
Posts: 1,185
Likes: 0
Received 0 Likes
on
0 Posts
Take pictures what your working with please, the injectors don't go into where the holes for the OMP are. Your going to have some serious trouble trying to fit them in there...
Theirs 2 holes not even 5mm apart from each other where the 2 primary injectors go on the center iron. Just hook the secondaries into where they go on the LIM and use that to line it up when putting it in, it'll go into the spot its suppose to on its own if you line up the rest of the bolts for the LIM.

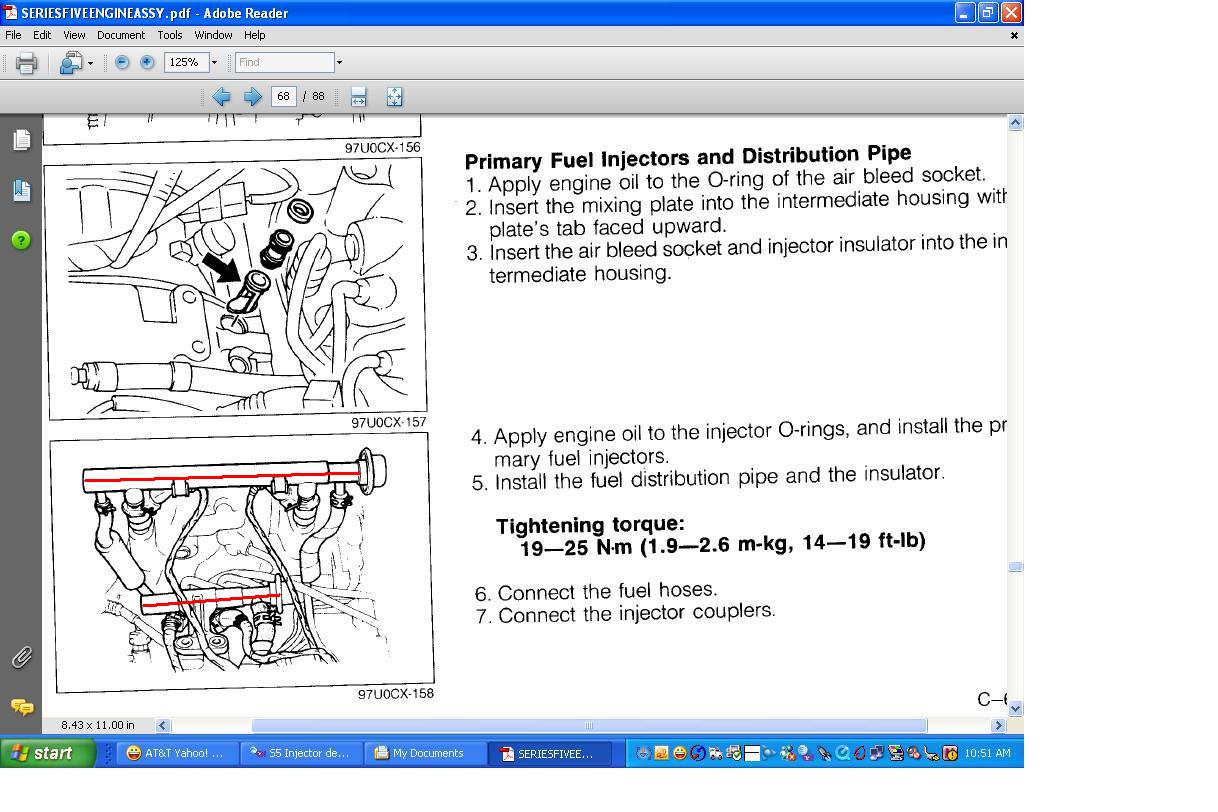

Primary injector holes look like this:
EDIT: ignore the motor itself, i know its blown. Just being used as a reference.
Last edited by g14novak; 12-15-08 at 10:02 AM.
Trending Topics
12-15-08, 01:35 PM
#11
What the **** is going on in here?
There should only be 4 fuel injectors..........no one has any idea why there's "like a dozen injectors of different sizes" because there should only be four, we need pictures to understand what you're talking about otherwise this is a complete waste of time.
There should only be 4 fuel injectors..........no one has any idea why there's "like a dozen injectors of different sizes" because there should only be four, we need pictures to understand what you're talking about otherwise this is a complete waste of time.
12-15-08, 01:49 PM
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
What the **** is going on in here?
There should only be 4 fuel injectors..........no one has any idea why there's "like a dozen injectors of different sizes" because there should only be four, we need pictures to understand what you're talking about otherwise this is a complete waste of time.
There should only be 4 fuel injectors..........no one has any idea why there's "like a dozen injectors of different sizes" because there should only be four, we need pictures to understand what you're talking about otherwise this is a complete waste of time.
He's a FIRST GENERATOR messing around with SECOND GEN stuff. See this thread: https://www.rx7club.com/showthread.p...18#post8763918
Sorta like he's been working on generators and now want's to work on alternators. Or going from points and distributors to Crank angle sensors. Or going from buggy whips to ???????? some S/M broad like Mandy, using a whip on him. If that makes no sense, then look at this link so it'll make sense: http://www.youtube.com/watch?v=EjvMoZR7lXY
Last edited by HAILERS; 12-15-08 at 01:58 PM.
12-15-08, 02:00 PM
#13
Play Well
Thread Starter
iTrader: (6)
Join Date: May 2005
Location: Green Bay, WI
Posts: 2,424
Likes: 0
Received 0 Likes
on
0 Posts
What the **** is going on in here?
There should only be 4 fuel injectors..........no one has any idea why there's "like a dozen injectors of different sizes" because there should only be four, we need pictures to understand what you're talking about otherwise this is a complete waste of time.
There should only be 4 fuel injectors..........no one has any idea why there's "like a dozen injectors of different sizes" because there should only be four, we need pictures to understand what you're talking about otherwise this is a complete waste of time.
And It's looking like I only have one FC primary fuel rail and three FC secondary rails, as well as four sets of secondary injectors.... I have B2200 pieces in there as well.
Last edited by JSmith0101; 12-15-08 at 02:10 PM.
12-15-08, 04:52 PM
#19
stock primary injectors and secondary injectors are the same size...
the long rail is the secondary rail, it has 2 injectors, the short one is the primary, it has 2 injectors.
it's not really rocket science, just look at the fuel and emissions section of the FSM, there are pictures.
the long rail is the secondary rail, it has 2 injectors, the short one is the primary, it has 2 injectors.
it's not really rocket science, just look at the fuel and emissions section of the FSM, there are pictures.
12-16-08, 07:12 AM
#21
Play Well
Thread Starter
iTrader: (6)
Join Date: May 2005
Location: Green Bay, WI
Posts: 2,424
Likes: 0
Received 0 Likes
on
0 Posts
I feel a bit dumber everytime. I see this thread.
And I have known since the start, where the secondaries were. The primaries freaked my drunk *** out.
KIDS: DO NOT DRINK AND INTERNET. ONLY BAD THINGS WILL HAPPEN.
